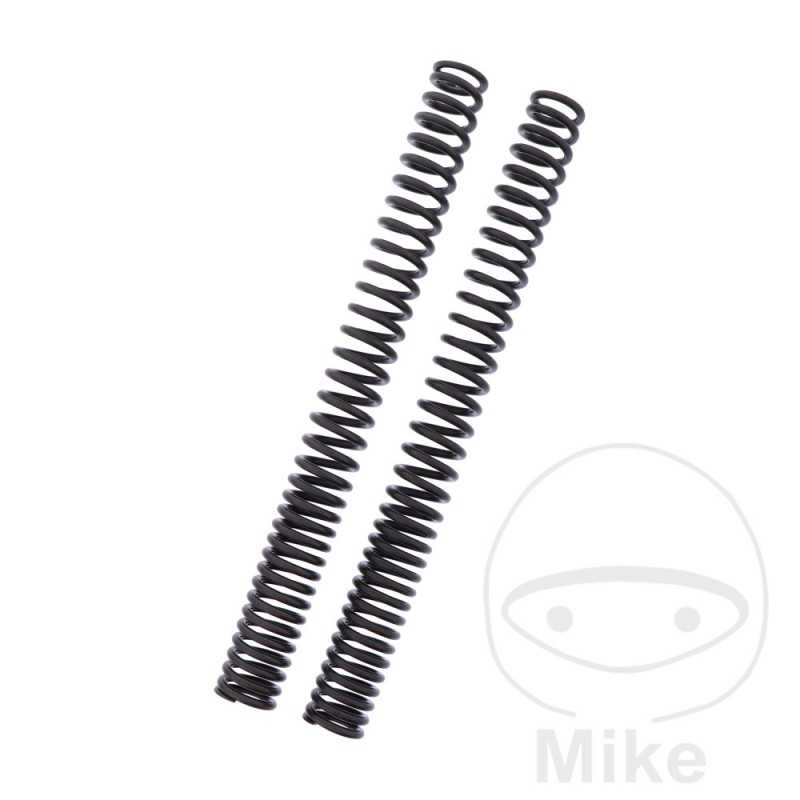

YSS SUSPENSION Progressive fork spring 743.06.85

YSS Progressive Wire fork springs with a firmer design than stock.

YSS fork springs are made of high quality silicon spring steel. This allows the thickness of the wire to be reduced, which makes the spring more active and thinner, but at the same time effectively prevents twisting of the spring.

To minimize noise and improve oil flow in the fork, the springs are fully polished and ground on the top and bottom.

The scope of delivery includes 2 springs for a complete conversion of the fork.
SPRING TYPE: PROGRESSIVE
Length : 365mm
DIAMETER 1: 35.5MM
HARDNESS 1: 6.5 N/MM
HARDNESS 2: 10.5 N/MM
LEFT AIR CHAMBER: 135 MM
RIGHT AIR CHAMBER: 135 MM
RECOMMENDED VISCOSITY: 20W


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Honda CB 500 F 48 CV, 35 kw 2cil. PC45A D Bastidores: MLH PC45A-D5000001-MLH PC45A-D5999999 2013
Honda CB 500 F 48 CV, 35 kw 2cil. PC45A E Bastidores: MLH PC45A-E5100001-MLH PC45A-E5199999 2014
Honda CB 500 F 48 CV, 35 kw 2cil. PC45A F Bastidores: MLH PC45A-F5200001-- 2015
Honda CB 500 FA ABS 48 CV, 35 kw 2cil. PC45B D Bastidores: MLH PC45B-D5000001-MLH PC45B-D5999999 2013
Honda CB 500 FA ABS 48 CV, 35 kw 2cil. PC45B E Bastidores: MLH PC45B-E5100001-MLH PC45B-E5199999 2014
Honda CB 500 FA ABS 48 CV, 35 kw 2cil. PC45B F Bastidores: MLH PC45B-F5200001-- 2015
Honda CB 500 FA ABS 48 CV, 35 kw 2cil. PC45B G Bastidores: MLH PC45B-G5300001-MLH PC45B-G5399999 2016
Honda CB 500 XA ABS 48 CV, 35 kw 2cil. PC46B E Bastidores: MLH PC46B-E5100001-MLH PC46B-E5199999 2014
