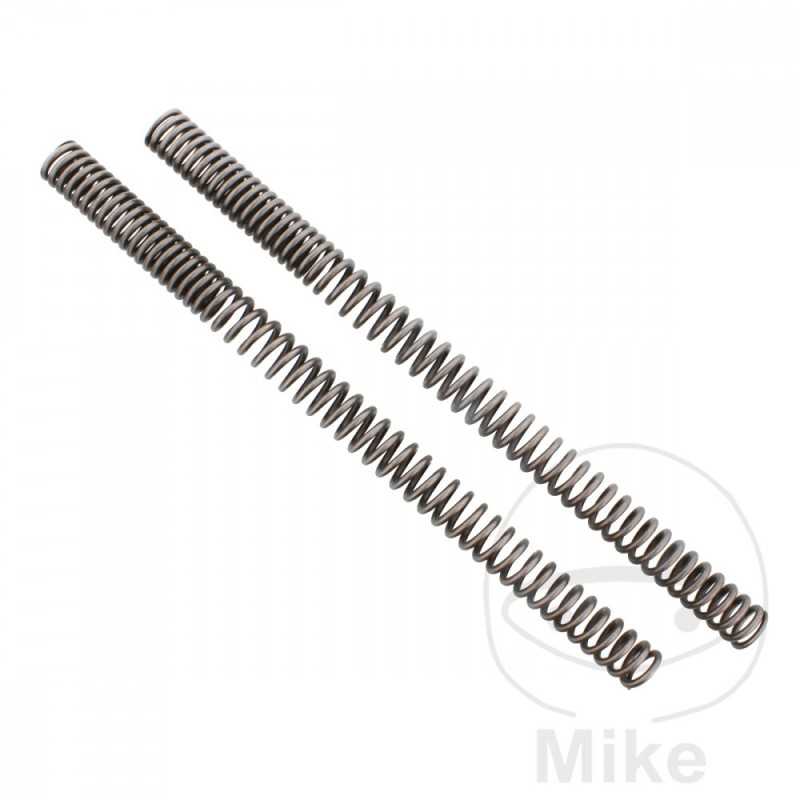

YSS SUSPENSION Progressive fork spring 743.02.87

ATTENTION: YSS only supplies 2 springs here, although 4 are installed on the motorcycle.

Please remove the 4 springs and replace them with the 2 YSS springs.

The difference in length between the original combination spring and the YSS spring is due to technical reasons.

YSS Progressive Wire fork springs with a firmer design than stock.

YSS fork springs are made of high quality silicon spring steel. This allows the thickness of the wire to be reduced, which makes the spring more active and thinner, but at the same time effectively prevents twisting of the spring.

To minimize noise and improve oil flow in the fork, the springs are fully polished and ground on the top and bottom.

The scope of delivery includes 2 springs for a complete conversion of the fork.
SPRING TYPE: PROGRESSIVE
LENGTH: 520MM
DIAMETER 1: 34MM
HARDNESS 1: 6.3 N/MM
HARDNESS 2: 10.1 N/MM
LEFT AIR CHAMBER: 160 MM
RIGHT AIR CHAMBER: 160 MM
RECOMMENDED VISCOSITY: 10W


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Honda GL 1200 A Goldwing 94 CV, 69 kw 4cil. SC14 E Bastidores: SC14-6000496-SC14-6001985 1984
Honda GL 1200 A Goldwing 94 CV, 69 kw 4cil. SC14 F Bastidores: --- 1985
Honda GL 1200 A Goldwing 94 CV, 69 kw 4cil. SC14 G Bastidores: SC14-6200196-SC14-6201148 1986
Honda GL 1200 D Goldwing 94 CV, 69 kw 4cil. SC14 E Bastidores: SC14-4000556-SC14-4002030 1984
Honda GL 1200 D Goldwing 94 CV, 69 kw 4cil. SC14 F Bastidores: SC14-4100135-SC14-4100819 1985-1986
Honda GL 1200 D Goldwing 94 CV, 69 kw 4cil. SC14 H Bastidores: SC14-4300001-SC14-4399999 1987-1988
Honda GL 1500 SE Goldwing 100 CV, 74 kw 6cil. SC22 M Bastidores: SC22-4000631-SC22-4000880 1991
Honda GL 1500 SE Goldwing 100 CV, 74 kw 6cil. SC22 N Bastidores: SC22-4100340-- 1992
Honda GL 1500 SE Goldwing 98 CV, 72 kw 6cil. SC22 P Bastidores: SC22-4200001-- 1993
Honda GL 1500 SE Goldwing 98 CV, 72 kw 6cil. SC22 R Bastidores: SC22-4300001-- 1994
Honda GL 1500 SE Goldwing 98 CV, 72 kw 6cil. SC22 S Bastidores: SC22-4400001-- 1995
