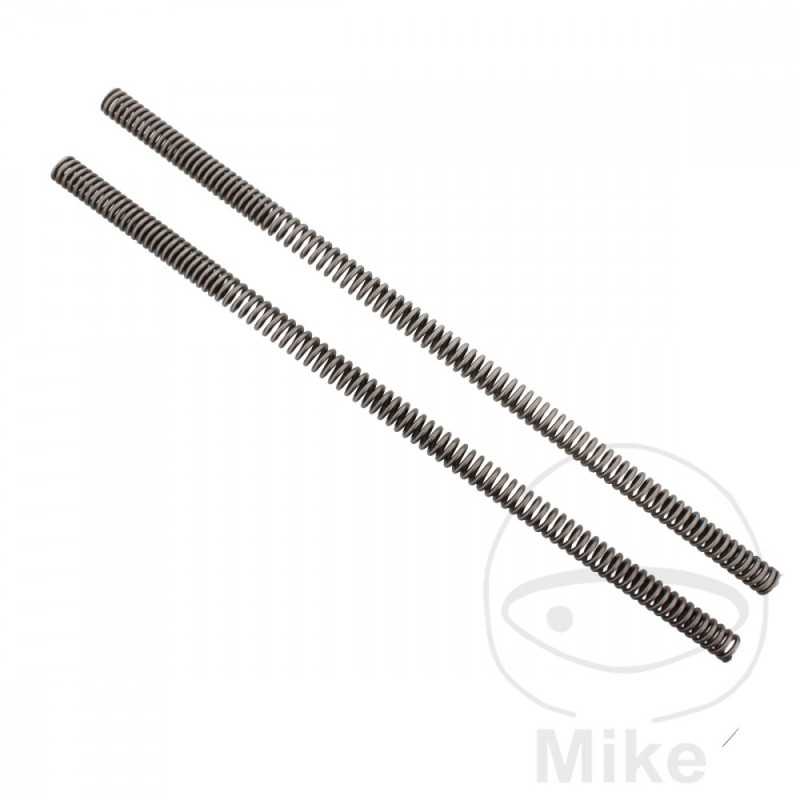

YSS SUSPENSION Progressive fork spring 743.02.84

YSS Progressive Wire fork springs with a firmer design than stock.

YSS fork springs are made of high quality silicon spring steel. This allows the thickness of the wire to be reduced, which makes the spring more active and thinner, but at the same time effectively prevents twisting of the spring.

To minimize noise and improve oil flow in the fork, the springs are fully polished and ground on the top and bottom.

2 springs are included for a complete fork conversion.
SPRING TYPE: PROGRESSIVE
LENGTH: 570MM
DIAMETER 1: 22MM
HARDNESS 1: 5 N/MM
HARDNESS 2: 7.1 N/MM
LEFT AIR CHAMBER: 160 MM
RIGHT AIR CHAMBER: 160 MM
RECOMMENDED VISCOSITY: 10W


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Honda CX 500 27 CV, 20 kw 2cil. CX500 Bastidores: CX500-3000006-CX500-3004905 1977-1979
Honda CX 500 27 CV, 20 kw 2cil. CX500 A Bastidores: CX500-3100004-CX500-3199999 1980
Honda CX 500 27 CV, 20 kw 2cil. CX500 B Bastidores: CX500-3200001-CX500-3299999 1981
Honda CX 500 27 CV, 20 kw 2cil. CX500 C Bastidores: CX500-3300001-CX500-3399999 1982-1983
Honda CX 500 50 CV, 37 kw 2cil. CX500 Bastidores: CX500-2003741-CX500-2050959 1977-1979
Honda CX 500 50 CV, 37 kw 2cil. CX500 A Bastidores: CX500-2200890-CX500-2299999 1980
Honda CX 500 50 CV, 37 kw 2cil. CX500 B Bastidores: CX500-2300001-CX500-2399999 1981
Honda CX 500 50 CV, 37 kw 2cil. CX500 C Bastidores: CX500-2400002-CX500-2499999 1982-1983
Honda CX 500 C 27 CV, 20 kw 2cil. PC01 A Bastidores: PC01-3000003-PC01-3099999 1980
Honda CX 500 C 27 CV, 20 kw 2cil. PC01 B Bastidores: PC01-3100001-PC01-3199999 1981
Honda CX 500 C 50 CV, 37 kw 2cil. PC01 A Bastidores: PC01-2116843-PC01-2199999 1980
Honda CX 500 C 50 CV, 37 kw 2cil. PC01 B Bastidores: PC01-2200001-PC01-2299999 1981
Honda CX 500 C Custom 27 CV, 20 kw 2cil. PC01 C Bastidores: PC01-3200001-PC01-3299999 1982-1984
Honda CX 500 C Custom 50 CV, 37 kw 2cil. PC01 C Bastidores: PC01-2300001-PC01-2399999 1982-1984
