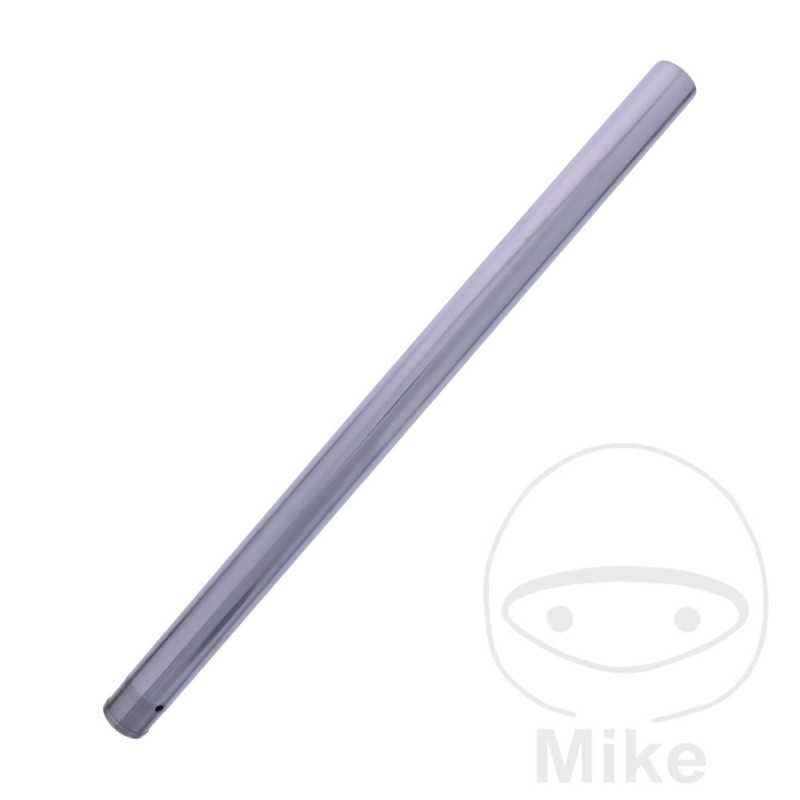

JMP Suspension fork tube 773.19.73

JMP Fork Sleeves

- made with high quality raw material

- special chrome coating with low breaking torque

- each standpipe undergoes a quality inspection before delivery

- manufactured on the most modern CNC machines in Central Europe
INVERTED FORK (UPSIDE DOWN): NO
OUTER DIAMETER: 37MM
INSIDE DIAMETER: 32.1MM
LENGTH: 605MM
TOP CONNECTION: FEMALE FITTING
LOWER TERMINAL: WITHOUT THREAD


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Suzuki GS 500 48 CV, 35 kw 2cil. BK2111 K4 Bastidores: BK2111-101189-BK2111-102834 2004
Suzuki GS 500 48 CV, 35 kw 2cil. BK2111 K5 Bastidores: BK2111-102835-BK2111-105153 2005
Suzuki GS 500 48 CV, 35 kw 2cil. BK2111 K6 Bastidores: BK2111-105154-BK2111-107794 2006
Suzuki GS 500 F 48 CV, 35 kw 2cil. BK2321 K4 Bastidores: BK2321-100001-BK2321-102736 2004
Suzuki GS 500 F 48 CV, 35 kw 2cil. BK2321 K5 Bastidores: BK2321-102737-BK2321-104625 2005
Suzuki GS 500 F 48 CV, 35 kw 2cil. BK2321 K6 Bastidores: BK2321-104626-BK2321-105887 2006
Suzuki GS 500 FH 48 CV, 35 kw 2cil. BK2321 K7 Bastidores: BK2321-105888-- 2007-2008
Suzuki GS 500 FM 34 CV, 25 kw 2cil. BK4221 K7 Bastidores: BK4221-102762-- 2007-2008
Suzuki GS 500 FU 34 CV, 25 kw 2cil. BK4221 K4 Bastidores: BK4221-100001-BK4221-101561 2004
Suzuki GS 500 FU 34 CV, 25 kw 2cil. BK4221 K5 Bastidores: BK4221-101562-BK4221-102101 2005
Suzuki GS 500 FU 34 CV, 25 kw 2cil. BK4221 K6 Bastidores: BK4221-102102-BK4221-102761 2006
Suzuki GS 500 H 48 CV, 35 kw 2cil. BK2111 K7 Bastidores: BK2111-107795-- 2007-2008
Suzuki GS 500 HU 34 CV, 25 kw 2cil. BK4111 K7 Bastidores: BK4111-101441-- 2007-2008
Suzuki GS 500 U 34 CV, 25 kw 2cil. BK4111 K4 Bastidores: BK4111-100001-BK4111-100720 2004
Suzuki GS 500 U 34 CV, 25 kw 2cil. BK4111 K5 Bastidores: BK4111-100721-BK4111-101080 2005
Suzuki GS 500 U 34 CV, 25 kw 2cil. BK4111 K6 Bastidores: BK4111-101081-BK4111-101440 2006
