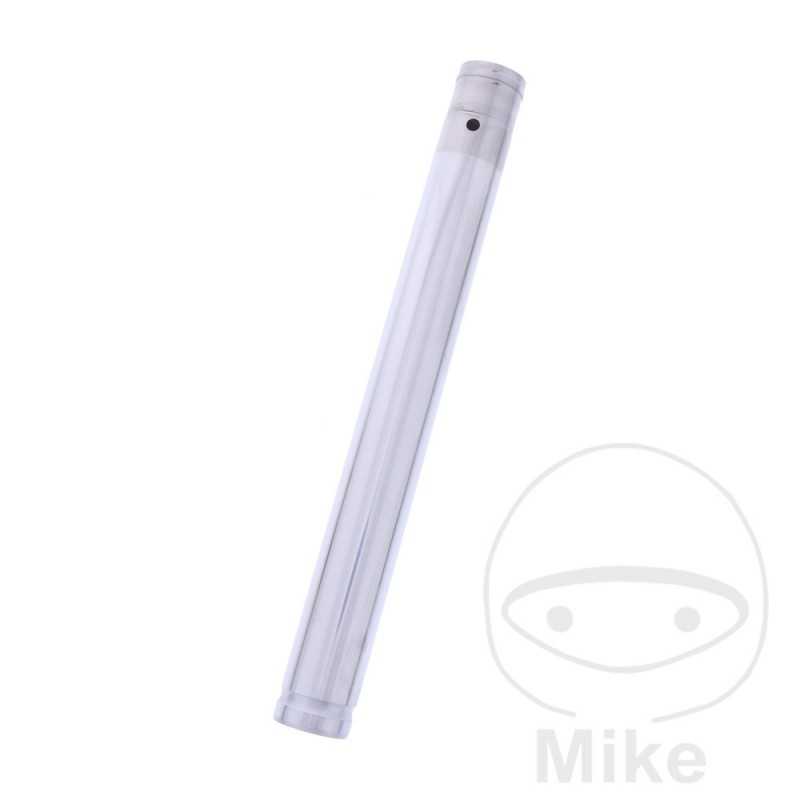

JMP Suspension fork tube 773.16.20

JMP Fork Sleeves

- made with high quality raw material

- special chrome coating with low breaking torque

- each standpipe undergoes a quality inspection before delivery

- manufactured on the most modern CNC machines in Central Europe
INVERTED FORK (UPSIDE DOWN): NO
OUTER DIAMETER: 33MM
INSIDE DIAMETER: 27.9MM
LENGTH: 302MM
TOP CONNECTION: FEMALE FITTING
LOWER TERMINAL: WITHOUT THREAD
THREAD: 29 X 1.0


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Yamaha MT 125 A ABS 15 CV, 11 kw 1cil. RE392 B6G1 Bastidores: RE392 henceforth00060-- 2020
Yamaha MW 125 A Tricity ABS 11 CV, 8,1 kw 1cil. SE787 2CM2 Bastidores: SE787 henceforth68001-- 2015
Yamaha MW 125 A Tricity ABS 11 CV, 8,1 kw 1cil. SE78K 2CMP Bastidores: SE78K-151501-- 2016
Yamaha MW 125 Tricity 11 CV, 8,1 kw 1cil. SE782 2CM1 Bastidores: SE782 henceforth19204-- 2014-2015
Yamaha MW 125 Tricity 11 CV, 8,1 kw 1cil. SE78F 2CMJ Bastidores: SE78F-131901-- 2016
Yamaha MWS 125 A Tricity ABS 12,2 CV, 9,1 kw 1cil. SEC21 BR71 Bastidores: SEC21 henceforth01001-- 2017
Yamaha MWS 125 A Tricity ABS 12,2 CV, 9,1 kw 1cil. SEC21 BR77 Bastidores: SEC21 henceforth02173-- 2018-2019
Yamaha MWS 125 C Tricity MWS125-C CBS 12,2 CV, 9,1 kw 1cil. SEC24 BU51 Bastidores: SEC24 henceforth13201-- 2017
