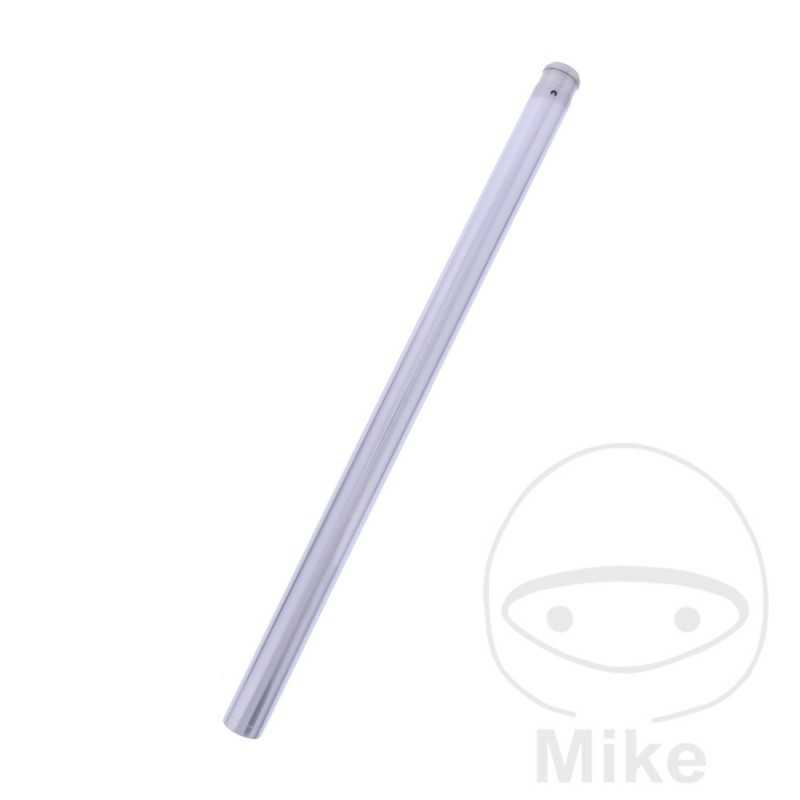

JMP Suspension fork tube 773.16.19

JMP Fork Sleeves

- made with high quality raw material

- special chrome coating with low breaking torque

- each standpipe undergoes a quality inspection before delivery

- manufactured on the most modern CNC machines in Central Europe
INVERTED FORK (UPSIDE DOWN): NO
OUTER DIAMETER: 33MM
INNER DIAMETER: 24MM
LENGTH: 582MM
TOP CONNECTION: FEMALE FITTING
LOWER TERMINAL: WITHOUT THREAD
THREAD: 27 X 1.0


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Honda CX 500 27 CV, 20 kw 2cil. CX500 B Bastidores: CX500-3200001-CX500-3299999 1981
Honda CX 500 27 CV, 20 kw 2cil. CX500 C Bastidores: CX500-3300001-CX500-3399999 1982-1983
Honda CX 500 50 CV, 37 kw 2cil. CX500 B Bastidores: CX500-2300001-CX500-2399999 1981
Honda CX 500 50 CV, 37 kw 2cil. CX500 C Bastidores: CX500-2400002-CX500-2499999 1982-1983
Honda CX 500 C 27 CV, 20 kw 2cil. PC01 B Bastidores: PC01-3100001-PC01-3199999 1981
Honda CX 500 C 50 CV, 37 kw 2cil. PC01 B Bastidores: PC01-2200001-PC01-2299999 1981
Honda CX 500 C Custom 27 CV, 20 kw 2cil. PC01 C Bastidores: PC01-3200001-PC01-3299999 1982-1984
Honda CX 500 C Custom 50 CV, 37 kw 2cil. PC01 C Bastidores: PC01-2300001-PC01-2399999 1982-1984
