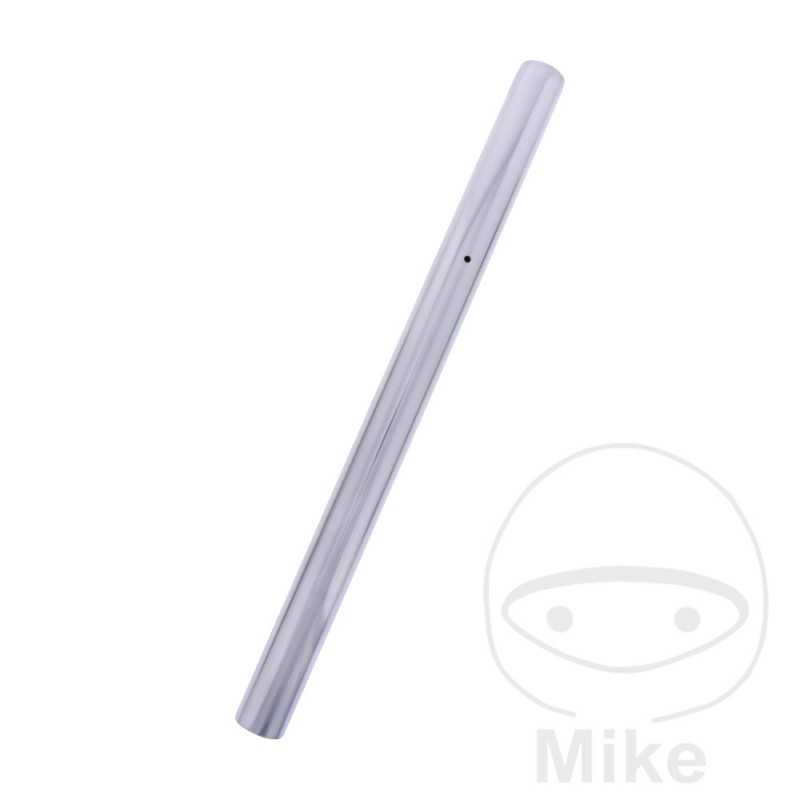

JMP Suspension fork tube 773.16.14

JMP fork tubes

- made with high quality raw material

- special chrome coating with low breaking torque

- each standpipe undergoes a quality inspection before delivery

- manufactured on the most modern CNC machines in Central Europe
INVERTED FORK (UPSIDE DOWN): NO
OUTER DIAMETER: 41MM
INNER DIAMETER: 36MM
LENGTH: 565MM
TOP CONNECTION: WITHOUT THREAD
LOWER TERMINAL: FEMALE FITTING
THREAD: 37 X 1.0


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Aprilia RX 125 4T ABS 15 CV, 11 kw 1cil. KXA00 Bastidores: --- 2018-2019
Aprilia RX 125 4T ABS 15 CV, 11 kw 1cil. KXJA0 Bastidores: --- 2020
Aprilia RX 125 4T ABS Euro5 15 CV, 11 kw 1cil. KTA00 Bastidores: --- 2021
Aprilia RX 50 Factory euro4 3 CV, 2,2 kw 1cil. KKA01 Bastidores: --- 2018-2019
Aprilia RX 50 Factory Euro4 3 CV, 2,2 kw 1cil. KKA01 Bastidores: --- 2020-2021
Aprilia SX 125 4T ABS 15 CV, 11 kw 1cil. KXB00 Bastidores: --- 2018-2020
Aprilia SX 125 4T ABS Euro5 15 CV, 11 kw 1cil. KTB00 Bastidores: --- 2021
Aprilia SX 50 SM Factory euro4 3 CV, 2,2 kw 1cil. KKB03 Bastidores: --- 2018-2019
Aprilia SX 50 SM Factory Euro4 3 CV, 2,2 kw 1cil. KKB03 Bastidores: --- 2020-2021
Derbi Senda 50 SM Limited 1cil. KKB04 Bastidores: --- 2018-2021
Derbi Senda 50 SM Limited Euro4 1cil. KKB04 Bastidores: --- 2022
Derbi Senda 50 SM Racing 1cil. KKB02 Bastidores: --- 2018-2021
Derbi Senda 50 SM Racing Euro4 1cil. KKB02 Bastidores: --- 2022
