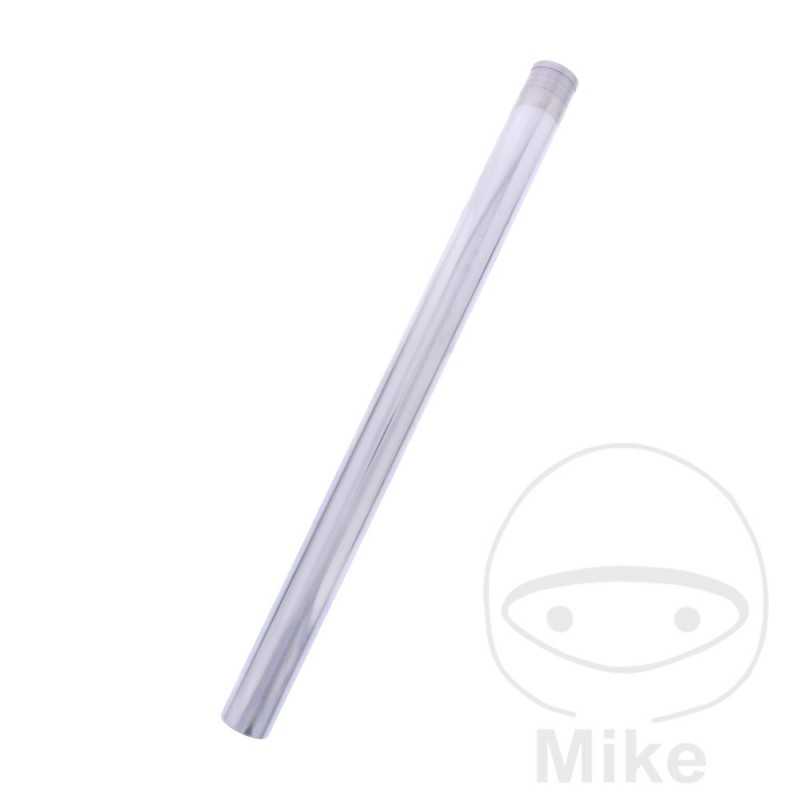

JMP Suspension fork tube 773.16.05

JMP Fork Sleeves

- made with high quality raw material

- special chrome coating with low breaking torque

- each standpipe undergoes a quality inspection before delivery

- manufactured on the most modern CNC machines in Central Europe
INVERTED FORK (UPSIDE DOWN): NO
OUTER DIAMETER: 41MM
INSIDE DIAMETER: 36.25MM
LENGTH: 575MM
TOP CONNECTION: FEMALE FITTING
LOWER TERMINAL: WITHOUT THREAD
THREAD: 38 X 1.0


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Yamaha Tracer 7 700 ABS MTT690 73 CV, 54 kw 2cil. RM301 B4T2 Bastidores: RM301 henceforth07441-- 2021
Yamaha Tracer 7 700 ABS MTT690 73 CV, 54 kw 2cil. RM305 B4T3 Bastidores: RM305 henceforth00174-- 2022
Yamaha Tracer 7 700 ABS MTT690-U 48 CV, 35 kw 2cil. RM311 B5T2 Bastidores: RM311 henceforth02188-- 2021
Yamaha Tracer 7 700 ABS MTT690-U 48 CV, 35 kw 2cil. RM312 B5T3 Bastidores: RM312 henceforth00110-- 2022
Yamaha Tracer 7 700 GT ABS MTT690 73 CV, 54 kw 2cil. RM301 B4T2 Bastidores: RM301 henceforth07441-- 2021
Yamaha Tracer 7 700 GT ABS MTT690 73 CV, 54 kw 2cil. RM305 B4T3 Bastidores: RM305 henceforth00174-- 2022
Yamaha Tracer 7 700 GT ABS MTT690-U 48 CV, 35 kw 2cil. RM311 B5T2 Bastidores: RM311 henceforth02188-- 2021
Yamaha Tracer 7 700 GT ABS MTT690-U 48 CV, 35 kw 2cil. RM312 B5T3 Bastidores: RM312 henceforth00110-- 2022
Yamaha Tracer 700 ABS MTT690-A 73 CV, 54 kw 2cil. RM301 B4T1 Bastidores: RM301 henceforth00070-- 2020
Yamaha Tracer 700 ABS MTT690-U 48 CV, 35 kw 2cil. RM311 B5T1 Bastidores: RM311 henceforth00101-- 2020
