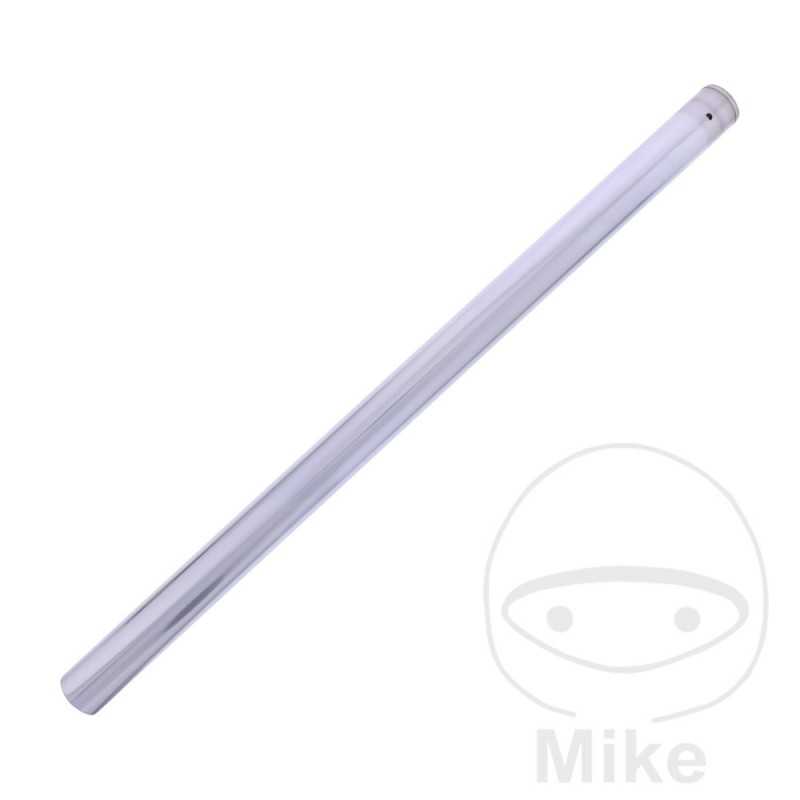

JMP Suspension fork tube 773.15.96

JMP Fork Sleeves

- made with high quality raw material

- special chrome coating with low breaking torque

- each standpipe undergoes a quality inspection before delivery

- manufactured on the most modern CNC machines in Central Europe
INVERTED FORK (UPSIDE DOWN): NO
Diameter, outside: 43 mm
INNER DIAMETER: 38MM
LENGTH: 752MM
TOP CONNECTION: FEMALE FITTING
LOWER TERMINAL: WITHOUT THREAD
THREAD: 40 X 1.0


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Suzuki XF 650 Freewind 48 CV, 35 kw 1cil. AC1112 K1 Bastidores: AC1112 henceforth0114394-- 2001-2002
Suzuki XF 650 Freewind 48 CV, 35 kw 1cil. AC1112 V Bastidores: AC1112 henceforth0100001-AC1112 henceforth0103735 1997
Suzuki XF 650 Freewind 48 CV, 35 kw 1cil. AC1112 W Bastidores: AC1112 henceforth0103736-AC1112 henceforth0109546 1998
Suzuki XF 650 Freewind 48 CV, 35 kw 1cil. AC1112 X Bastidores: AC1112 henceforth0109547-AC1112 henceforth0112016 1999
Suzuki XF 650 Freewind 48 CV, 35 kw 1cil. AC1112 Y Bastidores: AC1112 henceforth0112017-AC1112 henceforth0114393 2000
Suzuki XF 650 U Freewind 34 CV, 25 kw 1cil. AC2112 K1 Bastidores: AC2112 henceforth0101790-- 2001-2002
Suzuki XF 650 U Freewind 34 CV, 25 kw 1cil. AC2112 V Bastidores: AC2112 henceforth0100001-AC2112 henceforth0104112 1997
Suzuki XF 650 U Freewind 34 CV, 25 kw 1cil. AC2112 W Bastidores: AC2112 henceforth0104113-AC2112 henceforth0101379 1998
Suzuki XF 650 U Freewind 34 CV, 25 kw 1cil. AC2112 X Bastidores: AC2112 henceforth0101380-AC2112 henceforth0101639 1999
Suzuki XF 650 U Freewind 34 CV, 25 kw 1cil. AC2112 Y Bastidores: AC2112 henceforth0101640-AC2112 henceforth0101789 2000
