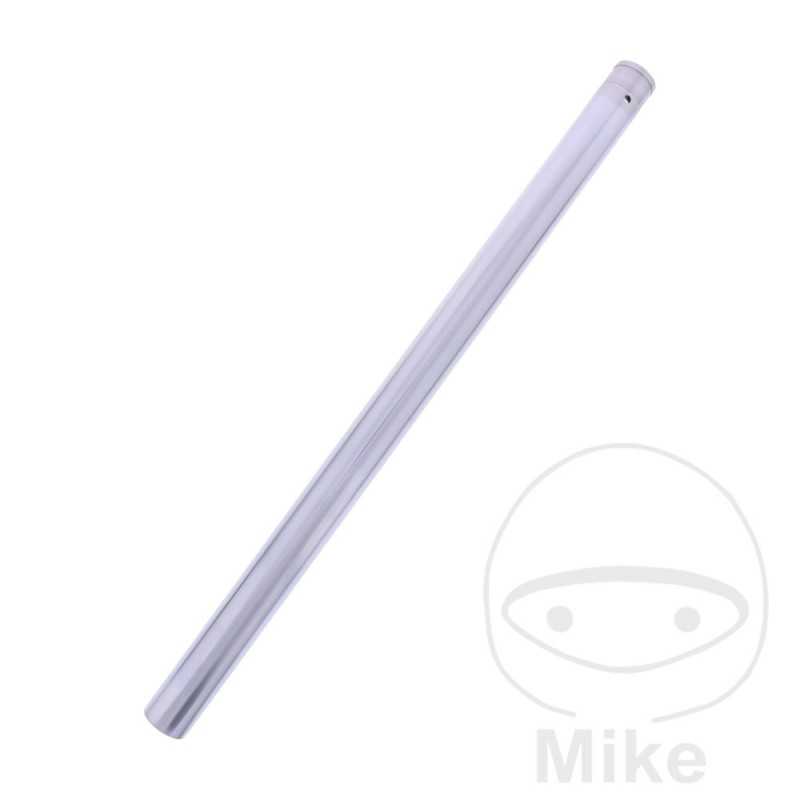

JMP Suspension fork tube 773.15.83

JMP Fork Sleeves

- made with high quality raw material

- special chrome coating with low breaking torque

- each standpipe undergoes a quality inspection before delivery

- manufactured on the most modern CNC machines in Central Europe
INVERTED FORK (UPSIDE DOWN): NO
OUTER DIAMETER: 38MM
INNER DIAMETER: 33MM
LENGTH: 626MM
TOP CONNECTION: FEMALE FITTING
LOWER TERMINAL: WITHOUT THREAD
THREAD: 34 X 1.0


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Suzuki LS 650 F Savage manillar plano 27/31 CV, 20/23 kw 1cil. NP41B J Bastidores: NP41B-101743-NP41B-102334 1988
Suzuki LS 650 F Savage manillar plano 27/31 CV, 20/23 kw 1cil. NP41B K Bastidores: NP41B-102335-NP41B-103137 1989-1990
Suzuki LS 650 P Savage manillar alto 27/31 CV, 20/23 kw 1cil. NP41B J Bastidores: NP41B-101743-NP41B-102334 1988
Suzuki LS 650 P Savage manillar alto 27/31 CV, 20/23 kw 1cil. NP41B K Bastidores: NP41B-102335-NP41B-103137 1989-1990
Suzuki LS 650 P Savage manillar alto 27/31 CV, 20/23 kw 1cil. NP41B M Bastidores: NP41B-103138-NP41B-108964 1991-1993
Suzuki LS 650 P Savage manillar alto 31 CV, 23 kw 1cil. NP41B R Bastidores: NP41B-108965-NP41B-115483 1994-1995
Suzuki LS 650 P Savage manillar alto 31 CV, 23 kw 1cil. NP41B T Bastidores: NP41B-115484-NP41B-117718 1996
Suzuki LS 650 P Savage manillar alto 31 CV, 23 kw 1cil. NP41B V Bastidores: NP41B-117719-NP41B-119611 1997
Suzuki LS 650 P Savage manillar alto 31 CV, 23 kw 1cil. NP41B W Bastidores: NP41B-119612-NP41B-121070 1998
Suzuki LS 650 P Savage manillar alto 31 CV, 23 kw 1cil. NP41B X Bastidores: NP41B-121071-- 1999
Suzuki LS 650 P Savage manillar alto 31 CV, 23 kw 1cil. NP41B Y Bastidores: NP41B-500424-- 2000
