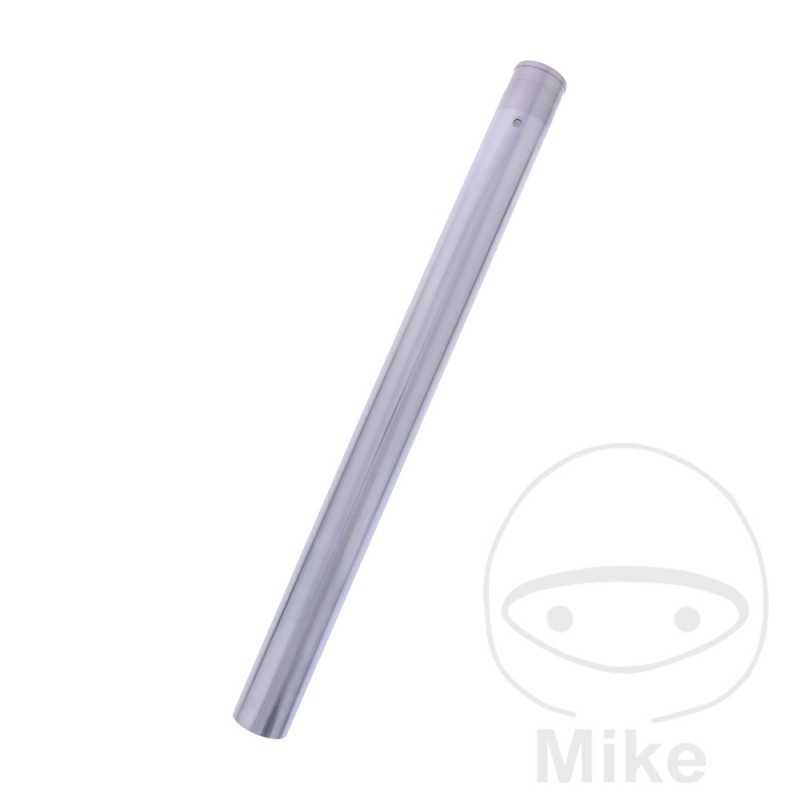

JMP Suspension fork tube 773.15.78

JMP fork tubes

- made with high quality raw material

- special chrome coating with low breaking torque

- each standpipe undergoes a quality inspection before delivery

- manufactured on the most modern CNC machines in Central Europe
INVERTED FORK (UPSIDE DOWN): NO
OUTER DIAMETER: 45MM
INSIDE DIAMETER: 41MM
LENGTH: 556MM
TOP CONNECTION: THREAD
LOWER TERMINAL: WITHOUT THREAD
THREAD: 42 X 1.0


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Suzuki GSX-R 600 106/98 CV, 78/72 kw 4cil. AD3112 W Bastidores: AD3112 henceforth0102577-AD3112 henceforth0104329 1998
Suzuki GSX-R 600 110/98 CV, 81/72 kw 4cil. AD3112 X Bastidores: AD3112 henceforth0104330-AD3112 henceforth0105443 1999
Suzuki GSX-R 600 110/98 CV, 81/72 kw 4cil. AD3112 Y Bastidores: AD3112 henceforth0105444-- 2000
Suzuki GSX-R 600 116 CV, 85 kw 4cil. WVBG1112 K1 Bastidores: BG1112 henceforth0100001-BG1112 henceforth0110600 2001
Suzuki GSX-R 600 116 CV, 85 kw 4cil. WVBG1112 K2 Bastidores: BG1112 henceforth0110601-BG1112 henceforth0114069 2002
Suzuki GSX-R 600 116 CV, 85 kw 4cil. WVBG1112 K3 Bastidores: BG1112 henceforth0114070-- 2003
Suzuki GSX-R 600 U1 98 CV, 72 kw 4cil. WVBG2112 K1 Bastidores: BG2112 henceforth0100001-BG2112 henceforth0102034 2001
Suzuki GSX-R 600 U1 98 CV, 72 kw 4cil. WVBG2112 K2 Bastidores: BG2112 henceforth0102035-- 2002
Suzuki GSX-R 600 U2 106 CV 78 kw 4cil. WVBG3112 K1 Bastidores: BG3112 henceforth0100001-BG3112 henceforth0100012 2001
Suzuki GSX-R 600 U2 106 CV 78 kw 4cil. WVBG3112 K2 Bastidores: BG3112 henceforth0100013-BG3112 henceforth0102345 2002
Suzuki GSX-R 600 U2 106 CV 78 kw 4cil. WVBG3112 K3 Bastidores: BG3112 henceforth0102346-- 2003
