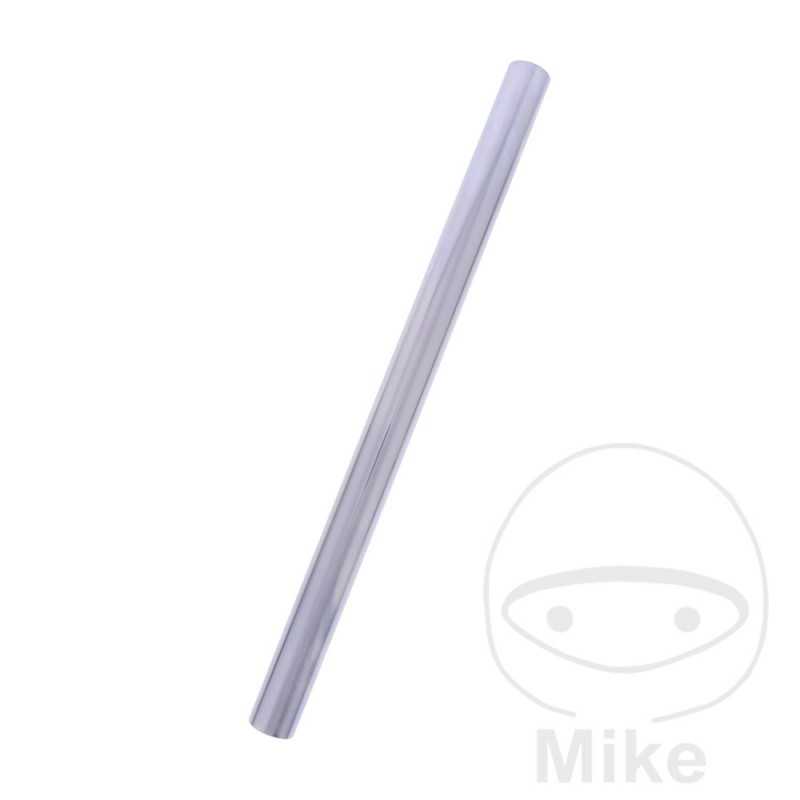

JMP Suspension fork tube 773.15.74

JMP Fork Sleeves

- made with high quality raw material

- special chrome coating with low breaking torque

- each standpipe undergoes a quality inspection before delivery

- manufactured on the most modern CNC machines in Central Europe
INVERTED FORK (UPSIDE DOWN): NO
OUTER DIAMETER: 36MM
INNER DIAMETER: 28MM
LENGTH: 545MM
TOP CONNECTION: WITHOUT THREAD
LOWER TERMINAL: WITHOUT THREAD


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
BMW R 45 N 27 CV, 20 kw 2cil. 248 0352 Bastidores: 6 320 001-6 322 488 1978
BMW R 45 N 27 CV, 20 kw 2cil. 248 0352 Bastidores: 6 322 489-6 326 598 1979
BMW R 45 N 27 CV, 20 kw 2cil. 248 0352 Bastidores: 6 326 599-6 329 475 1980
BMW R 45 N 27 CV, 20 kw 2cil. 248 0355 Bastidores: 6 260 001-6 266 303 1981-1985
BMW R 45 S 35 CV, 26 kw 2cil. 248 0351 Bastidores: 6 300 001-6 302 764 1978
BMW R 45 S 35 CV, 26 kw 2cil. 248 0351 Bastidores: 6 302 765-6 305 582 1979
BMW R 45 S 35 CV, 26 kw 2cil. 248 0351 Bastidores: 6 305 583-6 306 430 1980
BMW R 45 S 35 CV, 26 kw 2cil. 248 0354 Bastidores: 6 270 001-6 275 540 1981-1985
BMW R 65 1Serie 45 CV, 33 kw 2cil. 248 0353 Bastidores: 6 340 001-6 342 274 1978
BMW R 65 1Serie 45 CV, 33 kw 2cil. 248 0353 Bastidores: 6 342 275-6 346 334 1979
BMW R 65 1Serie 45 CV, 33 kw 2cil. 248 0353 Bastidores: 6 346 335-6 349 336 1980
BMW R 65 2Serie 50 CV, 37 kw 2cil. 248 0358 Bastidores: 6 310 001-6 311 755 1980
BMW R 65 2Serie 50 CV, 37 kw 2cil. 248 0358 Bastidores: 6 311 756-6 316 902 1981
BMW R 65 2Serie 50 CV, 37 kw 2cil. 248 0358 Bastidores: 6 316 903-6 410 483 1982
BMW R 65 2Serie 50 CV, 37 kw 2cil. 248 0358 Bastidores: 6 410 484-6 412 338 1983
BMW R 65 2Serie 50 CV, 37 kw 2cil. 248 0358 Bastidores: 6 412 339-6 413 039 1984
BMW R 65 2Serie 50 CV, 37 kw 2cil. 248 0358 Bastidores: 6 413 040-6 413 588 1985
BMW R 65 LS 50 CV, 37 kw 2cil. 248 0359 Bastidores: 6 350 001-6 351 657 1981
BMW R 65 LS 50 CV, 37 kw 2cil. 248 0359 Bastidores: 6 351 658-6 353 985 1982
BMW R 65 LS 50 CV, 37 kw 2cil. 248 0359 Bastidores: 6 353 986-6 354 307 1983
BMW R 65 LS 50 CV, 37 kw 2cil. 248 0359 Bastidores: 6 354 308-6 354 565 1984
BMW R 65 LS 50 CV, 37 kw 2cil. 248 0359 Bastidores: 6 354 566-6 354 679 1985
