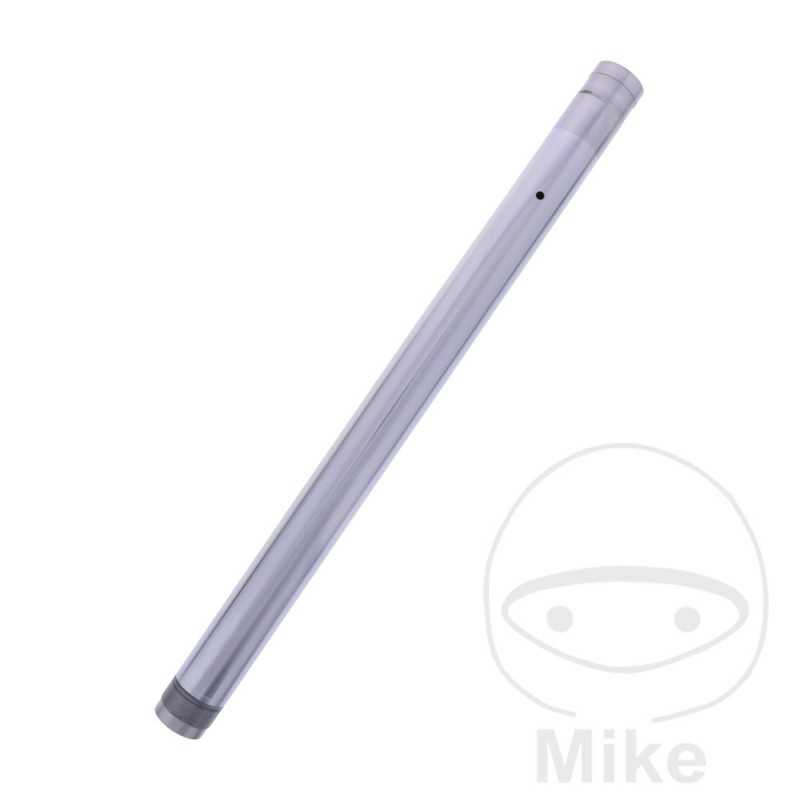

JMP Suspension fork tube 773.15.67

JMP Fork Sleeves

- made with high quality raw material

- special chrome coating with low breaking torque

- each standpipe undergoes a quality inspection before delivery

- manufactured on the most modern CNC machines in Central Europe
INVERTED FORK (UPSIDE DOWN): YES
Diameter, outside: 43 mm
INSIDE DIAMETER: 39.6MM
LENGTH: 588MM
TOP CONNECTION: WITHOUT THREAD
LOWER TERMINAL: THREAD
THREAD: 43 X 1.0


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Triumph Tiger 1050 115/98 CV, 85/72 kw 3cil. 115NG Bastidores: SMTTG7455S --SMTTG7455S - 2007-2010
Triumph Tiger 1050 ABS 115/98 CV, 85/72 kw 3cil. 115NG Bastidores: SMTTG7465S --SMTTG7465S - 2007-2011
Triumph Tiger 1050 SE 115/98 CV, 85/72 kw 3cil. 115NG Bastidores: SMTTG7455S --SMTTG7455S - 2010-2012
Triumph Tiger 1050 SE ABS 115/98 CV, 85/72 kw 3cil. 115NG Bastidores: SMTTG7465S --SMTTG7465S - 2011-2013
Triumph Tiger 1050 Sport ABS 125 CV, 92 kw 3cil. 115NG Bastidores: SMTTG7475F --SMTTG7475F - 2013-2015
Triumph Tiger 1050 Sport ABS 125 CV, 92 kw 3cil. 115NG Bastidores: SMTTG7475F --SMTTG7475F - 750469 2016
Triumph Tiger 1050 Sport ABS 126 CV, 93 kw 3cil. NH01 Bastidores: 1 - 750470-1 - 2016
Triumph Tiger 1050 Sport ABS 126 CV, 93 kw 3cil. NH01 Bastidores: 1 --1 - 2017-2018
Triumph Tiger 1050 Sport ABS 126 CV, 93 kw 3cil. NH01A Bastidores: 1 --1 - 2018-2021
