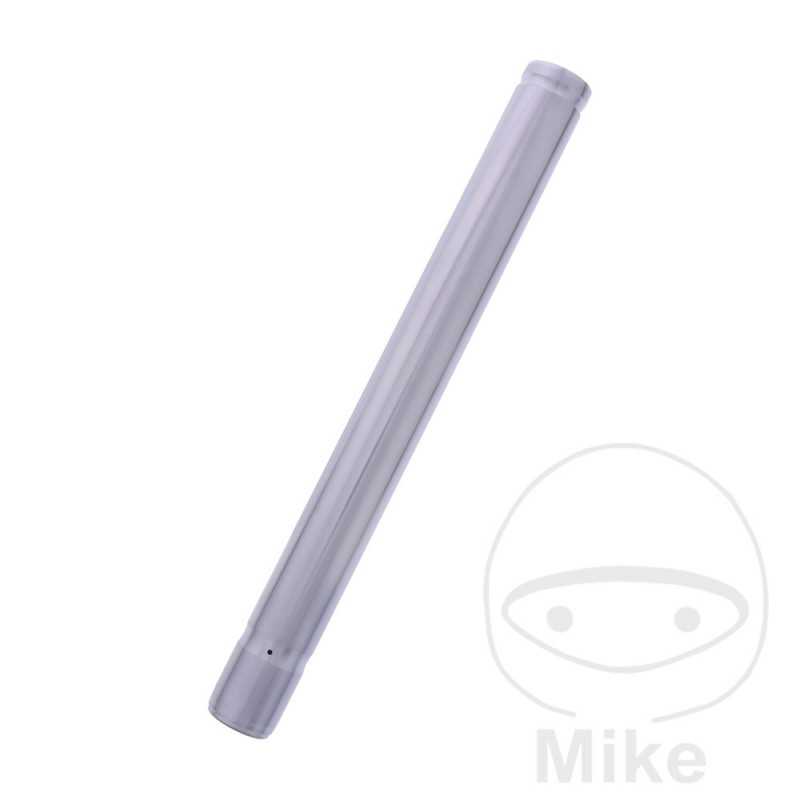

JMP Suspension fork tube 773.15.03

JMP Fork Sleeves

- made with high quality raw material

- special chrome coating with low breaking torque

- each standpipe undergoes a quality inspection before delivery

- manufactured on the most modern CNC machines in Central Europe
INVERTED FORK (UPSIDE DOWN): NO
OUTER DIAMETER: 33MM
INNER DIAMETER: 27MM
LENGTH: 326MM
TOP CONNECTION: WITHOUT THREAD
LOWER TERMINAL: WITHOUT THREAD


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Honda NSS 125 AD Forza ABS 15 CV, 11 kw 1cil. JF60B F Bastidores: ZDC JF60B-FF000001-ZDC JF60B-FF999999 2015-2016
Honda NSS 125 AD Forza ABS 15 CV, 11 kw 1cil. JF69A H Bastidores: ZDC JF69A-HF000001-ZDC JF69A-HF999999 2017-2018
Honda NSS 125 AD Forza ABS Top Case 15 CV, 11 kw 1cil. JF69A K Bastidores: ZDC JF69A-KF050001-- 2019-2020
Honda NSS 300 A Forza ABS 25,2 CV, 18,5 kw 1cil. NF08A K Bastidores: ZDC NF08A-KF000001-- 2018
Honda NSS 300 A Forza ABS Top Case 25,2 CV, 18,5 kw 1cil. NF08A K Bastidores: ZDC NF08A-KF000001-- 2019-2020
Honda SH 125 AD ABS 11,8 CV, 8,7 kw 1cil. JF41D D Bastidores: ZDC JF41D henceforthDF000001-- 2013
Honda SH 125 AD ABS Top Case 11,8 CV, 8,7 kw 1cil. JF41B G Bastidores: ZDC JF41B-GF100001-- 2016
Honda SH 125 AD ABS Top Case 11,8 CV, 8,7 kw 1cil. JF41D E Bastidores: ZDC JF41D-EF050001-- 2014-2015
Honda SH 125 AD ABS Top Case 12,2 CV, 9 kw 1cil. JF68B H Bastidores: ZDC JF68B-HF000001-ZDC JF68B-HF099999 2017-2018
Honda SH 125 AD ABS Top Case 12,2 CV, 9 kw 1cil. JF68B K Bastidores: ZDC JF68B-KF100001-- 2019-2020
Honda SH 125 i DD 11,8 CV, 8,7 kw 1cil. JF41A E Bastidores: ZDC JF41A-EF050001-- 2014-2015
Honda SH 125 i DD 11,8 CV, 8,7 kw 1cil. JF41A G Bastidores: ZDC JF41A-GF100001-- 2016
Honda SH 125 i DD 13,6 CV, 10 kw 1cil. JF41A D Bastidores: ZDC JF41A henceforthDF000001-- 2013
Honda SH 150 A i ABS 15 CV, 11 kw 1cil. KF13B D Bastidores: ZDC KF13B henceforthDF000001-- 2013
Honda SH 150 A i ABS Top Case 15 CV, 11 kw 1cil. KF13B E Bastidores: ZDC KF13B-EF050001-- 2014-2015
Honda SH 150 A i ABS Top Case 15 CV, 11 kw 1cil. KF13B G Bastidores: ZDC KF13B-GF100001-- 2016
Honda SH 150 AD i ABS Top Case 15 CV, 11 kw 1cil. KF23A H Bastidores: ZDC KF23A-HF000001-ZDC KF23A-HF099999 2017-2018
Honda SH 150 AD i ABS Top Case 15 CV, 11 kw 1cil. KF23A K Bastidores: ZDC KF23A-KF100001-- 2019-2020
Honda SH 150 AD i ABS Top Case Smart Key System 16,9 CV, 12,4 kw 1cil. KF40A L Bastidores: ZDC KF40A-LF000001-ZDC KF40A-LF099999 2020-2021
