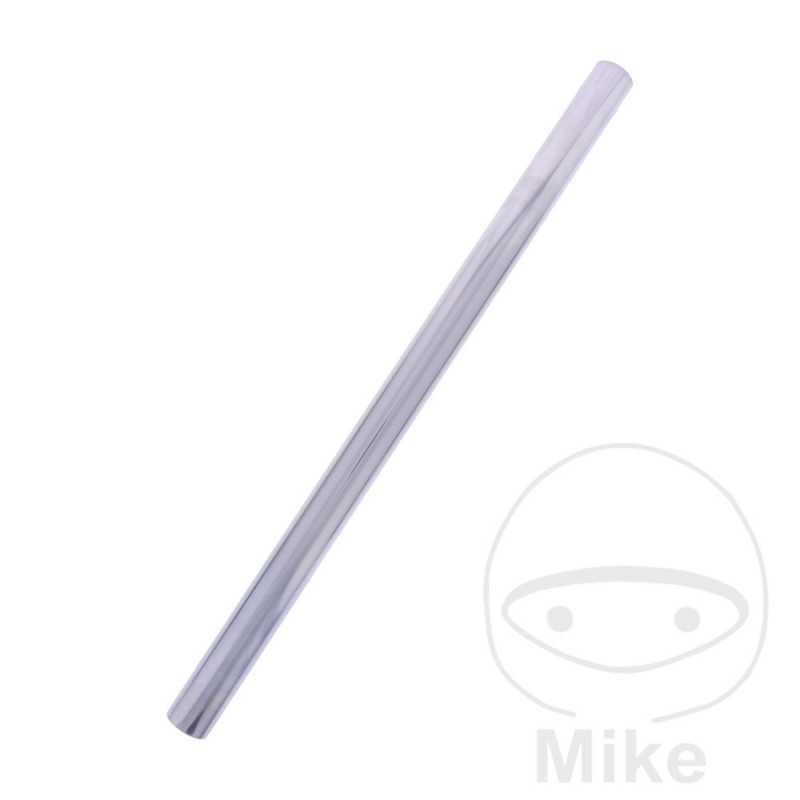

JMP Suspension fork tube 773.14.41

JMP fork tubes

- made with high quality raw material

- special chrome coating with low breaking torque

- each standpipe undergoes a quality inspection before delivery

- manufactured on the most modern CNC machines in Central Europe
INVERTED FORK (UPSIDE DOWN): NO
OUTER DIAMETER: 36MM
INNER DIAMETER: 28MM
LENGTH: 614MM
TOP CONNECTION: FEMALE FITTING
LOWER TERMINAL: WITHOUT THREAD
THREAD: 30 X 1.5


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
BMW R 100 CS 70 CV, 51 kw 2cil. 247 0426 Bastidores: 6 135 001-6 140 000 1980-1984
BMW R 100 llanta de fundición 67 CV, 49 kw 2cil. 247 0425 Bastidores: 6 035 001-6 040 000 1981-1984
BMW R 100 llanta de fundición 67 CV, 49 kw 2cil. 247 0425 Bastidores: 6 400 001-6 405 000 1981-1984
BMW R 100 llanta de radios 67 CV, 49 kw 2cil. 247 0425 Bastidores: 6 035 001-6 040 000 1981-1984
BMW R 100 llanta de radios 67 CV, 49 kw 2cil. 247 0425 Bastidores: 6 400 001-6 405 000 1981-1984
BMW R 100 RS 70 CV, 51 kw 2cil. 247 0377 Bastidores: 6 095 001-6 100 000 1980
BMW R 100 RS 70 CV, 51 kw 2cil. 247 0377 Bastidores: 6 223 001-6 224 000 1980
BMW R 100 RS 70 CV, 51 kw 2cil. 247 0427 Bastidores: 6 075 001-6 080 000 1981-1984
BMW R 100 RS 70 CV, 51 kw 2cil. 247 0427 Bastidores: 6 390 001-6 397 000 1981-1984
BMW R 100 RT 70 CV, 51 kw 2cil. 247 0446 Bastidores: 6 230 001-6 240 000 1981-1984
BMW R 80 G/S monolever 50 CV, 37 kw 2cil. 247 0346 Bastidores: 6 250 001-6 251 498 1980
BMW R 80 G/S monolever 50 CV, 37 kw 2cil. 247 0346 Bastidores: 6 251 499-6 255 878 1981
BMW R 80 G/S monolever 50 CV, 37 kw 2cil. 247 0346 Bastidores: 6 255 879-6 258 245 1982
BMW R 80 G/S monolever 50 CV, 37 kw 2cil. 247 0346 Bastidores: 6 258 246-6 281 211 1983
BMW R 80 G/S monolever 50 CV, 37 kw 2cil. 247 0346 Bastidores: 6 281 212-6 283 356 1984
BMW R 80 G/S monolever 50 CV, 37 kw 2cil. 247 0346 Bastidores: 6 283 357-6 286 766 1985
BMW R 80 G/S monolever 50 CV, 37 kw 2cil. 247 0346 Bastidores: 6 286 767-6 291 005 1986
BMW R 80 G/S monolever 50 CV, 37 kw 2cil. 247 0346 Bastidores: 6 291 006-6 292 522 1987
BMW R 80 G/S PD Paris Dakar monolever 50 CV, 37 kw 2cil. 247 0346 Bastidores: --- 1984-1987
BMW R 80 RT 50 CV, 37 kw 2cil. 247 0444 Bastidores: 6 420 001-6 425 000 1982-1984
BMW R 80 RT/2 monolever 50 CV, 37 kw 2cil. 247 0457 Bastidores: 6 470 001-6 470 513 1984
