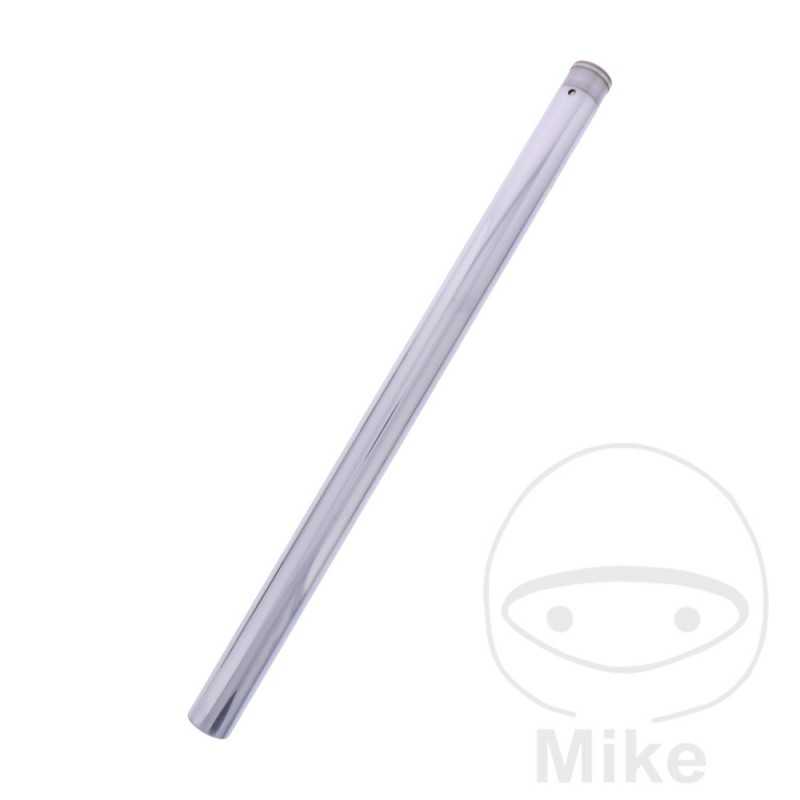

JMP Suspension fork tube 773.14.13

JMP fork tubes

- made with high quality raw material

- special chrome coating with low breaking torque

- each standpipe undergoes a quality inspection before delivery

- manufactured on the most modern CNC machines in Central Europe
INVERTED FORK (UPSIDE DOWN): NO
OUTER DIAMETER: 37MM
INNER DIAMETER: 32MM
LENGTH: 605MM
TOP CONNECTION: FEMALE FITTING
LOWER TERMINAL: WITHOUT THREAD
THREAD: 33 X 1.0


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Suzuki GS 500 45 CV, 33 kw 2cil. WVBK1111 K1 Bastidores: BK1111-100001-BK1111-101302 2001
Suzuki GS 500 45 CV, 33 kw 2cil. WVBK1111 K2 Bastidores: BK1111-101303-- 2002
Suzuki GS 500 45 CV, 33 kw 2cil. WVBK1111 K3 Bastidores: BK1111-100001-BK1111-101188 2003
Suzuki GS 500 E 45 CV, 33 kw 2cil. GM51A Y Bastidores: GM51A-504497-- 2000
Suzuki GS 500 E 45 CV, 33 kw 2cil. GM51B T Bastidores: GM51B-136197-GM51B-139795 1996
Suzuki GS 500 E 45 CV, 33 kw 2cil. GM51B V Bastidores: GM51B-139796-GM51B-142295 1997
Suzuki GS 500 E 45 CV, 33 kw 2cil. GM51B W Bastidores: GM51B-142296-GM51B-145392 1998
Suzuki GS 500 E 45 CV, 33 kw 2cil. GM51B X Bastidores: GM51B-145393-- 1999
Suzuki GS 500 E 46 CV, 34 kw 2cil. GM51B N Bastidores: GM51B-110303-GM51B-117230 1992
Suzuki GS 500 E 46 CV, 34 kw 2cil. GM51B P Bastidores: GM51B-117231-GM51B-124309 1993
Suzuki GS 500 E 46 CV, 34 kw 2cil. GM51B R Bastidores: GM51B-124310-GM51B-131391 1994
Suzuki GS 500 E 46 CV, 34 kw 2cil. GM51B S Bastidores: GM51B-131392-GM51B-136196 1995
Suzuki GS 500 EU 27 CV, 20 kw 2cil. GM51B N Bastidores: GM51B-110303-GM51B-117230 1992
Suzuki GS 500 EU 27 CV, 20 kw 2cil. GM51B P Bastidores: GM51B-117231-GM51B-124309 1993
Suzuki GS 500 EU 34 CV, 25 kw 2cil. GM51B R Bastidores: GM51B-124310-GM51B-131391 1994
Suzuki GS 500 EU 34 CV, 25 kw 2cil. GM51B S Bastidores: GM51B-131392-GM51B-136196 1995
Suzuki GS 500 EU 34 CV, 25 kw 2cil. GM51B T Bastidores: GM51B-136197-GM51B-139345 1996
Suzuki GS 500 EU 34 CV, 25 kw 2cil. GM51B V Bastidores: GM51B-139346-GM51B-142370 1997
Suzuki GS 500 EU 34 CV, 25 kw 2cil. GM51B W Bastidores: GM51B-142371-GM51B-145202 1998
Suzuki GS 500 EU 34 CV, 25 kw 2cil. GM51B X Bastidores: GM51B-145203-- 1999
Suzuki GS 500 EU 34 CV, 25 kw 2cil. GM51B Y Bastidores: GM51B-501303-- 2000
Suzuki GS 500 U 34 CV, 25 kw 2cil. WVBK3111 K1 Bastidores: BK3111-100001-BK3111-101651 2001
Suzuki GS 500 U 34 CV, 25 kw 2cil. WVBK3111 K2 Bastidores: BK3111-101652-- 2002
Suzuki GS 500 U 34 CV, 25 kw 2cil. WVBK3111 K3 Bastidores: BK3111-100001-- 2003
