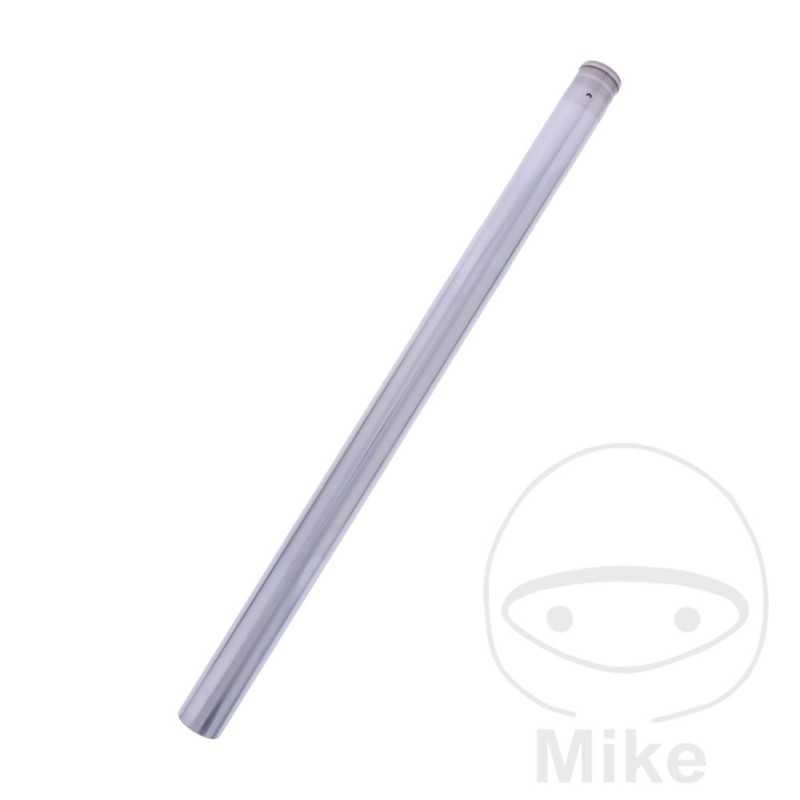

JMP Suspension fork tube 773.14.12

JMP fork tubes

- made with high quality raw material

- special chrome coating with low breaking torque

- each standpipe undergoes a quality inspection before delivery

- manufactured on the most modern CNC machines in Central Europe
INVERTED FORK (UPSIDE DOWN): NO
OUTER DIAMETER: 37MM
INNER DIAMETER: 31MM
LENGTH: 598MM
TOP CONNECTION: FEMALE FITTING
LOWER TERMINAL: WITHOUT THREAD
THREAD: 34 X 1.5


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Honda CB 500 34 CV, 25 kw 2cil. PC26 R Bastidores: PC26-4000001-- 1994-1995
Honda CB 500 34 CV, 25 kw 2cil. PC32C T Bastidores: ZDC PC32C henceforthTF000001-- 1996
Honda CB 500 34 CV, 25 kw 2cil. PC32C V Bastidores: ZDC PC32C henceforthVF100001-- 1997
Honda CB 500 50 CV, 37 kw 2cil. PC26 R Bastidores: PC26-3000001-- 1994-1995
Honda CB 500 50 CV, 37 kw 2cil. PC32B T Bastidores: ZDC PC32B henceforthTF000001-- 1996
Honda CB 500 50 CV, 37 kw 2cil. PC32B V Bastidores: ZDC PC32B henceforthVF100001-- 1997
Honda CB 500 58 CV, 43 kw 2cil. PC26 R Bastidores: PC26-2000030-- 1994-1995
Honda CB 500 58 CV, 43 kw 2cil. PC32A T Bastidores: ZDC PC32A henceforthTF000001-- 1996
Honda CB 500 58 CV, 43 kw 2cil. PC32A V Bastidores: ZDC PC32A henceforthVF100001-- 1997
