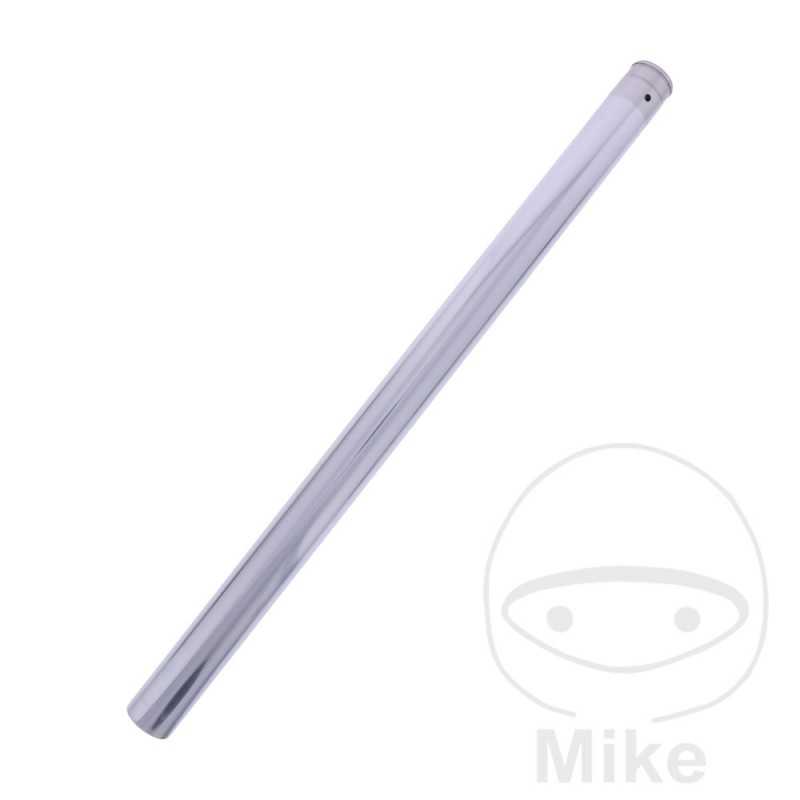

JMP Suspension fork tube 773.13.61

JMP Fork Sleeves

- made with high quality raw material

- special chrome coating with low breaking torque

- each standpipe undergoes a quality inspection before delivery

- manufactured on the most modern CNC machines in Central Europe
INVERTED FORK (UPSIDE DOWN): NO
OUTER DIAMETER: 41MM
INNER DIAMETER: 33MM
LENGTH: 657MM
TOP CONNECTION: FEMALE FITTING
THREAD: 37X1.5


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Suzuki VS 1400 GLF Intruder manillar plano 67 CV, 49 kw 2cil. VX51L H Bastidores: VX51L-100001-VX51L-103294 1987
Suzuki VS 1400 GLF Intruder manillar plano 67 CV, 49 kw 2cil. VX51L J Bastidores: VX51L-103295-VX51L-105124 1988
Suzuki VS 1400 GLP Intruder manillar alto 61 CV, 45 kw 2cil. VX51L K1 Bastidores: VX51L henceforth00504901-VX51L henceforth00505797 2001
Suzuki VS 1400 GLP Intruder manillar alto 61 CV, 45 kw 2cil. VX51L K2 Bastidores: VX51L henceforth00505798-VX51L henceforth00506817 2002
Suzuki VS 1400 GLP Intruder manillar alto 61 CV, 45 kw 2cil. VX51L K3 Bastidores: VX51L henceforth00506818-- 2003
Suzuki VS 1400 GLP Intruder manillar alto 61 CV, 45 kw 2cil. VX51L T Bastidores: VX51L-125294-VX51L-129696 1996
Suzuki VS 1400 GLP Intruder manillar alto 61 CV, 45 kw 2cil. VX51L V Bastidores: VX51L-129697-VX51L-132929 1997
Suzuki VS 1400 GLP Intruder manillar alto 61 CV, 45 kw 2cil. VX51L W Bastidores: VX51L-132930-VX51L-135285 1998
Suzuki VS 1400 GLP Intruder manillar alto 61 CV, 45 kw 2cil. VX51L X Bastidores: VX51L-135286-- 1999
Suzuki VS 1400 GLP Intruder manillar alto 61 CV, 45 kw 2cil. VX51L Y Bastidores: VX51L henceforth00503273-VX51L henceforth00504900 2000
Suzuki VS 1400 GLP Intruder manillar alto 64 CV, 47 kw 2cil. VX51L R Bastidores: VX51L-115246-VX51L-121561 1994
Suzuki VS 1400 GLP Intruder manillar alto 64 CV, 47 kw 2cil. VX51L S Bastidores: VX51L-121562-VX51L-125293 1995
Suzuki VS 1400 GLP Intruder manillar alto 64 CV, 47 kw 2cil. VX51LD N Bastidores: VX51LD-108040-VX51LD-110757 1992
Suzuki VS 1400 GLP Intruder manillar alto 64 CV, 47 kw 2cil. VX51LD P Bastidores: VX51LD-110758-- 1993
Suzuki VS 1400 GLP Intruder manillar alto 67 CV, 49 kw 2cil. VX51L H Bastidores: VX51L-100001-VX51L-103294 1987
Suzuki VS 1400 GLP Intruder manillar alto 67 CV, 49 kw 2cil. VX51L J Bastidores: VX51L-103295-VX51L-105124 1988
Suzuki VS 1400 GLP Intruder manillar alto 67 CV, 49 kw 2cil. VX51LD K Bastidores: VX51LD-104562-VX51LD-105129 1989
Suzuki VS 1400 GLP Intruder manillar alto 67 CV, 49 kw 2cil. VX51LD L Bastidores: VX51LD-105130-VX51LD-105901 1990
Suzuki VS 1400 GLP Intruder manillar alto 67 CV, 49 kw 2cil. VX51LD M Bastidores: VX51LD-105902-VX51LD-108039 1991
