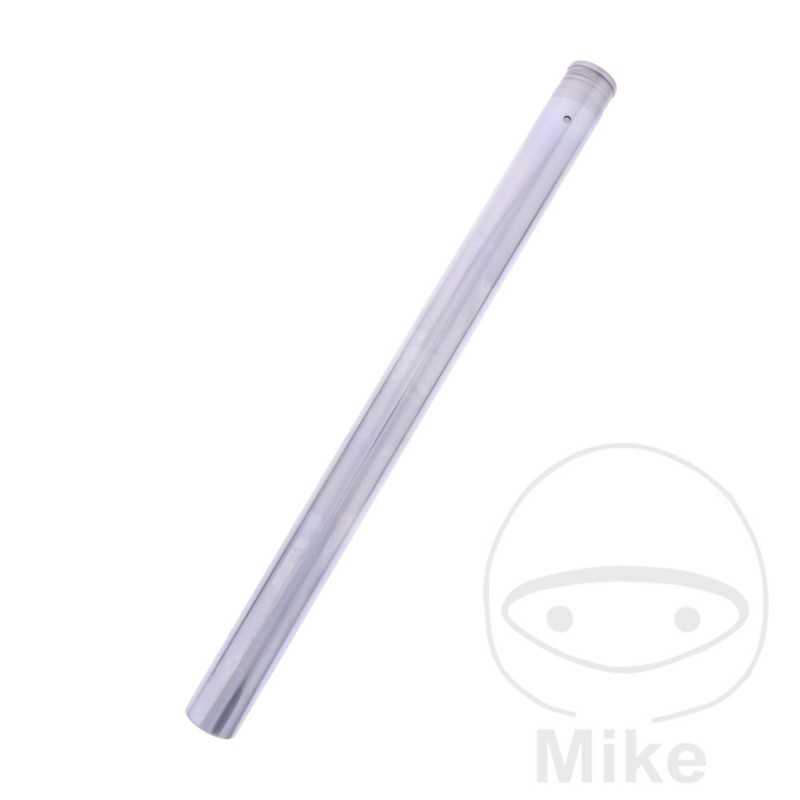

JMP Suspension fork tube 773.10.43

JMP Fork Sleeves

- made with high quality raw material

- special chrome coating with low breaking torque

- each standpipe undergoes a quality inspection before delivery

- manufactured on the most modern CNC machines in Central Europe
INVERTED FORK (UPSIDE DOWN): NO
OUTER DIAMETER: 45MM
INNER DIAMETER: 38MM
LENGTH: 603MM
TOP CONNECTION: FEMALE FITTING
LOWER TERMINAL: WITHOUT THREAD
THREAD: 42 X 1.0


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Honda GL 1800 A Goldwing ABS 118 CV, 87 kw 6cil. SC47A 1 Bastidores: 1HF SC47A-1A000001-1HF SC47A-1A099999 2001
Honda GL 1800 A Goldwing ABS 118 CV, 87 kw 6cil. SC47A 2 Bastidores: 1HF SC47A-2A100001-1HF SC47A-2A199999 2002
Honda GL 1800 A Goldwing ABS 118 CV, 87 kw 6cil. SC47A 3 Bastidores: 1HF SC47A-3A200001-1HF SC47A-3A299999 2003
Honda GL 1800 A Goldwing ABS 118 CV, 87 kw 6cil. SC47A 4 Bastidores: 1HF SC47A-4A300001-1HF SC47A-4A399999 2004
Honda GL 1800 A Goldwing ABS 118 CV, 87 kw 6cil. SC47A 5 Bastidores: 1HF SC47A-5A400001-1HF SC47A-5A499999 2005
Honda GL 1800 Goldwing ABS 118 CV, 87 kw 6cil. SC47A 6 Bastidores: 1HF SC47A-6A500001-1HF SC47A-6A599999 2006
Honda GL 1800 Goldwing ABS 118 CV, 87 kw 6cil. SC47A 7 Bastidores: 1HF SC47A-7A600001-1HF SC47A-7A699999 2007
Honda GL 1800 Goldwing ABS 118 CV, 87 kw 6cil. SC47A 8 Bastidores: 1HF SC47A-8A700001-- 2008
Honda GL 1800 Goldwing ABS 118 CV, 87 kw 6cil. SC47A 9 Bastidores: 1HF SC47A-9A800001-1HF SC47A-9A899999 2009
Honda GL 1800 Goldwing ABS 118 CV, 87 kw 6cil. SC47A A Bastidores: 1HF SC47A-AA900001-1HF SC47A-AA999999 2010-2011
Honda GL 1800 Goldwing ABS 118 CV, 87 kw 6cil. SC47C 6 Bastidores: 1HF SC47C-6A500001-1HF SC47C-6A599999 2006
Honda GL 1800 Goldwing ABS Airbag Navi 118 CV, 87 kw 6cil. SC47N 7 Bastidores: 1HF SC47N-7A600001-1HF SC47N-7A699999 2007
Honda GL 1800 Goldwing ABS Airbag Navi 118 CV, 87 kw 6cil. SC47N 8 Bastidores: 1HF SC47N-8A700001-- 2008
Honda GL 1800 Goldwing ABS Airbag Navi 118 CV, 87 kw 6cil. SC47N 9 Bastidores: 1HF SC47N-9A800001-1HF SC47N-9A899999 2009
Honda GL 1800 Goldwing ABS Airbag Navi 118 CV, 87 kw 6cil. SC47N A Bastidores: 1HF SC47N-AA900001-1HF SC47N-AA999999 2010-2011
