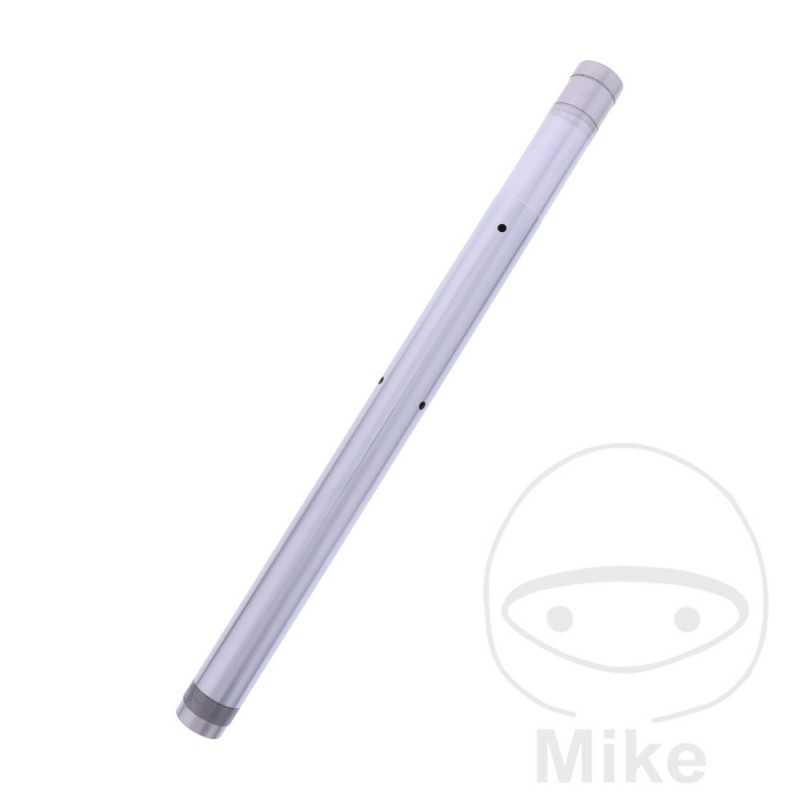

JMP Suspension fork tube 773.10.41

JMP Fork Sleeves

- made with high quality raw material

- special chrome coating with low breaking torque

- each standpipe undergoes a quality inspection before delivery

- manufactured on the most modern CNC machines in Central Europe
INVERTED FORK (UPSIDE DOWN): YES
Diameter, outside: 43 mm
INSIDE DIAMETER: 39.4MM
LENGTH: 606MM
TOP CONNECTION: MALE FITTING
LOWER TERMINAL: WITHOUT THREAD
THREAD: 43 X 1.0


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Suzuki DL 1000 A V-Strom ABS 100 CV, 74 kw 2cil. DD1111 L4 Bastidores: DD1111 henceforth0000001-DD1111 henceforth0108797 2014
Suzuki DL 1000 A V-Strom ABS 100 CV, 74 kw 2cil. DD1111 L5 Bastidores: DD1111 henceforth0108798-- 2015
Suzuki DL 1000 A V-Strom ABS 100 CV, 74 kw 2cil. DD1111 L6 Bastidores: DD1111-G0100001-DD1111-G0199999 2016
Suzuki DL 1000 A V-Strom ABS 100 CV, 74 kw 2cil. DD1245 L8 Bastidores: DD1245-J0100001-DD1245-J0199999 2017-2018
Suzuki DL 1000 A V-Strom ABS 100 CV, 74 kw 2cil. DD1245 L9 Bastidores: DD1245-K7100001-DD1245-K7999999 2019-2020
Suzuki DL 1000 A V-Strom Big ABS 100 CV, 74 kw 2cil. DD1111 L4 Bastidores: DD1111 henceforth0000001-DD1111 henceforth0108797 2014
Suzuki DL 1000 XTA V-Strom ABS llanta de radios 100 CV, 74 kw 2cil. DD1245 L8 Bastidores: DD1245-J0100001-DD1245-J0199999 2017-2018
Suzuki DL 1000 XTA V-Strom ABS llanta de radios 100 CV, 74 kw 2cil. DD1245 L9 Bastidores: DD1245-K7100001-DD1245-K7999999 2019-2020
Suzuki DL 1050 XT V-Strom ABS llanta de radios (RC) 107 CV, 79 kw 2cil. EF12AZ M0 Bastidores: EF12AZ-M7100001-EF12AZ-M7999999 2020
