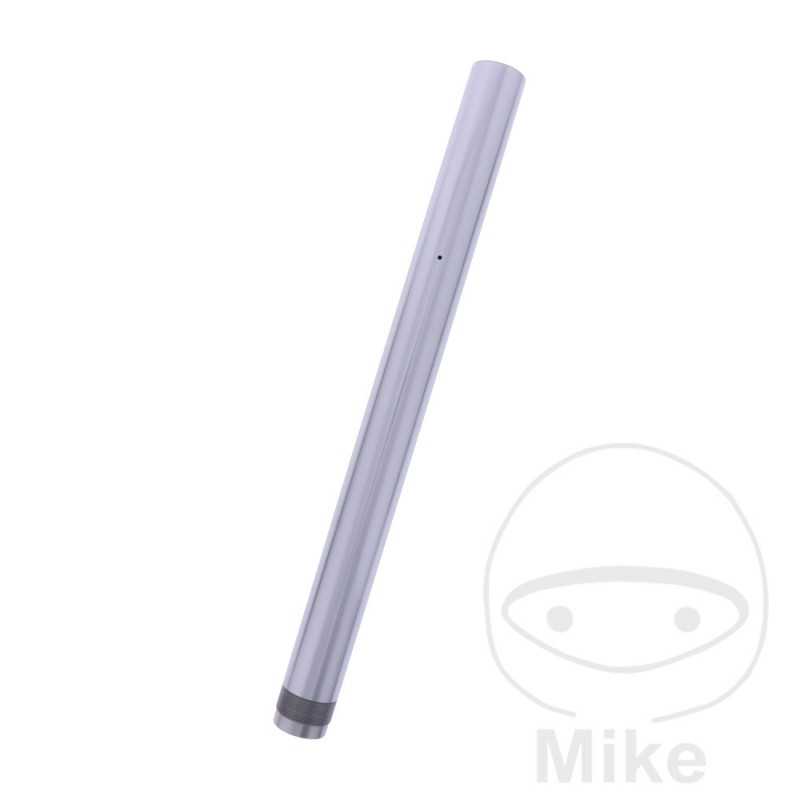

JMP Suspension fork tube UPSIDE-DOWN 773.10.31

JMP Fork Sleeves

- made with high quality raw material

- special chrome coating with low breaking torque

- each standpipe undergoes a quality inspection before delivery

- manufactured on the most modern CNC machines in Central Europe
INVERTED FORK (UPSIDE DOWN): YES
Diameter, outside: 43 mm
INSIDE DIAMETER: 39.6MM
LENGTH: 513MM
TOP CONNECTION: WITHOUT THREAD
LOWER TERMINAL: MALE FITTING
THREAD: 43 X 1.0


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Suzuki GSX-R 600 120 CV, 88 kw 4cil. WVB21111 K4 Bastidores: B21111 henceforth0100001-B21111 henceforth0107930 2004
Suzuki GSX-R 600 120 CV, 88 kw 4cil. WVB21111 K5 Bastidores: B21111 henceforth0107931-- 2005
Suzuki GSX-R 600 U2 106 CV 78 kw 4cil. WVB22111 K4 Bastidores: B22111 henceforth0100001-B22111 henceforth0101023 2004
Suzuki GSX-R 600 U2 106 CV 78 kw 4cil. WVB22111 K5 Bastidores: B22111 henceforth0101424-- 2005
Suzuki GSX-R 600 U3 34 CV, 25 kw 4cil. WVB23111 K4 Bastidores: B23111 henceforth0100001-B23111 henceforth0100041 2004
Suzuki GSX-R 600 U3 34 CV, 25 kw 4cil. WVB23111 K5 Bastidores: B23111 henceforth0100042-- 2005
Suzuki GSX-R 600 X Anniversary 120 CV, 88 kw 4cil. WVB21114 K5 Bastidores: B21114 henceforth0100001-- 2005
Suzuki GSX-R 600 XU2 Anniversary 106 CV 78 kw 4cil. WVB22114 K5 Bastidores: B22114 henceforth0100001-- 2005
Suzuki GSX-R 600 XU3 Anniversary 34 CV, 25 kw 4cil. WVB23114 K5 Bastidores: B23114 henceforth0100001-- 2005
Suzuki GSX-R 750 148 CV, 109 kw 4cil. WVB31111 K4 Bastidores: B31111 henceforth0100001-B31111 henceforth0104084 2004
Suzuki GSX-R 750 148 CV, 109 kw 4cil. WVB31111 K5 Bastidores: B31111 henceforth0104085-- 2005
Suzuki GSX-R 750 U2 106 CV, 78 kw 4cil. WVB32111 K4 Bastidores: B32111 henceforth0100001-B32111 henceforth0101238 2004
Suzuki GSX-R 750 U2 106 CV, 78 kw 4cil. WVB32111 K5 Bastidores: B32111 henceforth0101239-- 2005
Suzuki GSX-R 750 X 148 CV, 109 kw 4cil. WVB31114 K5 Bastidores: B31114 henceforth0100001-- 2005
Suzuki GSX-R 750 XU2 106 CV, 78 kw 4cil. WVB31216 K5 Bastidores: B31216 henceforth0100001-- 2005
