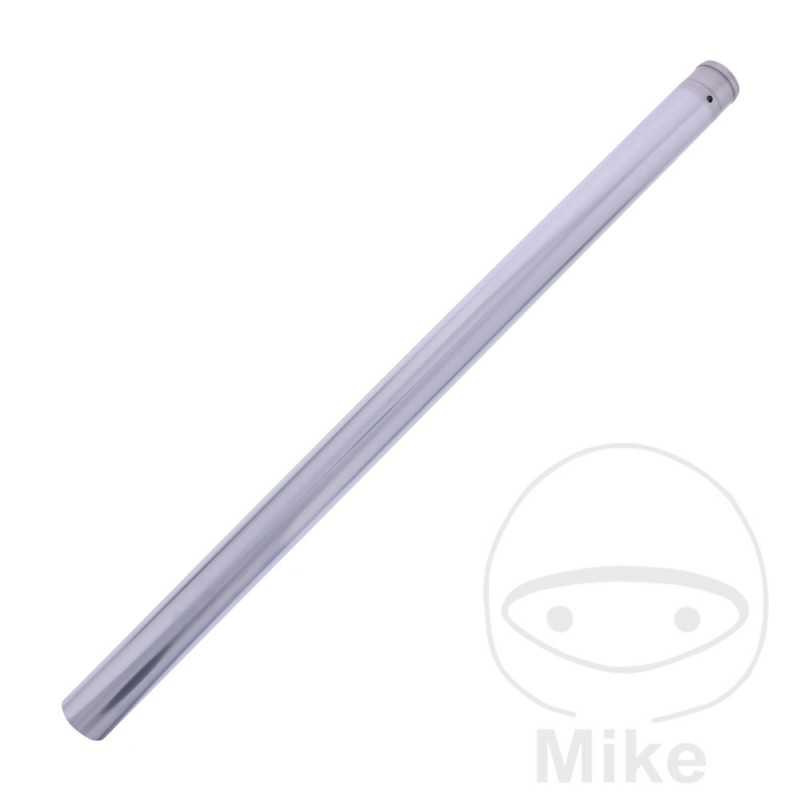

JMP Suspension fork tube 773.09.82

JMP Fork Sleeves

- made with high quality raw material

- special chrome coating with low breaking torque

- each standpipe undergoes a quality inspection before delivery

- manufactured on the most modern CNC machines in Central Europe
INVERTED FORK (UPSIDE DOWN): NO
Diameter, outside: 43 mm
INSIDE DIAMETER: 37.7MM
LENGTH: 715MM
TOP CONNECTION: FEMALE FITTING
LOWER TERMINAL: WITHOUT THREAD
THREAD: 40 X 1.0


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Yamaha XT 660 R 34 CV 25 kw 1cil. DM016 3S62 Bastidores: DM016 henceforth00275-- 2006
Yamaha XT 660 R 34 CV, 25 kw 1cil. - 3S61 Bastidores: --- 2005
Yamaha XT 660 R 34 CV, 25 kw 1cil. - 3S63 Bastidores: --- 2007
Yamaha XT 660 R 34 CV, 25 kw 1cil. - 3S64 Bastidores: --- 2008
Yamaha XT 660 R 48 CV, 35 kw 1cil. DM011 5VK1 Bastidores: DM011 henceforth00166-- 2004
Yamaha XT 660 R 48 CV, 35 kw 1cil. DM011 5VK4 Bastidores: DM011 henceforth09701-- 2005
Yamaha XT 660 R 48 CV, 35 kw 1cil. DM011 5VK6 Bastidores: DM011 henceforth14113-- 2006
Yamaha XT 660 R 48 CV, 35 kw 1cil. DM018 5VK8 Bastidores: DM018 henceforth00166-- 2007
Yamaha XT 660 R 48 CV, 35 kw 1cil. DM018 5VKA Bastidores: DM018 henceforth03348-- 2008
Yamaha XT 660 R 48 CV, 35 kw 1cil. DM018 5VKC Bastidores: DM018 henceforth07086-- 2009
Yamaha XT 660 R 48 CV, 35 kw 1cil. DM018 5VKE Bastidores: DM018 henceforth07405-- 2010
Yamaha XT 660 R 48 CV, 35 kw 1cil. DM018 5VKG Bastidores: DM018 henceforth20001-- 2011-2013
Yamaha XT 660 R 48 CV, 35 kw 1cil. DM018 5VKL Bastidores: DM018 henceforth22001-- 2014-2016
