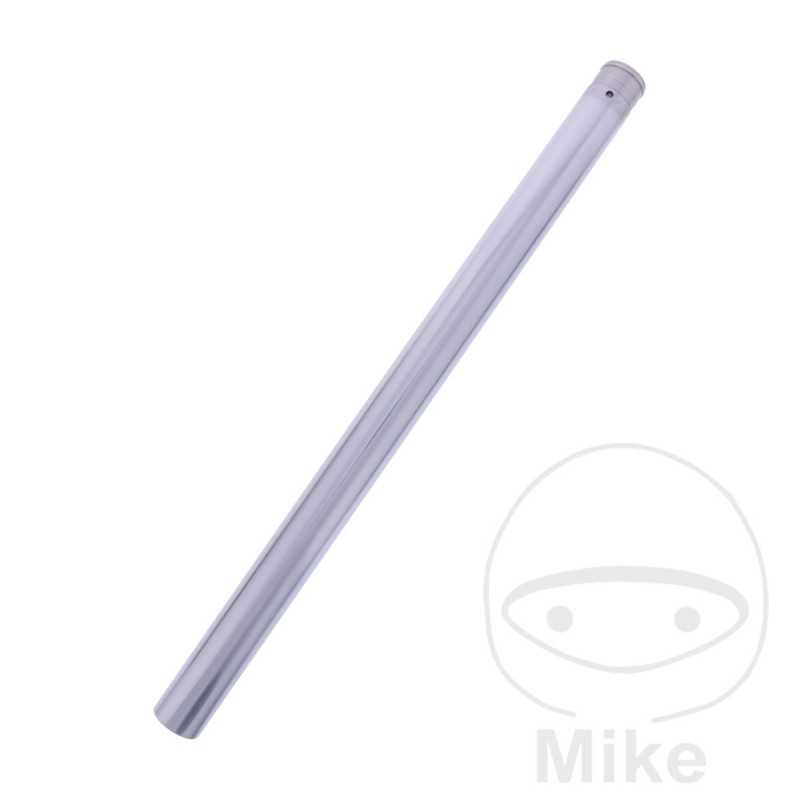

JMP Suspension fork tube 773.09.49

JMP Fork Sleeves

- made with high quality raw material

- special chrome coating with low breaking torque

- each standpipe undergoes a quality inspection before delivery

- manufactured on the most modern CNC machines in Central Europe
INVERTED FORK (UPSIDE DOWN): NO
OUTER DIAMETER: 41MM
INSIDE DIAMETER: 36.4MM
LENGTH: 621MM
TOP CONNECTION: FEMALE FITTING
THREAD: 37 X 1.0


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Honda CB 500 F 48 CV, 35 kw 2cil. PC45A D Bastidores: MLH PC45A-D5000001-MLH PC45A-D5999999 2013
Honda CB 500 F 48 CV, 35 kw 2cil. PC45A E Bastidores: MLH PC45A-E5100001-MLH PC45A-E5199999 2014
Honda CB 500 F 48 CV, 35 kw 2cil. PC45A F Bastidores: MLH PC45A-F5200001-- 2015
Honda CB 500 FA ABS 48 CV, 35 kw 2cil. PC45B D Bastidores: MLH PC45B-D5000001-MLH PC45B-D5999999 2013
Honda CB 500 FA ABS 48 CV, 35 kw 2cil. PC45B E Bastidores: MLH PC45B-E5100001-MLH PC45B-E5199999 2014
Honda CB 500 FA ABS 48 CV, 35 kw 2cil. PC45B F Bastidores: MLH PC45B-F5200001-- 2015
