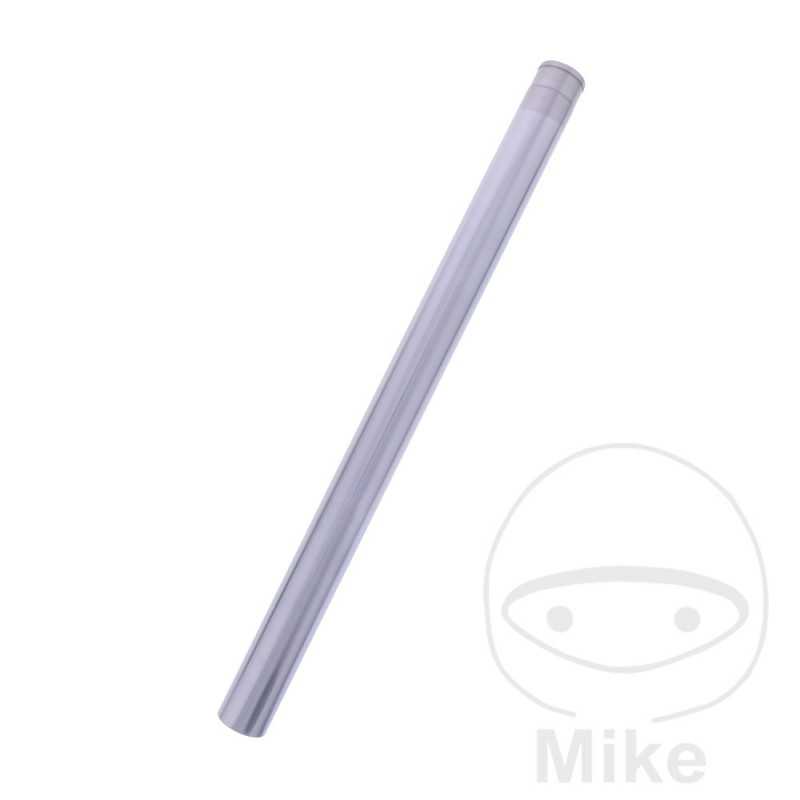

JMP Suspension fork tube 773.09.47

JMP fork tubes

- made with high quality raw material

- special chrome coating with low breaking torque

- each standpipe undergoes a quality inspection before delivery

- manufactured on the most modern CNC machines in Central Europe
INVERTED FORK (UPSIDE DOWN): NO
OUTER DIAMETER: 41MM
INSIDE DIAMETER: 36.4MM
LENGTH: 575MM
TOP CONNECTION: THREAD
LOWER TERMINAL: WITHOUT THREAD
THREAD: 38 X 1.0


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Yamaha MT07 700 48 CV, 35 kw 2cil. RM047 1WS2 Bastidores: RM047 henceforth00301-- 2014
Yamaha MT07 700 48 CV, 35 kw 2cil. RM047 1WS8 Bastidores: RM047 henceforth00399-- 2014
Yamaha MT07 700 48 CV, 35 kw 2cil. RM047 1WS9 Bastidores: RM047 henceforth00321-- 2014
Yamaha MT07 700 48 CV, 35 kw 2cil. RM047 1WSC Bastidores: RM047 henceforth01568-- 2015
Yamaha MT07 700 48 CV, 35 kw 2cil. RM047 1WSJ Bastidores: RM047 henceforth01898-- 2016
Yamaha MT07 700 74,8 CV, 55 kw 2cil. RM041 1WS1 Bastidores: RM041 henceforth00301-- 2014
Yamaha MT07 700 74,8 CV, 55 kw 2cil. RM041 1WS6 Bastidores: RM041 henceforth00336-- 2014
Yamaha MT07 700 74,8 CV, 55 kw 2cil. RM041 1WS7 Bastidores: RM041 henceforth00406-- 2014
Yamaha MT07 700 74,8 CV, 55 kw 2cil. RM041 1WSB Bastidores: RM041 henceforth08736-- 2015
Yamaha MT07 700 74,8 CV, 55 kw 2cil. RM041 1WSH Bastidores: RM041 henceforth12729-- 2016
Yamaha MT07 700 A ABS 48 CV, 35 kw 2cil. RM048 1XB2 Bastidores: RM048 henceforth00301-- 2014
Yamaha MT07 700 A ABS 48 CV, 35 kw 2cil. RM048 1XB7 Bastidores: RM048 henceforth00401-- 2014
Yamaha MT07 700 A ABS 48 CV, 35 kw 2cil. RM048 1XB8 Bastidores: RM048 henceforth00371-- 2014
Yamaha MT07 700 A ABS 48 CV, 35 kw 2cil. RM048 1XBB Bastidores: RM048 henceforth02393-- 2015
Yamaha MT07 700 A ABS 48 CV, 35 kw 2cil. RM048 1XBJ Bastidores: RM048 henceforth03275-- 2016
Yamaha MT07 700 A ABS 48 CV, 35 kw 2cil. RM181 BU23 Bastidores: RM181 henceforth00301-- 2017
Yamaha MT07 700 A ABS 74,8 CV, 55 kw 2cil. RM042 1XB1 Bastidores: RM042 henceforth00301-- 2014
Yamaha MT07 700 A ABS 74,8 CV, 55 kw 2cil. RM042 1XB5 Bastidores: RM042 henceforth00401-- 2014
Yamaha MT07 700 A ABS 74,8 CV, 55 kw 2cil. RM042 1XB6 Bastidores: RM042 henceforth00431-- 2014
Yamaha MT07 700 A ABS 74,8 CV, 55 kw 2cil. RM042 1XBA Bastidores: RM042 henceforth12174-- 2015
Yamaha MT07 700 A ABS 74,8 CV, 55 kw 2cil. RM042 1XBH Bastidores: RM042 henceforth21344-- 2016
Yamaha MT07 700 A ABS 74,8 CV, 55 kw 2cil. RM171 BU21 Bastidores: RM171 henceforth00301-- 2017
Yamaha MT07 700 A ABS MTN690 73 CV, 54 kw 2cil. RM331 BAT1 Bastidores: RM331 henceforth00301-- 2021
Yamaha MT07 700 A ABS MTN690 73 CV, 54 kw 2cil. RM331 BATD Bastidores: RM331 henceforth11763-- 2022
Yamaha MT07 700 A ABS MTN690-A 74,8 CV, 55 kw 2cil. RM172 B4CH Bastidores: RM172 henceforth25495-- 2020
Yamaha MT07 700 A ABS MTN690-U 48 CV, 35 kw 2cil. RM182 B8M1 Bastidores: RM182 henceforth00301-- 2018
Yamaha MT07 700 A ABS MTN690-U 48 CV, 35 kw 2cil. RM182 B8M2 Bastidores: RM182 henceforth07378-- 2019
Yamaha MT07 700 A ABS MTN690-U 48 CV, 35 kw 2cil. RM182 B8M3 Bastidores: RM182 henceforth16303-- 2020
Yamaha MT07 700 A ABS MTN690-U 48 CV, 35 kw 2cil. RM341 BHH1 Bastidores: RM341 henceforth00301-- 2021
Yamaha MT07 700 A ABS MTN690-U 48 CV, 35 kw 2cil. RM341 BHH3 Bastidores: RM341 henceforth08872-- 2022
Yamaha MT07 700 A ABS MTT690-A 74,8 CV, 55 kw 2cil. RM172 B4C1 Bastidores: RM172 henceforth00301-- 2018
Yamaha MT07 700 A ABS MTT690-A 74,8 CV, 55 kw 2cil. RM172 B4C9 Bastidores: RM172 henceforth11916-- 2019
Yamaha MT07 700 A Moto Cage ABS 48 CV, 35 kw 2cil. RM048 1XBE Bastidores: RM048 henceforth02376-- 2014-2017
Yamaha MT07 700 A Moto Cage ABS 74,8 CV, 55 kw 2cil. - 1XB9 Bastidores: --- 2014-2017
Yamaha MT07 700 Moto Cage 48 CV, 35 kw 2cil. - 1WSG Bastidores: --- 2014-2016
Yamaha MT07 700 Moto Cage 74,8 CV, 55 kw 2cil. RM041 1WSA Bastidores: RM041 henceforth07386-- 2014-2016
Yamaha Tracer 700 ABS MTT690-A 74,8 CV, 55 kw 2cil. RM141 BC61 Bastidores: RM141 henceforth00080-- 2016-2017
Yamaha Tracer 700 ABS MTT690-A 74,8 CV, 55 kw 2cil. RM141 BC64 Bastidores: RM141 henceforth25103-- 2018
Yamaha Tracer 700 ABS MTT690-A 74,8 CV, 55 kw 2cil. RM142 B0K1 Bastidores: RM142 henceforth00090-- 2018
Yamaha Tracer 700 ABS MTT690-A 74,8 CV, 55 kw 2cil. RM144 B0K2 Bastidores: RM144 henceforth00301-- 2019
Yamaha Tracer 700 ABS MTT690-U 48 CV, 35 kw 2cil. RM151 BC62 Bastidores: RM151 henceforth00107-- 2016-2017
Yamaha Tracer 700 ABS MTT690-U 48 CV, 35 kw 2cil. RM151 BC65 Bastidores: RM151 henceforth05171-- 2018
Yamaha Tracer 700 ABS MTT690-U 48 CV, 35 kw 2cil. RM152 B1K1 Bastidores: RM152 henceforth00163-- 2018
Yamaha Tracer 700 ABS MTT690-U 48 CV, 35 kw 2cil. RM154 B1K2 Bastidores: RM154 henceforth00141-- 2019
Yamaha XSR 700 ABS 74,8 CV, 55 kw 2cil. RM111 B347 Bastidores: RM111 henceforth08101-- 2017
Yamaha XSR 700 ABS 74,8 CV, 55 kw 2cil. RM111 B34A Bastidores: RM111 henceforth18101-- 2018
Yamaha XSR 700 ABS 74,8 CV, 55 kw 2cil. RM112 BU31 Bastidores: RM112 henceforth00090-- 2018
Yamaha XSR 700 ABS 74,8 CV, 55 kw 2cil. RM112 BU32 Bastidores: RM112 henceforth01161-- 2019
Yamaha XSR 700 ABS 74,8 CV, 55 kw 2cil. RM112 BU33 Bastidores: RM112 henceforth06301-- 2020
Yamaha XSR 700 ABS MTM690 73 CV, 54 kw 2cil. 3R364 BEF1 Bastidores: --- 2022
Yamaha XSR 700 ABS MTM690 73 CV, 54 kw 2cil. RM361 BJV1 Bastidores: --- 2021
Yamaha XSR 700 ABS MTM690U 48 CV, 35 kw 2cil. RM121 B348 Bastidores: RM121 henceforth02101-- 2017
Yamaha XSR 700 ABS MTM690U 48 CV, 35 kw 2cil. RM121 B34B Bastidores: RM121 henceforth03280-- 2018
Yamaha XSR 700 ABS MTM690U 48 CV, 35 kw 2cil. RM122 B9J1 Bastidores: RM122 henceforth00135-- 2018
Yamaha XSR 700 ABS MTM690U 48 CV, 35 kw 2cil. RM122 B9J2 Bastidores: RM122 henceforth02181-- 2019
Yamaha XSR 700 ABS MTM690-U 48 CV, 35 kw 2cil. RM122 B9J3 Bastidores: RM122 henceforth03130-- 2020
Yamaha XSR 700 ABS MTM690-U 48 CV, 35 kw 2cil. RM371 BJW1 Bastidores: --- 2021
Yamaha XSR 700 Xtribute ABS MTM690D 48 CV, 35 kw 2cil. RM124 BCP1 Bastidores: RM124 henceforth00099-- 2019
Yamaha XSR 700 Xtribute ABS MTM690-D 73 CV, 54 kw 2cil. RM362 BJX1 Bastidores: RM362 henceforth00102-- 2021
Yamaha XSR 700 Xtribute ABS MTM690-D 73 CV, 54 kw 2cil. RM365 BJX2 Bastidores: RM365 henceforth00143-- 2022
Yamaha XSR 700 Xtribute ABS MTM690D 74,8 CV, 55 kw 2cil. RM114 BCN1 Bastidores: RM114 henceforth00091-- 2019
Yamaha XSR 700 Xtribute ABS MTM690-D 74,8 CV, 55 kw 2cil. RM114 BCN1 Bastidores: RM114 henceforth00091-- 2020
Yamaha XSR 700 Xtribute ABS MTM690-D-U 48 CV, 35 kw 2cil. RM124 BCP1 Bastidores: RM124 henceforth00099-- 2020
Yamaha XSR 700 Xtribute ABS MTM690-D-U 48 CV, 35 kw 2cil. RM372 BJY1 Bastidores: RM372 henceforth00080-- 2021
Yamaha XSR 700 Xtribute ABS MTM690-D-U 48 CV, 35 kw 2cil. RM375 BJY2 Bastidores: --- 2022
