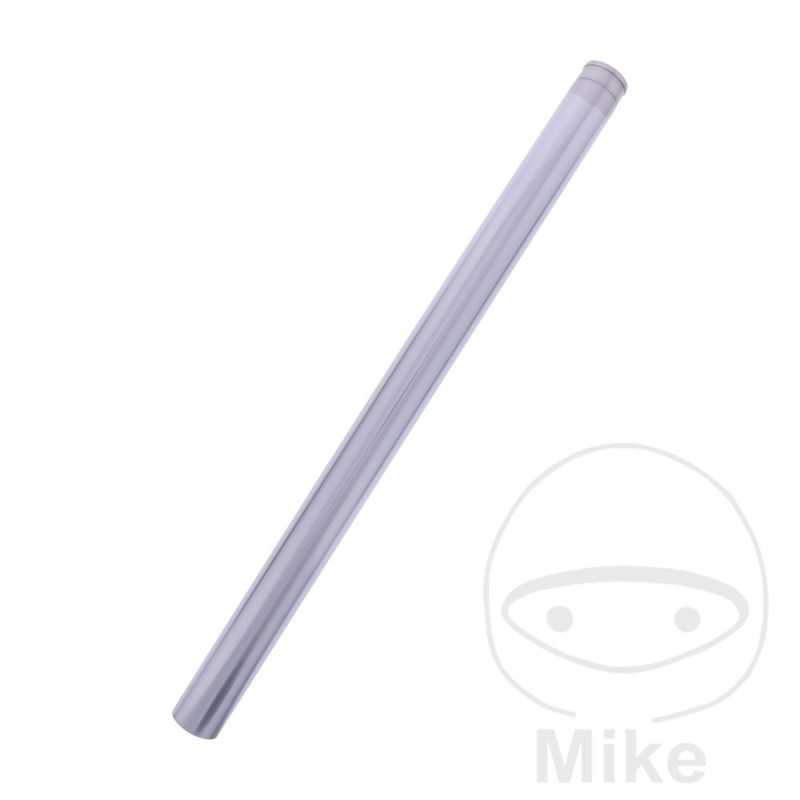

JMP Suspension fork tube 773.09.42

JMP Fork Sleeves

- made with high quality raw material

- special chrome coating with low breaking torque

- each standpipe undergoes a quality inspection before delivery

- manufactured on the most modern CNC machines in Central Europe
INVERTED FORK (UPSIDE DOWN): NO
OUTER DIAMETER: 41MM
INSIDE DIAMETER: 36.4MM
LENGTH: 614MM
TOP CONNECTION: FEMALE FITTING
LOWER TERMINAL: WITHOUT THREAD
THREAD: 38 X 1.0


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Suzuki AN 650 A Burgman Executive ABS 56 CV, 41 kw 2cil. WVBU1321 K4 Bastidores: BU1321 henceforth0100001-BU1321 henceforth0105118 2004
Suzuki AN 650 A Burgman Executive ABS 56 CV, 41 kw 2cil. WVBU1321 K5 Bastidores: BU1321 henceforth0105119-BU1321 henceforth0110445 2005
Suzuki AN 650 A Burgman Executive ABS 56 CV, 41 kw 2cil. WVBU1321 K6 Bastidores: BU1321 henceforth0110454-BU1321 henceforth0117024 2006
Suzuki AN 650 A Burgman Executive ABS 56 CV, 41 kw 2cil. WVBU1321 K7 Bastidores: BU1321 henceforth0117025-BU1321 henceforth0122999 2007
Suzuki AN 650 A Burgman Executive ABS 56 CV, 41 kw 2cil. WVBU1321 K8 Bastidores: BU1321 henceforth0123000-BU1321 henceforth0129694 2008
Suzuki AN 650 A Burgman Executive ABS 56 CV, 41 kw 2cil. WVBU1321 K9 Bastidores: BU1321 henceforth0129695-BU1321 henceforth0133404 2009
Suzuki AN 650 A Burgman Executive ABS 56 CV, 41 kw 2cil. WVBU1321 L0 Bastidores: BU1321 henceforth0133405-BU1321 henceforth0136754 2010
Suzuki AN 650 A Burgman Executive ABS 56 CV, 41 kw 2cil. WVBU1321 L1 Bastidores: BU1321 henceforth0136755-BU1321 henceforth0139747 2011
Suzuki AN 650 A Burgman Executive ABS 56 CV, 41 kw 2cil. WVBU1321 L2 Bastidores: BU1321 henceforth0139748-- 2012
Suzuki AN 650 Burgman 50 CV, 37 kw 2cil. WVBU1111 K3 Bastidores: BU1111 henceforth0100001-BU1111 henceforth0110495 2002-2003
Suzuki AN 650 Burgman 56 CV, 41 kw 2cil. WVBU1111 K4 Bastidores: BU1111 henceforth0110496-BU1111 henceforth0113618 2004
Suzuki AN 650 Burgman 56 CV, 41 kw 2cil. WVBU1111 K5 Bastidores: BU1111 henceforth0113619-BU1111 henceforth0113704 2005
Suzuki AN 650 Burgman 56 CV, 41 kw 2cil. WVBU1111 K6 Bastidores: BU1111 henceforth0113705-BU1111 henceforth0114139 2006
Suzuki AN 650 Burgman 56 CV, 41 kw 2cil. WVBU1111 K7 Bastidores: BU1111 henceforth0114140-BU1111 henceforth0114831 2007
Suzuki AN 650 Burgman 56 CV, 41 kw 2cil. WVBU1111 K8 Bastidores: BU1111 henceforth0114832-BU1111 henceforth0115219 2008
Suzuki AN 650 Burgman 56 CV, 41 kw 2cil. WVBU1111 K9 Bastidores: BU1111 henceforth0115220-BU1111 henceforth0115723 2009
Suzuki AN 650 Burgman 56 CV, 41 kw 2cil. WVBU1111 L0 Bastidores: BU1111 henceforth0115724-BU1111 henceforth0115803 2010
Suzuki AN 650 Burgman 56 CV, 41 kw 2cil. WVBU1111 L1 Bastidores: BU1111 henceforth0115804-BU1111 henceforth0115828 2011
Suzuki AN 650 Burgman ABS 56/48 CV, 41/35 kw 2cil. WVBU1111 L3 Bastidores: BU1111 henceforth0115829-BU1111 henceforth0116931 2013
Suzuki AN 650 Burgman ABS 56/48 CV, 41/35 kw 2cil. WVBU1111 L4 Bastidores: --- 2014
Suzuki AN 650 Burgman ABS 56/48 CV, 41/35 kw 2cil. WVBU1111 L5 Bastidores: BU1111 henceforth0116932-- 2015
Suzuki AN 650 Burgman ABS 56/48 CV, 41/35 kw 2cil. WVBU1111 L6 Bastidores: BU1111-G0100001-- 2016
Suzuki AN 650 L Burgman Executive 56 CV, 41 kw 2cil. WVBU1114 K3 Bastidores: BU1114 henceforth0100001-- 2003
Suzuki AN 650 Z Burgman Executive ABS 54 CV, 40 kw 2cil. WVBU1427 L8 Bastidores: BU1427-J0100001-BU1427-J0199999 2018-2021
Suzuki AN 650 Z Burgman Executive ABS 56/48 CV, 41/35 kw 2cil. WVBU1121 L3 Bastidores: BU1121 henceforth0100031-BU1121 henceforth0106168 2013
Suzuki AN 650 Z Burgman Executive ABS 56/48 CV, 41/35 kw 2cil. WVBU1121 L4 Bastidores: --- 2014
Suzuki AN 650 Z Burgman Executive ABS 56/48 CV, 41/35 kw 2cil. WVBU1121 L5 Bastidores: BU1121 henceforth0106169-- 2015
Suzuki AN 650 Z Burgman Executive ABS 56/48 CV, 41/35 kw 2cil. WVBU1121 L6 Bastidores: BU1121-G0100001-- 2016-2017
