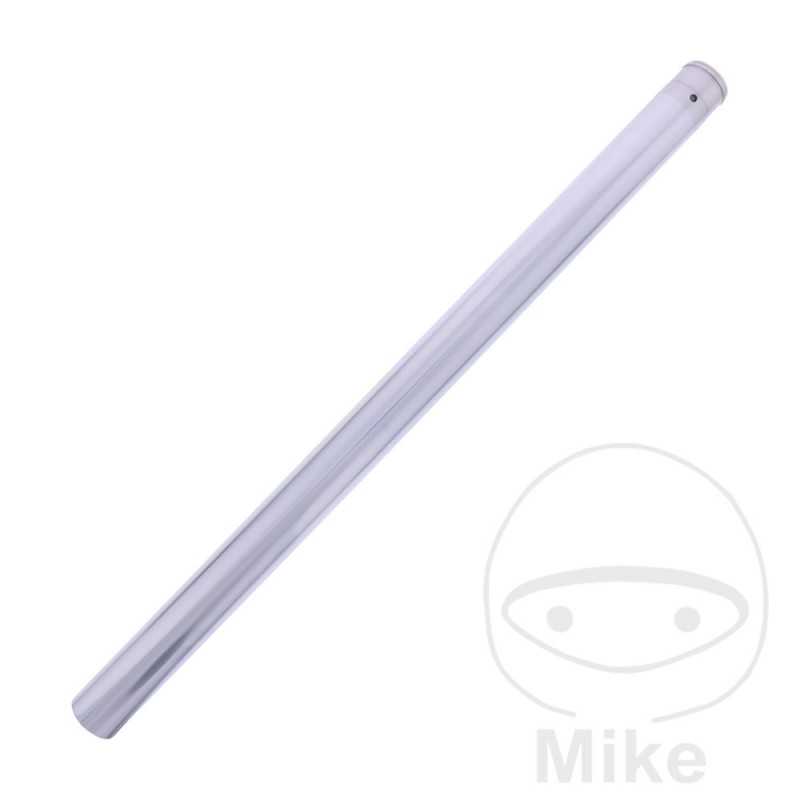

JMP Suspension fork tube 773.09.40

JMP Fork Sleeves

- made with high quality raw material

- special chrome coating with low breaking torque

- each standpipe undergoes a quality inspection before delivery

- manufactured on the most modern CNC machines in Central Europe
INVERTED FORK (UPSIDE DOWN): NO
Diameter, outside: 43 mm
INSIDE DIAMETER: 37.7MM
LENGTH: 695MM
TOP CONNECTION: FEMALE FITTING
LOWER TERMINAL: WITHOUT THREAD
THREAD: 40 X 1.25


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Yamaha VMX-12 1200 F Vmax 145 CV, 107 kw 4cil. 2WE 3JPF Bastidores: 2WE henceforth39101-2WE henceforth42999 1994
Yamaha VMX-12 1200 FC Vmax 145 CV, 107 kw 4cil. 2WF 3JPG Bastidores: 2WF henceforth09101-2WF henceforth10999 1994
Yamaha VMX-12 1200 G Vmax 145 CV, 107 kw 4cil. 2WE 3JPH Bastidores: 2WE henceforth43101-- 1995
Yamaha VMX-12 1200 GC Vmax 145 CV, 107 kw 4cil. 2WF 3JPJ Bastidores: 2WF henceforth11101-- 1995
Yamaha VMX-12 1200 Vmax 120 CV, 88 kw 4cil. 2EN 3LR8 Bastidores: 2EN henceforth31101-- 1993
Yamaha VMX-12 1200 Vmax 120 CV, 88 kw 4cil. 2EN 3LR9 Bastidores: 2EN henceforth41101-- 1993
Yamaha VMX-12 1200 Vmax 120/98 CV, 88/72 kw 4cil. 2EN 3LRA Bastidores: 2EN henceforth42101-- 1996
Yamaha VMX-12 1200 Vmax 120/98 CV, 88/72 kw 4cil. 2EN 3LRB Bastidores: 2EN henceforth50541-- 1996
Yamaha VMX-12 1200 Vmax 140/98 CV, 103/72 kw 4cil. 2LT 3JPR Bastidores: 2LT henceforth08371-- 1997-1998
Yamaha VMX-12 1200 Vmax 140/98 CV, 103/72 kw 4cil. VP031 3LRD Bastidores: VP031 henceforth01611-- 2001-2002
Yamaha VMX-12 1200 Vmax 98 CV, 72 kw 4cil. VP031 3LRC Bastidores: VP031 henceforth00301-- 1999-2000
