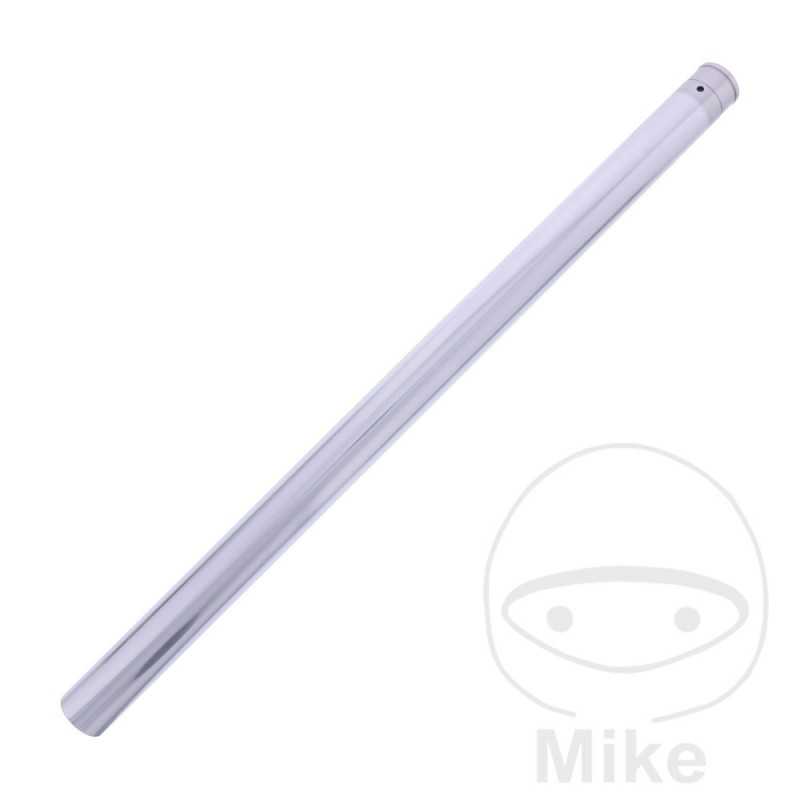

JMP Suspension fork tube 773.08.86

JMP Fork Sleeves

- made with high quality raw material

- special chrome coating with low breaking torque

- each standpipe undergoes a quality inspection before delivery

- manufactured on the most modern CNC machines in Central Europe
INVERTED FORK (UPSIDE DOWN): NO
Diameter, outside: 43 mm
INSIDE DIAMETER: 37.8MM
LENGTH: 735MM
TOP CONNECTION: THREAD
LOWER TERMINAL: WITHOUT THREAD
THREAD: 40 X 1.0


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Yamaha XT 660 Z Tenere 48 CV, 35 kw 1cil. DM021 11D1 Bastidores: DM021 henceforth00051-- 2008
Yamaha XT 660 Z Tenere 48 CV, 35 kw 1cil. DM021 11D2 Bastidores: DM021 henceforth08922-- 2009
Yamaha XT 660 Z Tenere 48 CV, 35 kw 1cil. DM025 11D6 Bastidores: DM025 henceforth00328-- 2010
Yamaha XT 660 Z Tenere 48 CV, 35 kw 1cil. DM025 11D8 Bastidores: DM025 henceforth01151-- 2011
Yamaha XT 660 Z Tenere 48 CV, 35 kw 1cil. DM025 11D9 Bastidores: DM025 henceforth02151-- 2012
Yamaha XT 660 ZA Tenere ABS 48 CV, 35 kw 1cil. DM024 56P1 Bastidores: DM024 henceforth00001-- 2011
