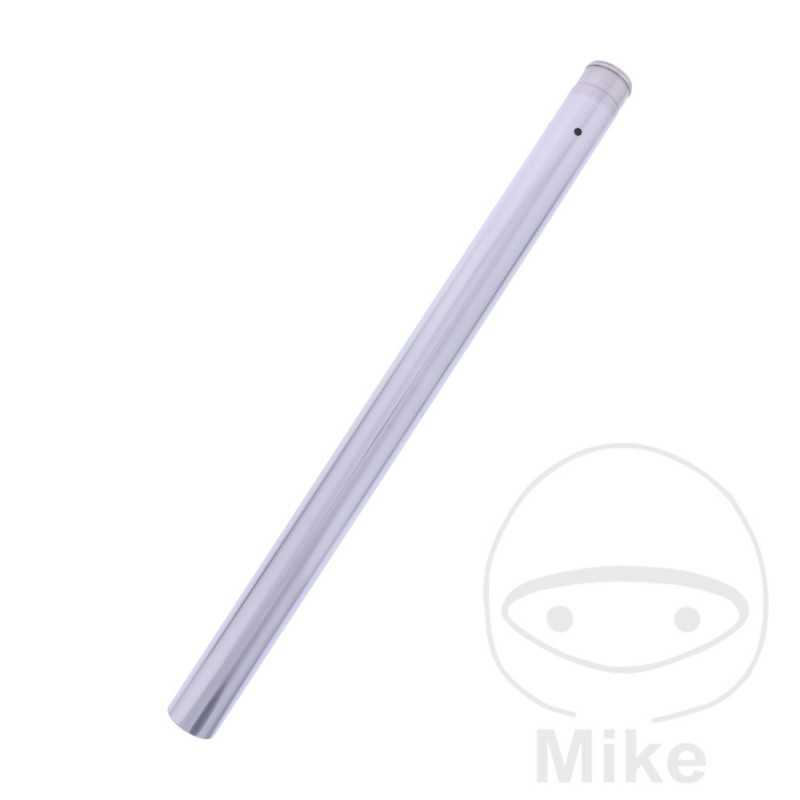

JMP Suspension fork tube 773.08.72

JMP Fork Sleeves

- made with high quality raw material

- special chrome coating with low breaking torque

- each standpipe undergoes a quality inspection before delivery

- manufactured on the most modern CNC machines in Central Europe
INVERTED FORK (UPSIDE DOWN): NO
Diameter, outside: 43 mm
INSIDE DIAMETER: 38.4MM
LENGTH: 614MM
TOP CONNECTION: FEMALE FITTING
LOWER TERMINAL: WITHOUT THREAD
THREAD: 39 X 1.0


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Suzuki GSF 1200 Bandit 98 CV, 72 kw 4cil. GV75A T Bastidores: GV75A henceforth00500001-GV75A henceforth00510751 1996
Suzuki GSF 1200 Bandit 98 CV, 72 kw 4cil. GV75A V Bastidores: GV75A henceforth00510752-GV75A henceforth00523032 1997
Suzuki GSF 1200 Bandit 98 CV, 72 kw 4cil. GV75A W Bastidores: GV75A henceforth00523033-GV75A henceforth00533930 1998
Suzuki GSF 1200 Bandit 98 CV, 72 kw 4cil. GV75A X Bastidores: GV75A henceforth00533931-GV75A henceforth00547329 1999
Suzuki GSF 1200 Bandit 98 CV, 72 kw 4cil. GV75A Y Bastidores: GV75A henceforth00547330-- 2000
Suzuki GSF 1200 Bandit 98 CV, 72 kw 4cil. WVA91121 K1 Bastidores: A91121 henceforth0100001-A91121 henceforth0103940 2001
Suzuki GSF 1200 Bandit 98 CV, 72 kw 4cil. WVA91121 K2 Bastidores: A91121 henceforth0103941-A91121 henceforth0107769 2002
Suzuki GSF 1200 Bandit 98 CV, 72 kw 4cil. WVA91121 K3 Bastidores: A91121 henceforth0107770-A91121 henceforth0109451 2003
Suzuki GSF 1200 Bandit 98 CV, 72 kw 4cil. WVA91121 K4 Bastidores: A91121 henceforth0109452-A91121 henceforth0111654 2004
Suzuki GSF 1200 Bandit 98 CV, 72 kw 4cil. WVA91121 K5 Bastidores: A91121 henceforth0111655-- 2005
Suzuki GSF 1200 S Bandit 98 CV, 72 kw 4cil. GV75A T Bastidores: GV75A henceforth00500001-GV75A henceforth00510751 1996
Suzuki GSF 1200 S Bandit 98 CV, 72 kw 4cil. GV75A V Bastidores: GV75A henceforth00510752-GV75A henceforth00523032 1997
Suzuki GSF 1200 S Bandit 98 CV, 72 kw 4cil. GV75A W Bastidores: GV75A henceforth00523033-GV75A henceforth00533930 1998
Suzuki GSF 1200 S Bandit 98 CV, 72 kw 4cil. GV75A X Bastidores: GV75A henceforth00533931-GV75A henceforth00547329 1999
Suzuki GSF 1200 S Bandit 98 CV, 72 kw 4cil. GV75A Y Bastidores: GV75A henceforth00547330-- 2000
Suzuki GSF 1200 S Bandit 98 CV, 72 kw 4cil. WVA91111 K1 Bastidores: A91111 henceforth0100001-A91111 henceforth0107178 2001
Suzuki GSF 1200 S Bandit 98 CV, 72 kw 4cil. WVA91111 K2 Bastidores: A91111 henceforth0107179-A91111 henceforth0117148 2002
Suzuki GSF 1200 S Bandit 98 CV, 72 kw 4cil. WVA91111 K3 Bastidores: A91111 henceforth0117149-A91111 henceforth0122708 2003
Suzuki GSF 1200 S Bandit 98 CV, 72 kw 4cil. WVA91111 K4 Bastidores: A91111 henceforth0122709-A91111 henceforth0127243 2004
Suzuki GSF 1200 S Bandit 98 CV, 72 kw 4cil. WVA91111 K5 Bastidores: A91111 henceforth0127244-- 2005
Suzuki GSF 1200 SA Bandit ABS 98 CV, 72 kw 4cil. GV75A V Bastidores: GV75A henceforth00510752-GV75A henceforth00523032 1997
Suzuki GSF 1200 SA Bandit ABS 98 CV, 72 kw 4cil. GV75A W Bastidores: GV75A henceforth00523033-GV75A henceforth00533930 1998
Suzuki GSF 1200 SA Bandit ABS 98 CV, 72 kw 4cil. GV75A X Bastidores: GV75A henceforth00533931-GV75A henceforth00547329 1999
Suzuki GSF 1200 SA Bandit ABS 98 CV, 72 kw 4cil. GV75A Y Bastidores: GV75A henceforth00547330-- 2000
Suzuki GSF 1200 SZ Bandit ABS 98 CV, 72 kw 4cil. WVA91111 K5 Bastidores: A91111 henceforth0127254-- 2005
