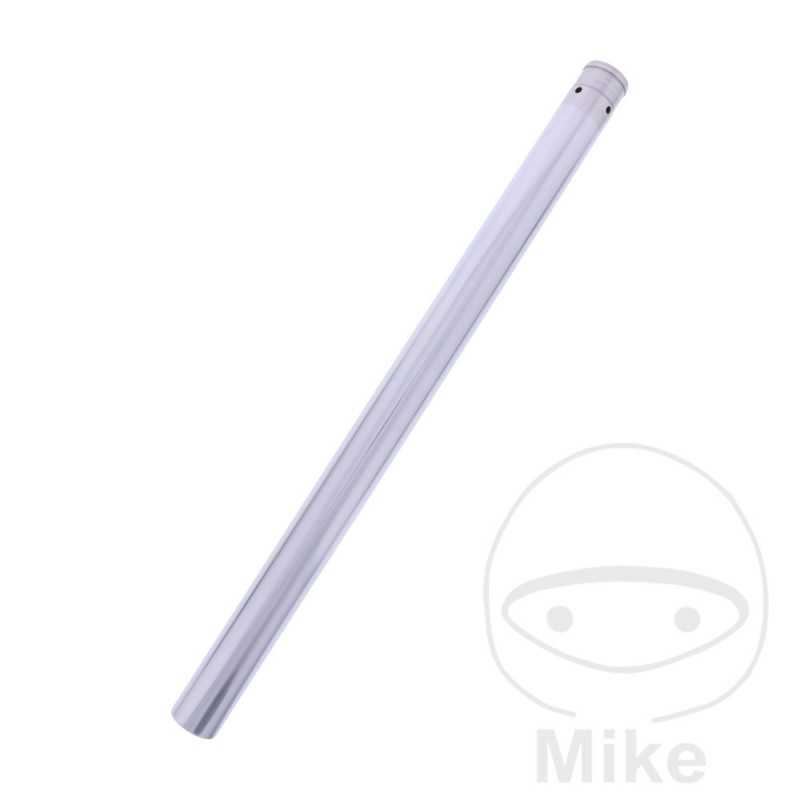

JMP Suspension fork tube 773.08.47

JMP Fork Sleeves

- made with high quality raw material

- special chrome coating with low breaking torque

- each standpipe undergoes a quality inspection before delivery

- manufactured on the most modern CNC machines in Central Europe
INVERTED FORK (UPSIDE DOWN): NO
OUTER DIAMETER: 41MM
INSIDE DIAMETER: 36.3MM
LENGTH: 613MM
TOP CONNECTION: FEMALE FITTING
LOWER TERMINAL: WITHOUT THREAD
THREAD: 37 X 1.0


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Suzuki SFV 650 A Gladius ABS 72 CV, 53 kw 2cil. WVCX1121 L1 Bastidores: CX1121 henceforth0103708-CX1121 henceforth0106215 2011
Suzuki SFV 650 A Gladius ABS 72 CV, 53 kw 2cil. WVCX1121 L2 Bastidores: CX1121 henceforth0106216-CX1121 henceforth0107863 2012
Suzuki SFV 650 A Gladius ABS 72 CV, 53 kw 2cil. WVCX1121 L3 Bastidores: CX1121 henceforth0107864-CX1121 henceforth0110077 2013
Suzuki SFV 650 A Gladius ABS 72 CV, 53 kw 2cil. WVCX1121 L4 Bastidores: CX1121 henceforth0110078-CX1121 henceforth0110099 2014
Suzuki SFV 650 A Gladius ABS 72 CV, 53 kw 2cil. WVCX1121 L5 Bastidores: CX1121 henceforth0110100-- 2015-2016
Suzuki SFV 650 A Gladius ABS 72 CV, 53 kw 2cil. WVCX1122 K9 Bastidores: CX1122 henceforth0100001-CX1122 henceforth0101932 2009
Suzuki SFV 650 A Gladius ABS 72 CV, 53 kw 2cil. WVCX1122 L0 Bastidores: CX1122 henceforth0101933-- 2010
Suzuki SFV 650 AUE Gladius ABS 48 CV, 35 kw 2cil. WVCX2121 L3 Bastidores: CX2121 henceforth0100295-CX2121 henceforth0100425 2013
Suzuki SFV 650 AUE Gladius ABS 48 CV, 35 kw 2cil. WVCX2121 L4 Bastidores: CX2121 henceforth0100426-CX2121 henceforth0100430 2014
Suzuki SFV 650 AUE Gladius ABS 48 CV, 35 kw 2cil. WVCX2121 L5 Bastidores: CX2121 henceforth0100431-- 2015-2016
Suzuki SFV 650 Gladius 72 CV, 53 kw 2cil. WVCX1111 K9 Bastidores: CX1111 henceforth0100001-CX1111 henceforth0107132 2009
Suzuki SFV 650 Gladius 72 CV, 53 kw 2cil. WVCX1111 L0 Bastidores: CX1111 henceforth0107133-CX1111 henceforth0108641 2010
Suzuki SFV 650 Gladius 72 CV, 53 kw 2cil. WVCX1111 L1 Bastidores: CX1111 henceforth0108642-CX1111 henceforth0110838 2011
Suzuki SFV 650 Gladius 72 CV, 53 kw 2cil. WVCX1111 L2 Bastidores: CX1111 henceforth0110839-CX1111 henceforth0112027 2012
Suzuki SFV 650 Gladius 72 CV, 53 kw 2cil. WVCX1111 L3 Bastidores: CX1111 henceforth0112028-CX1111 henceforth0113265 2013
Suzuki SFV 650 Gladius 72 CV, 53 kw 2cil. WVCX1111 L4 Bastidores: CX1111 henceforth0113266-CX1111 henceforth0114655 2014
Suzuki SFV 650 Gladius 72 CV, 53 kw 2cil. WVCX1111 L5 Bastidores: CX1111 henceforth0114656-- 2015-2016
Suzuki SFV 650 U Gladius 34 CV, 25 kw 2cil. WVCX2111 K9 Bastidores: CX2111 henceforth0100001-CX2111 henceforth0102965 2009
Suzuki SFV 650 U Gladius 34 CV, 25 kw 2cil. WVCX2111 L0 Bastidores: CX2111 henceforth0102966-CX2111 henceforth0104622 2010
Suzuki SFV 650 U Gladius 34 CV, 25 kw 2cil. WVCX2111 L1 Bastidores: CX2111 henceforth0104623-- 2011
Suzuki SFV 650 U Gladius 34 CV, 25 kw 2cil. WVCX2111 L2 Bastidores: CX2111 henceforth0104623-- 2012
Suzuki SFV 650 U Gladius 48 CV, 35 kw 2cil. WVCX2111 L3 Bastidores: CX2111 henceforth0104623-- 2013
Suzuki SFV 650 U Gladius 48 CV, 35 kw 2cil. WVCX2111 L4 Bastidores: CX2111 henceforth0104623-- 2014
Suzuki SFV 650 U Gladius 48 CV, 35 kw 2cil. WVCX2111 L5 Bastidores: CX2111 henceforth0104623-- 2015-2016
Suzuki SFV 650 UA Gladius ABS 34 CV, 25 kw 2cil. WVCX2121 K9 Bastidores: CX2121 henceforth0100001-CX2121 henceforth0100060 2009
Suzuki SFV 650 UA Gladius ABS 34 CV, 25 kw 2cil. WVCX2121 L0 Bastidores: CX2121 henceforth0100061-CX2121 henceforth0100180 2010
Suzuki SFV 650 UA Gladius ABS 34 CV, 25 kw 2cil. WVCX2121 L1 Bastidores: CX2121 henceforth0100181-CX2121 henceforth0100280 2011
Suzuki SFV 650 UA Gladius ABS 34 CV, 25 kw 2cil. WVCX2121 L2 Bastidores: CX2121 henceforth0100281-CX2121 henceforth0100294 2012
Suzuki SV 650 XA ABS 76 CV, 56 kw 2cil. CX1246 L8 Bastidores: CX1246-J0100001-CX1246-J0199999 2018
Suzuki SV 650 XAU ABS 48 CV, 35 kw 2cil. CX2446 L8 Bastidores: CX2446-J0100001-CX2446-J0199999 2018
