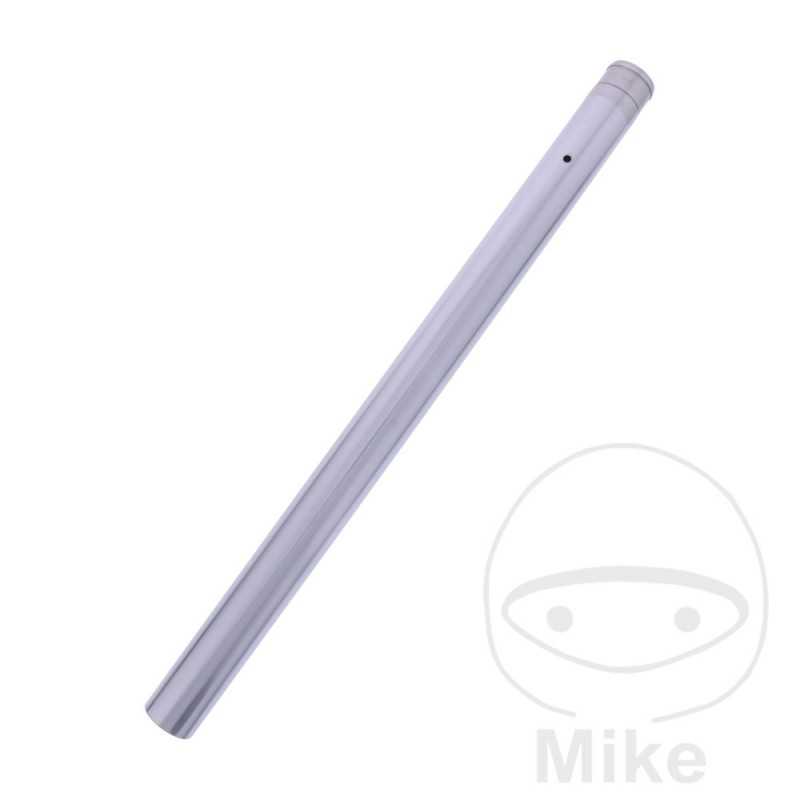

JMP Suspension fork tube 773.08.46

JMP Fork Sleeves

- made with high quality raw material

- special chrome coating with low breaking torque

- each standpipe undergoes a quality inspection before delivery

- manufactured on the most modern CNC machines in Central Europe
INVERTED FORK (UPSIDE DOWN): NO
Diameter, outside: 43 mm
INNER DIAMETER: 38MM
LENGTH: 613MM
TOP CONNECTION: THREAD
LOWER TERMINAL: WITHOUT THREAD
THREAD: 40 X 1.0


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Kawasaki ZRX 1200 C 122 CV, 90 kw 4cil. ZRT20ACA 1P Bastidores: ZRT20ACA henceforth00001-ZRT20ACA henceforth25000 2001-2002
Kawasaki ZRX 1200 C 122 CV, 90 kw 4cil. ZRT20ACA 2P Bastidores: ZRT20ACA henceforth25001-ZRT20ACA henceforth35000 2003
Kawasaki ZRX 1200 C 122 CV, 90 kw 4cil. ZRT20ACA 3H Bastidores: ZRT20ACA-350001-ZRT20ACA-999999 2004
Kawasaki ZRX 1200 C 34 CV, 25 kw 4cil. ZRT20ACA 1P Bastidores: ZRT20ACA henceforth00001-ZRT20ACA henceforth25000 2001-2002
Kawasaki ZRX 1200 C 34 CV, 25 kw 4cil. ZRT20ACA 2P Bastidores: ZRT20ACA henceforth25001-ZRT20ACA henceforth35000 2003
Kawasaki ZRX 1200 C 34 CV, 25 kw 4cil. ZRT20ACA 3H Bastidores: ZRT20ACA-350001-ZRT20ACA-999999 2004
Kawasaki ZRX 1200 R carenado manillar 122 CV, 90 kw 4cil. ZRT20AAA A1P Bastidores: ZRT20AAA henceforth00001-ZRT20AAA henceforth15000 2001
Kawasaki ZRX 1200 R carenado manillar 122 CV, 90 kw 4cil. ZRT20AAA A2P Bastidores: ZRT20AAA henceforth15001-ZRT20AAA henceforth25000 2002
Kawasaki ZRX 1200 R carenado manillar 122 CV, 90 kw 4cil. ZRT20AAA A3P Bastidores: ZRT20AAA henceforth25001-ZRT20AAA henceforth35000 2003
Kawasaki ZRX 1200 R carenado manillar 34 CV, 25 kw 4cil. ZRT20AAA A1P Bastidores: ZRT20AAA henceforth00001-ZRT20AAA henceforth15000 2001
Kawasaki ZRX 1200 R carenado manillar 34 CV, 25 kw 4cil. ZRT20AAA A2P Bastidores: ZRT20AAA henceforth15001-ZRT20AAA henceforth25000 2002
Kawasaki ZRX 1200 R carenado manillar 34 CV, 25 kw 4cil. ZRT20AAA A3P Bastidores: ZRT20AAA henceforth25001-ZRT20AAA henceforth35000 2003
Kawasaki ZRX 1200 S semicarenado 122 CV, 90 kw 4cil. ZRT20ABA B1P Bastidores: ZRT20ABA henceforth00001-ZRT20ABA henceforth15000 2001
Kawasaki ZRX 1200 S semicarenado 122 CV, 90 kw 4cil. ZRT20ABA B2P Bastidores: ZRT20ABA henceforth15001-ZRT20ABA henceforth25000 2002
Kawasaki ZRX 1200 S semicarenado 122 CV, 90 kw 4cil. ZRT20ABA B3P Bastidores: ZRT20ABA henceforth25001-ZRT20ABA henceforth35000 2003
Kawasaki ZRX 1200 S semicarenado 34 CV, 25 kw 4cil. ZRT20ABA B1P Bastidores: ZRT20ABA henceforth00001-ZRT20ABA henceforth15000 2001
Kawasaki ZRX 1200 S semicarenado 34 CV, 25 kw 4cil. ZRT20ABA B2P Bastidores: ZRT20ABA henceforth15001-ZRT20ABA henceforth25000 2002
Kawasaki ZRX 1200 S semicarenado 34 CV, 25 kw 4cil. ZRT20ABA B3P Bastidores: ZRT20ABA henceforth25001-ZRT20ABA henceforth35000 2003
