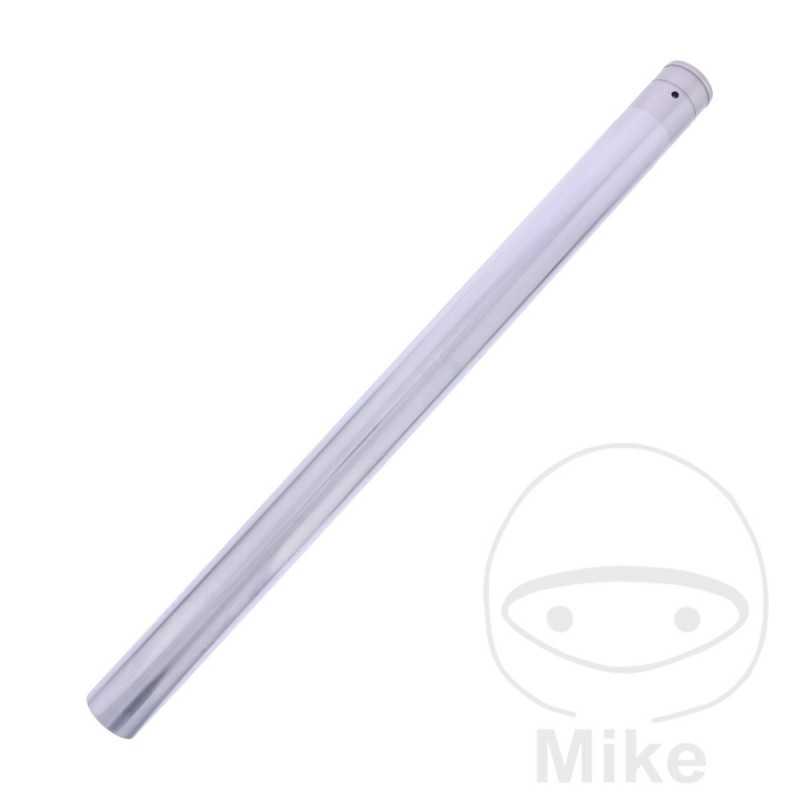

JMP Suspension fork tube 773.08.32

JMP Fork Sleeves

- made with high quality raw material

- special chrome coating with low breaking torque

- each standpipe undergoes a quality inspection before delivery

- manufactured on the most modern CNC machines in Central Europe
INVERTED FORK (UPSIDE DOWN): NO
OUTER DIAMETER: 49MM
INSIDE DIAMETER: 44.5MM
LENGTH: 685MM
TOP CONNECTION: FEMALE FITTING
LOWER TERMINAL: WITHOUT THREAD
THREAD: 46 X 1.0


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Harley Davidson FXDWG 1584 Dyna Wide Glide 78 CV, 57 kw 2cil. GP4 FD2 Bastidores: --- 2010-2011
Harley Davidson FXDWG 1584 Dyna Wide Glide ABS 78 CV, 57 kw 2cil. GP4 FD2 Bastidores: --- 2012
Harley Davidson FXDWG 1690 Dyna Wide Glide ABS 79 CV, 58 kw 2cil. GPM FD2 Bastidores: --- 2013-2016
Harley Davidson FXDWG 1690 Dyna Wide Glide ABS 80/46 CV, 59/34 kw 2cil. GPM FD2 Bastidores: --- 2017
