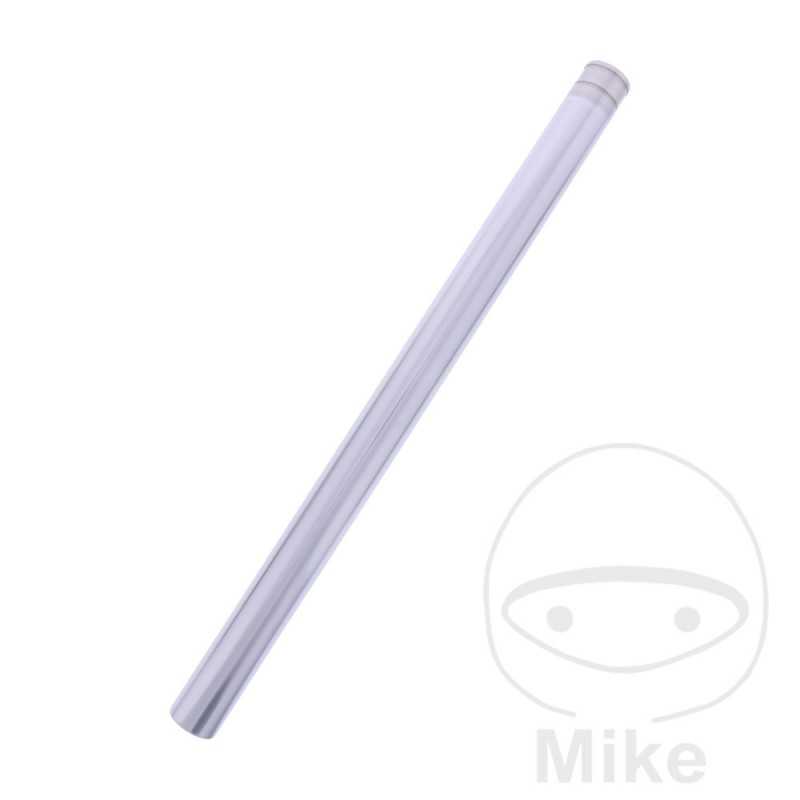

JMP Suspension fork tube 773.08.25

JMP Fork Sleeves

- made with high quality raw material

- special chrome coating with low breaking torque

- each standpipe undergoes a quality inspection before delivery

- manufactured on the most modern CNC machines in Central Europe
INVERTED FORK (UPSIDE DOWN): NO
OUTER DIAMETER: 41MM
INSIDE DIAMETER: 35.7MM
LENGTH: 604MM
TOP CONNECTION: FEMALE FITTING
LOWER TERMINAL: WITHOUT THREAD
THREAD: 38 X 1.0


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Yamaha XVS 1100 A Drag Star Classic 62 CV, 45,5 kw 2cil. VP055 5KS4 Bastidores: VP055 henceforth00301-- 2000
Yamaha XVS 1100 A Drag Star Classic 62 CV, 45,5 kw 2cil. VP055 5KSB Bastidores: VP055 henceforth05888-- 2001
Yamaha XVS 1100 A Drag Star Classic 62 CV, 45,5 kw 2cil. VP055 5KSG Bastidores: VP055 henceforth09075-- 2002
Yamaha XVS 1100 A Drag Star Classic 62 CV, 45,5 kw 2cil. VP161 5KSN Bastidores: VP161 henceforth00301-- 2003-2004
Yamaha XVS 1100 A Drag Star Classic 62 CV, 45,5 kw 2cil. VP161 5YSF Bastidores: VP161 henceforth05479-- 2005
Yamaha XVS 1100 A Drag Star Classic 62 CV, 45,5 kw 2cil. VP161 5YSR Bastidores: VP161 henceforth10352-- 2006-2007
