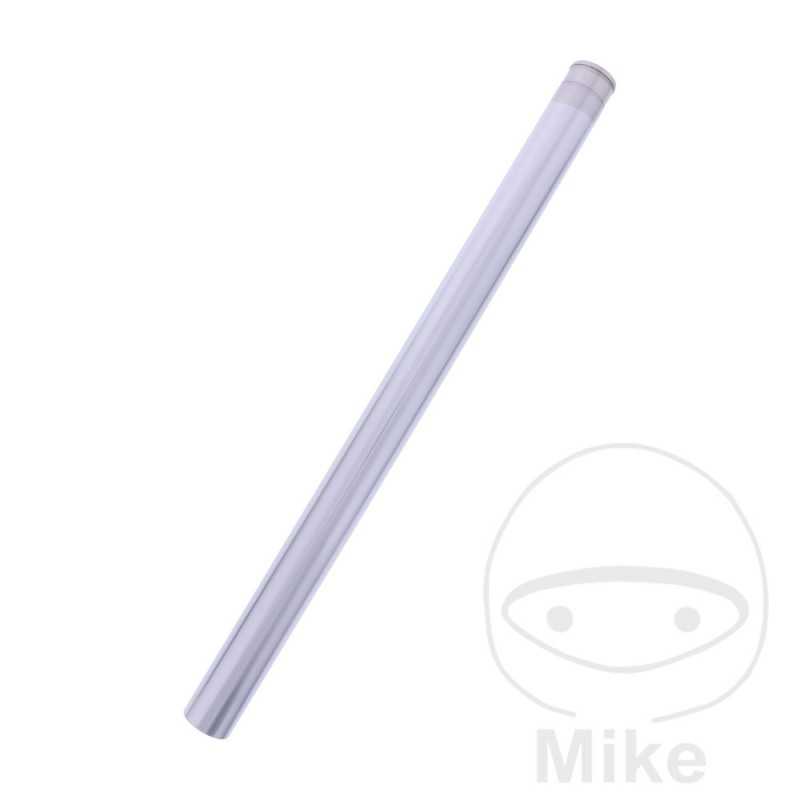

JMP Suspension fork tube 773.08.22

JMP Fork Sleeves

- made with high quality raw material

- special chrome coating with low breaking torque

- each standpipe undergoes a quality inspection before delivery

- manufactured on the most modern CNC machines in Central Europe
INVERTED FORK (UPSIDE DOWN): NO
OUTER DIAMETER: 41MM
INSIDE DIAMETER: 35.7MM
LENGTH: 595MM
TOP CONNECTION: FEMALE FITTING
LOWER TERMINAL: WITHOUT THREAD
THREAD: 38 X 1.0


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Yamaha XVS 650 AH Drag Star Classic 40 CV, 29 kw 2cil. VM035 5BNV Bastidores: VM035 henceforth01106-- 2001
Yamaha XVS 650 AH Drag Star Classic 40 CV, 29 kw 2cil. VM035 5SC5 Bastidores: VM035 henceforth03698-- 2002-2003
Yamaha XVS 650 AN Drag Star Classic 34 CV, 25 kw 2cil. VM035 5SC6 Bastidores: --- 2002-2003
Yamaha XVS 650 AN Drag Star Classic 34 CV, 25 kw 2cil. VM036 5BNW Bastidores: VM036 henceforth00301-- 2001
Yamaha XVS 650 H Drag Star 40 CV, 29 kw 2cil. VM031 4VRD Bastidores: VM031 henceforth00301-- 2001
Yamaha XVS 650 H Drag Star 40 CV, 29 kw 2cil. VM031 4VRE Bastidores: VM031 henceforth03035-- 2002-2003
Yamaha XVS 650 N Drag Star 34 CV, 25 kw 2cil. VM032 4XRD Bastidores: VM032 henceforth00301-- 2001
Yamaha XVS 650 N Drag Star 34 CV, 25 kw 2cil. VM032 4XRE Bastidores: --- 2002-2003
