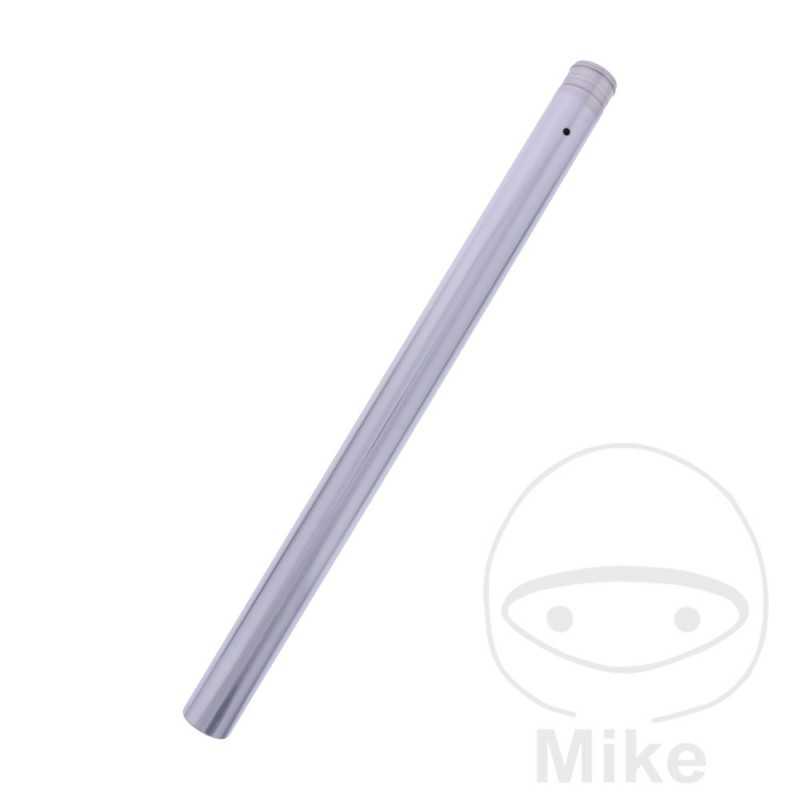

JMP Suspension fork tube 773.08.11

JMP Fork Sleeves

- made with high quality raw material

- special chrome coating with low breaking torque

- each standpipe undergoes a quality inspection before delivery

- manufactured on the most modern CNC machines in Central Europe
INVERTED FORK (UPSIDE DOWN): NO
Diameter, outside: 43 mm
INSIDE DIAMETER: 37.7MM
LENGTH: 614MM
TOP CONNECTION: FEMALE FITTING
LOWER TERMINAL: WITHOUT THREAD
THREAD: 39 X 1.0


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Suzuki GSF 1200 A Bandit ABS 98 CV, 72 kw 4cil. WVCB1141 K6 Bastidores: CB1141 henceforth0100001-- 2006
Suzuki GSF 1200 Bandit 98 CV, 72 kw 4cil. WVCB1121 K6 Bastidores: CB1121 henceforth0100001-- 2006
Suzuki GSF 1200 S Bandit 98 CV, 72 kw 4cil. WVCB1111 K6 Bastidores: CB1111 henceforth0100001-- 2006
Suzuki GSF 1200 SA Bandit ABS 98 CV, 72 kw 4cil. WVCB1131 K6 Bastidores: CB1131 henceforth0100001-- 2006
Suzuki GSF 1250 A Bandit ABS 98 CV, 72 kw 4cil. WVCH1241 K7 Bastidores: CH1241 henceforth0100001-CH1241 henceforth0101189 2007
Suzuki GSF 1250 A Bandit ABS 98 CV, 72 kw 4cil. WVCH1241 K8 Bastidores: CH1241 henceforth0101190-CH1241 henceforth0102460 2008
Suzuki GSF 1250 A Bandit ABS 98 CV, 72 kw 4cil. WVCH1241 K9 Bastidores: CH1241 henceforth0102461-CH1241 henceforth0102906 2009
Suzuki GSF 1250 A Bandit ABS 98 CV, 72 kw 4cil. WVCH1241 L0 Bastidores: CH1241 henceforth0102907-CH1241 henceforth0103844 2010
Suzuki GSF 1250 A Bandit ABS 98 CV, 72 kw 4cil. WVCH1241 L1 Bastidores: CH1241 henceforth0103845-- 2011-2012
Suzuki GSF 1250 Bandit 98 CV, 72 kw 4cil. WVCH1221 K7 Bastidores: CH1221 henceforth0100001-CH1221 henceforth0100803 2007
Suzuki GSF 1250 Bandit 98 CV, 72 kw 4cil. WVCH1221 K8 Bastidores: CH1221 henceforth0100804-CH1222 henceforth0100794 2008
Suzuki GSF 1250 Bandit 98 CV, 72 kw 4cil. WVCH1221 K9 Bastidores: CH1221 henceforth0100795-CH1221 henceforth0101607 2009
Suzuki GSF 1250 Bandit 98 CV, 72 kw 4cil. WVCH1221 L0 Bastidores: CH1221 henceforth0101608-CH1221 henceforth0101987 2010
Suzuki GSF 1250 Bandit 98 CV, 72 kw 4cil. WVCH1221 L1 Bastidores: CH1221 henceforth0101988-- 2011
Suzuki GSF 1250 S Bandit 98 CV, 72 kw 4cil. WVCH1111 K7 Bastidores: CH1111 henceforth0100001-CH1111 henceforth0100907 2007
Suzuki GSF 1250 S Bandit 98 CV, 72 kw 4cil. WVCH1111 K8 Bastidores: CH1111 henceforth0100908-CH1111 henceforth0101953 2008
Suzuki GSF 1250 S Bandit 98 CV, 72 kw 4cil. WVCH1111 K9 Bastidores: CH1111 henceforth0101954-CH1111 henceforth0102175 2009
Suzuki GSF 1250 S Bandit 98 CV, 72 kw 4cil. WVCH1111 L0 Bastidores: CH1111 henceforth0102176-CH1111 henceforth0102294 2010
Suzuki GSF 1250 SA Bandit ABS 98 CV, 72 kw 4cil. WVCH1131 K7 Bastidores: CH1131 henceforth0100001-CH1131 henceforth0105038 2007
Suzuki GSF 1250 SA Bandit ABS 98 CV, 72 kw 4cil. WVCH1131 K8 Bastidores: CH1131 henceforth0105039-CH1131 henceforth0112042 2008
Suzuki GSF 1250 SA Bandit ABS 98 CV, 72 kw 4cil. WVCH1131 K9 Bastidores: CH1131 henceforth0112043-CH1131 henceforth0114248 2009
Suzuki GSF 1250 SA Bandit ABS 98 CV, 72 kw 4cil. WVCH1131 L0 Bastidores: CH1131 henceforth0114249-CH1131 henceforth0115838 2010
Suzuki GSF 1250 SA Bandit ABS 98 CV, 72 kw 4cil. WVCH1131 L1 Bastidores: CH1131 henceforth0115839-CH1131 henceforth0116533 2011
Suzuki GSF 1250 SA Bandit ABS 98 CV, 72 kw 4cil. WVCH1131 L2 Bastidores: CH1131 henceforth0116534-- 2012-2014
Suzuki GSF 1250 SA Bandit ABS 98 CV, 72 kw 4cil. WVCH1131 L5 Bastidores: CH1131 henceforth0117779-CH1131 henceforth0199999 2015
Suzuki GSF 1250 SA Bandit ABS 98 CV, 72 kw 4cil. WVCH1131 L6 Bastidores: CH1131-G0100001-CH1131-G0199999 2016-2017
