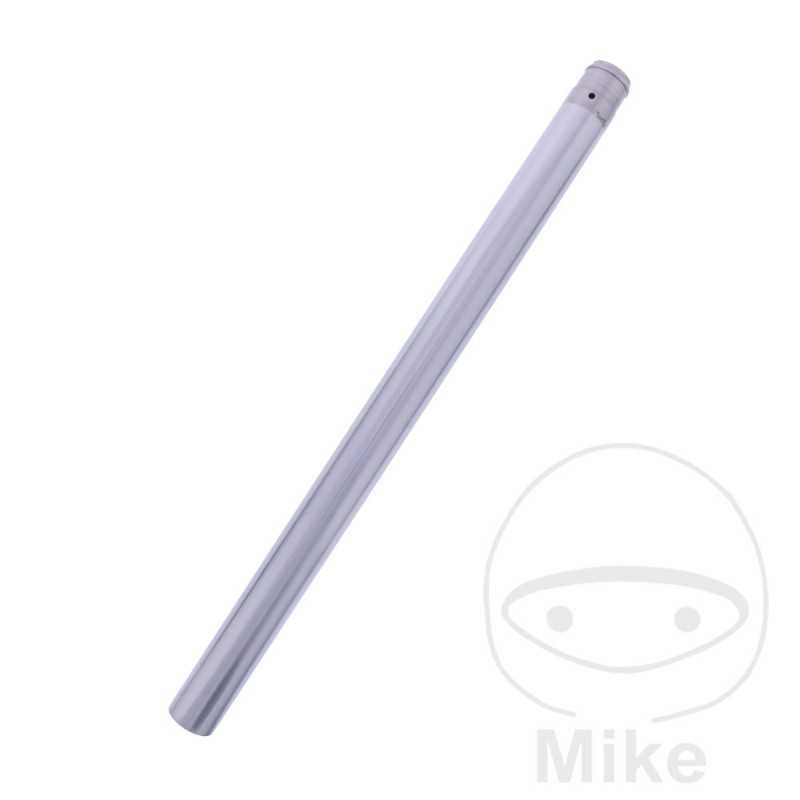

JMP Suspension fork tube 773.08.02

JMP fork tubes

- made with high quality raw material

- special chrome coating with low breaking torque

- each standpipe undergoes a quality inspection before delivery

- manufactured on the most modern CNC machines in Central Europe
INVERTED FORK (UPSIDE DOWN): NO
OUTSIDE DIAMETER: 41.25MM
INNER DIAMETER: 33MM
LENGTH: 615MM
TOP CONNECTION: FEMALE FITTING
LOWER TERMINAL: WITHOUT THREAD
THREAD: 35 X 1.5


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Harley Davidson FLST 1340 Heritage Softail 46 CV, 34 kw 2cil. BJL Bastidores: --- 1988-1989
Harley Davidson FLST 1340 Heritage Softail 49 CV, 36 kw 2cil. BJL Bastidores: --- 1990
Harley Davidson FLST 1340 Heritage Softail 58 CV, 42 kw 2cil. BJL Bastidores: --- 1987-1989
Harley Davidson FLSTC 1340 Heritage Softail Classic 46 CV, 34 kw 2cil. BJL Bastidores: --- 1988-1989
Harley Davidson FLSTC 1340 Heritage Softail Classic 49 CV, 36 kw 2cil. BJL Bastidores: --- 1990
Harley Davidson FLSTC 1340 Heritage Softail Classic 58 CV, 42 kw 2cil. BJL Bastidores: --- 1988-1989
Harley Davidson FLSTF 1340 Fat Boy 34 CV,25 kw 2cil. BML FXST Bastidores: --- 1997
Harley Davidson FLSTF 1340 Fat Boy 49 CV, 36 kw 2cil. BML Bastidores: --- 1990
Harley Davidson FLSTF 1340 Fat Boy 50 CV, 37 kw 2cil. BML FXST Bastidores: --- 1997
Harley Davidson FLSTF 1340 Fat Boy 55 CV, 41 kw 2cil. BML FXST Bastidores: --- 1997
Harley Davidson FLSTS 1340 Heritage Softail Springer 34 CV, 25 kw 2cil. BRL FXST Bastidores: --- 1997
Harley Davidson FLSTS 1340 Heritage Softail Springer 48 CV, 35 kw 2cil. BRL FXST Bastidores: --- 1997
Harley Davidson FLSTS 1340 Heritage Softail Springer 56 CV, 41 kw 2cil. BRL FXST Bastidores: --- 1997
Harley Davidson FXDS-CON 1340 Dyna Glide Convertible 34 CV, 25 kw 2cil. GGL FXD Bastidores: --- 1997-1998
Harley Davidson FXDS-CON 1340 Dyna Glide Convertible 50 CV, 37 kw 2cil. GGL FXD Bastidores: --- 1997-1998
Harley Davidson FXDS-CON 1340 Dyna Glide Convertible 56 CV, 41 kw 2cil. GGL FXD Bastidores: --- 1997-1998
Harley Davidson FXDWG 1340 Dyna Wide Glide 34 CV, 25 kw 2cil. GEL FXD Bastidores: --- 1996-1998
Harley Davidson FXDWG 1340 Dyna Wide Glide 48 CV, 35 kw 2cil. GEL FXD Bastidores: --- 1993-1994
Harley Davidson FXDWG 1340 Dyna Wide Glide 50 CV, 37 kw 2cil. GEL FXD Bastidores: --- 1995-1998
Harley Davidson FXDWG 1340 Dyna Wide Glide 55 CV, 41 kw 2cil. GEL FXD Bastidores: --- 1995-1996
Harley Davidson FXDWG 1340 Dyna Wide Glide 56 CV, 41 kw 2cil. GEL FXD Bastidores: --- 1997-1998
Harley Davidson FXDWG 1450 Dyna Wide Glide 34 CV, 25 kw 2cil. GEV FXD Bastidores: --- 1999
Harley Davidson FXDWG 1450 Dyna Wide Glide 68 CV, 50 kw 2cil. GEV FXD Bastidores: --- 1999
Harley Davidson FXST 1340 Softail 46 CV, 34 kw 2cil. BHL FXST Bastidores: --- 1988-1989
Harley Davidson FXST 1340 Softail 49 CV, 36 kw 2cil. BHL FXST Bastidores: --- 1990
Harley Davidson FXST 1340 Softail 58 CV, 42 kw 2cil. BHL FXST Bastidores: --- 1987-1989
Harley Davidson FXST 1340 Softail Standard 34 CV, 25 kw 2cil. BHL FXST Bastidores: --- 1999
Harley Davidson FXST 1340 Softail Standard 56 CV, 41 kw 2cil. BHL FXST Bastidores: --- 1999
Harley Davidson FXSTB 1340 Night Train 34 CV, 25 kw 2cil. BTL FXST Bastidores: --- 1999
Harley Davidson FXSTB 1340 Night Train 56 CV, 41 kw 2cil. BTL FXST Bastidores: --- 1999
Harley Davidson FXSTC 1340 Softail Custom 34 CV, 25 kw 2cil. BKL FXST Bastidores: --- 1996-1998
Harley Davidson FXSTC 1340 Softail Custom 46 CV, 34 kw 2cil. BKL FXST Bastidores: --- 1988-1989
Harley Davidson FXSTC 1340 Softail Custom 48 CV, 35 kw 2cil. BKL FXST Bastidores: --- 1993-1994
Harley Davidson FXSTC 1340 Softail Custom 49 CV, 36 kw 2cil. BKL FXST Bastidores: --- 1990-1992
Harley Davidson FXSTC 1340 Softail Custom 50 CV, 37 kw 2cil. BKL FXST Bastidores: --- 1995-1998
Harley Davidson FXSTC 1340 Softail Custom 55 CV, 41 kw 2cil. BKL FXST Bastidores: --- 1995-1996
Harley Davidson FXSTC 1340 Softail Custom 56 CV, 41 kw 2cil. BKL FXST Bastidores: --- 1997-1998
Harley Davidson FXSTC 1340 Softail Custom 58 CV, 42 kw 2cil. - FXST Bastidores: --- 1986
Harley Davidson FXSTC 1340 Softail Custom 58 CV, 42 kw 2cil. BKL FXST Bastidores: --- 1987-1989
Harley Davidson FXSTS 1340 Springer Softail 49 CV, 36 kw 2cil. BLL FXST Bastidores: --- 1990
Harley Davidson FXSTS 1340 Springer Softail 58 CV, 42 kw 2cil. BLL FXST Bastidores: --- 1988-1989
Harley Davidson FXWG 1340 Wide Glide 64 CV, 47 kw 2cil. - FXWG Bastidores: --- 1984-1985
Harley Davidson FXWG-80 1340 Wide Glide 57 CV, 42 kw 2cil. - FXWG Bastidores: --- 1983
Harley Davidson FXWG-80 1340 Wide Glide 67 CV, 49 kw 2cil. - FXWG Bastidores: --- 1980-1982
