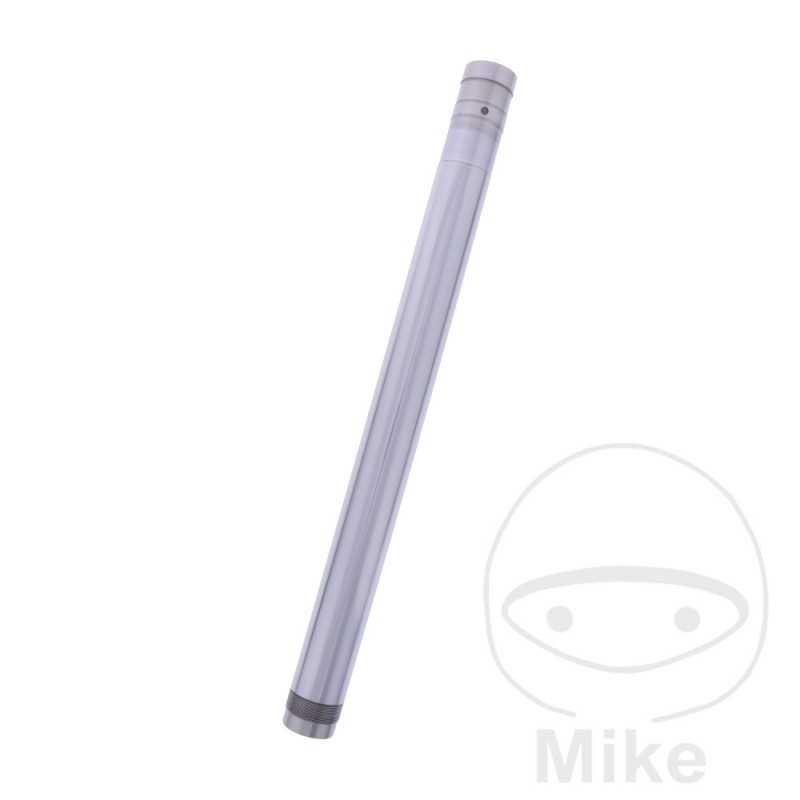

JMP Suspension fork tube UPSIDE-DOWN 773.08.01

JMP Fork Sleeves

- made with high quality raw material

- special chrome coating with low breaking torque

- each standpipe undergoes a quality inspection before delivery

- manufactured on the most modern CNC machines in Central Europe
INVERTED FORK (UPSIDE DOWN): YES
Diameter, outside: 43 mm
INSIDE DIAMETER: 39.7MM
LENGTH: 531MM
TOP CONNECTION: FEMALE FITTING
LOWER TERMINAL: MALE FITTING
THREAD: 43 X 1.25


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Suzuki TL 1000 R 135 CV, 99 kw 2cil. AM3212 W Bastidores: AM3212 henceforth0100001-AM3212 henceforth0100640 1998
Suzuki TL 1000 R 135 CV, 99 kw 2cil. AM3212 X Bastidores: AM3212 henceforth0100641-AM3212 henceforth0101416 1999
Suzuki TL 1000 R 98 CV, 72 kw 2cil. AM3212 W Bastidores: AM3212 henceforth0100001-AM3212 henceforth0100640 1998
Suzuki TL 1000 R 98 CV, 72 kw 2cil. AM3212 X Bastidores: AM3212 henceforth0100641-AM3212 henceforth0101416 1999
Suzuki TL 1000 S 125 CV, 92 kw 2cil. AG3115 V Bastidores: AG3115 henceforth0100001-- 1997
Suzuki TL 1000 S 125 CV, 92 kw 2cil. AG3215 W Bastidores: AG3215 henceforth0100001-AG3215 henceforth0100047 1998
Suzuki TL 1000 S 125 CV, 92 kw 2cil. AG3215 X Bastidores: AG3215 henceforth0100048-AG3215 henceforth0101167 1999
Suzuki TL 1000 S 125 CV, 92 kw 2cil. AG3215 Y Bastidores: AG3215 henceforth0101168-AG3215 henceforth0101377 2000
Suzuki TL 1000 S 98 CV, 72 kw 2cil. AG3115 V Bastidores: AG3115 henceforth0100001-- 1997
Suzuki TL 1000 S 98 CV, 72 kw 2cil. AG3215 W Bastidores: AG3215 henceforth0100001-AG3215 henceforth0100047 1998
Suzuki TL 1000 S 98 CV, 72 kw 2cil. AG3215 X Bastidores: AG3215 henceforth0100048-AG3215 henceforth0101167 1999
Suzuki TL 1000 S 98 CV, 72 kw 2cil. AG3215 Y Bastidores: AG3215 henceforth0101168-AG3215 henceforth0101377 2000
