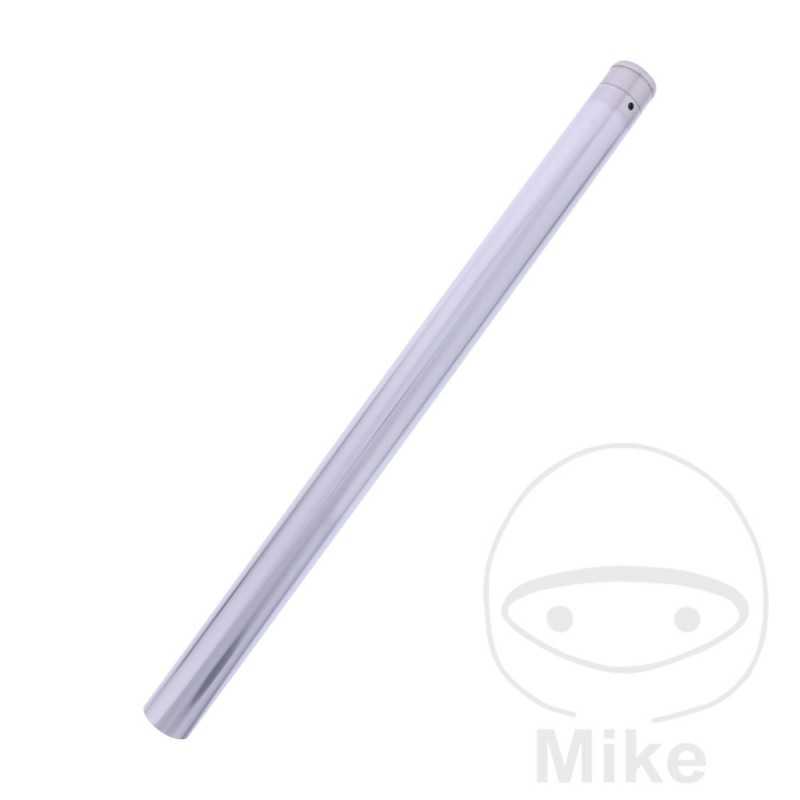

JMP Suspension fork tube 773.07.89

JMP fork tubes

- made with high quality raw material

- special chrome coating with low breaking torque

- each standpipe undergoes a quality inspection before delivery

- manufactured on the most modern CNC machines in Central Europe
INVERTED FORK (UPSIDE DOWN): NO
Diameter, outside: 43 mm
INSIDE DIAMETER: 38.4MM
LENGTH: 636MM
TOP CONNECTION: FEMALE FITTING
LOWER TERMINAL: WITHOUT THREAD
THREAD: 40 X 1.0


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Yamaha MT03 660 H 45 CV, 33 kw 1cil. RM021 5YK1 Bastidores: RM021 henceforth00051-- 2006
Yamaha MT03 660 H 45 CV, 33 kw 1cil. RM024 5YK2 Bastidores: RM024 henceforth00051-- 2007
Yamaha MT03 660 H 45 CV, 33 kw 1cil. RM024 5YK5 Bastidores: RM024 henceforth08001-- 2008
Yamaha MT03 660 H 48 CV, 35 kw 1cil. RM024 5YK7 Bastidores: RM024 henceforth25153-- 2009-2010
Yamaha MT03 660 H 48 CV, 35 kw 1cil. RM027 5YK9 Bastidores: RM027 henceforth00001-- 2011
Yamaha MT03 660 H 48 CV, 35 kw 1cil. RM051 2BF1 Bastidores: RM051 henceforth00597-- 2012-2014
Yamaha MT03 660 N 34 CV, 25 kw 1cil. RM022 5YK3 Bastidores: RM022 henceforth00301-- 2006
Yamaha MT03 660 N 34 CV, 25 kw 1cil. RM025 5YK4 Bastidores: RM025 henceforth00301-- 2007
Yamaha MT03 660 N 34 CV, 25 kw 1cil. RM025 5YK6 Bastidores: RM025 henceforth00501-- 2008
