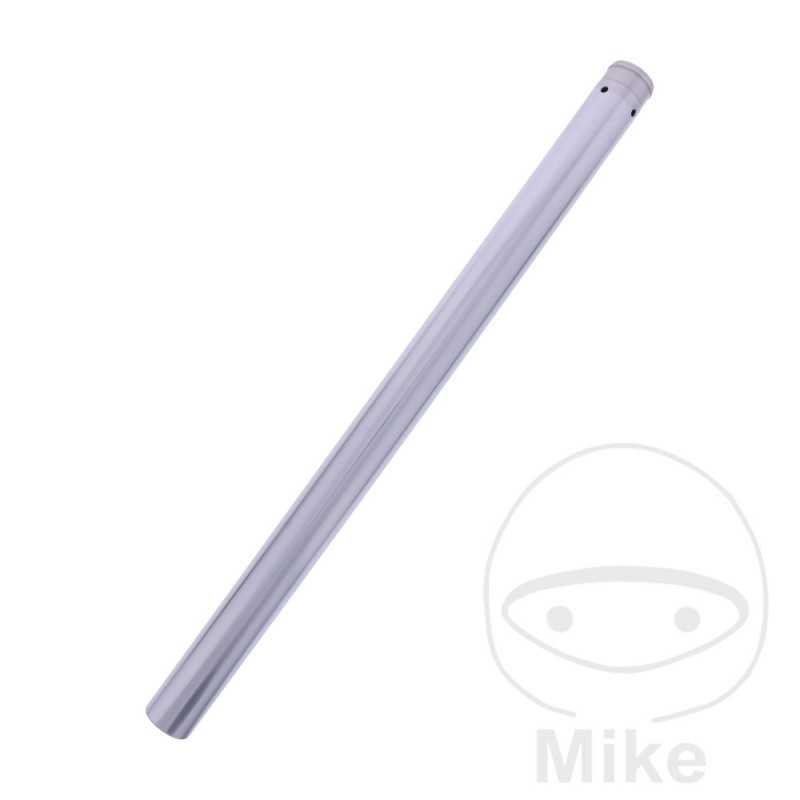

JMP Suspension fork tube 773.07.72

JMP fork tubes

- made with high quality raw material

- special chrome coating with low breaking torque

- each standpipe undergoes a quality inspection before delivery

- manufactured on the most modern CNC machines in Central Europe
INVERTED FORK (UPSIDE DOWN): NO
Diameter, outside: 43 mm
INNER DIAMETER: 38MM
LENGTH: 647MM
TOP CONNECTION: FEMALE FITTING
LOWER TERMINAL: WITHOUT THREAD
THREAD: 39 X 1.0


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Suzuki DL 650 A V-Strom ABS 67 CV, 49 kw 2cil. WVB11121 K7 Bastidores: B11121 henceforth0100001-B11121 henceforth0109035 2007
Suzuki DL 650 A V-Strom ABS 67 CV, 49 kw 2cil. WVB11121 K8 Bastidores: B11121 henceforth0109036-B11121 henceforth0115948 2008
Suzuki DL 650 A V-Strom ABS 67 CV, 49 kw 2cil. WVB11121 K9 Bastidores: B11121 henceforth0115949-B11121 henceforth0120463 2009
Suzuki DL 650 A V-Strom ABS 67 CV, 49 kw 2cil. WVB11121 L0 Bastidores: B11121 henceforth0120464-B11121 henceforth0126397 2010
Suzuki DL 650 A V-Strom ABS 67 CV, 49 kw 2cil. WVB11121 L1 Bastidores: B11121 henceforth0126398-- 2011
Suzuki DL 650 AU3 V-Strom ABS 34 CV, 25 kw 2cil. WVB12121 K7 Bastidores: B12121 henceforth0100001-B12121 henceforth0101151 2007
Suzuki DL 650 AU3 V-Strom ABS 34 CV, 25 kw 2cil. WVB12121 K8 Bastidores: B12121 henceforth0101152-B12121 henceforth0101394 2008
Suzuki DL 650 AUE V-Strom ABS 34 CV, 25 kw 2cil. WVB12121 K9 Bastidores: B12121 henceforth0101395-B12121 henceforth0101679 2009
Suzuki DL 650 AUE V-Strom ABS 34 CV, 25 kw 2cil. WVB12121 L0 Bastidores: B12121 henceforth0101670-B12121 henceforth0102329 2010
Suzuki DL 650 AUE V-Strom ABS 34 CV, 25 kw 2cil. WVB12121 L1 Bastidores: B12121 henceforth0102330-- 2011
Suzuki DL 650 U3 V-Strom 34 CV, 25 kw 2cil. WVB12111 K4 Bastidores: B12111 henceforth0100001-B12111 henceforth0101112 2004
Suzuki DL 650 U3 V-Strom 34 CV, 25 kw 2cil. WVB12111 K5 Bastidores: B12111 henceforth0101113-B12111 henceforth0103152 2005
Suzuki DL 650 U3 V-Strom 34 CV, 25 kw 2cil. WVB12111 K6 Bastidores: B12111 henceforth0103153-B12111 henceforth0104194 2006
Suzuki DL 650 U3 V-Strom 34 CV, 25 kw 2cil. WVB12111 K7 Bastidores: B12111 henceforth0104195-B12111 henceforth0105690 2007
Suzuki DL 650 U3 V-Strom 34 CV, 25 kw 2cil. WVB12111 K8 Bastidores: B12111 henceforth0105691-B12111 henceforth0106367 2008
Suzuki DL 650 UE V-Strom 34 CV, 25 kw 2cil. WVB12111 K9 Bastidores: B12111 henceforth0106368-B12111 henceforth0106633 2009
Suzuki DL 650 UE V-Strom 34 CV, 25 kw 2cil. WVB12111 L0 Bastidores: B12111 henceforth0106634-B12111 henceforth0107109 2010
Suzuki DL 650 V-Strom 67 CV, 49 kw 2cil. WVB11111 K4 Bastidores: B11111 henceforth0100001-B11111 henceforth0111056 2004
Suzuki DL 650 V-Strom 67 CV, 49 kw 2cil. WVB11111 K5 Bastidores: B11111 henceforth0111057-B11111 henceforth0122610 2005
Suzuki DL 650 V-Strom 67 CV, 49 kw 2cil. WVB11111 K6 Bastidores: B11111 henceforth0122611-B11111 henceforth0129413 2006
Suzuki DL 650 V-Strom 67 CV, 49 kw 2cil. WVB11111 K7 Bastidores: B11111 henceforth0129414-B11111 henceforth0136971 2007
Suzuki DL 650 V-Strom 67 CV, 49 kw 2cil. WVB11111 K8 Bastidores: B11111 henceforth0136972-B11111 henceforth0142055 2008
Suzuki DL 650 V-Strom 67 CV, 49 kw 2cil. WVB11111 K9 Bastidores: B11111 henceforth0142056-B11111 henceforth0144362 2009
Suzuki DL 650 V-Strom 67 CV, 49 kw 2cil. WVB11111 L0 Bastidores: B11111 henceforth0144363-B11111 henceforth0146062 2010
Suzuki DL 650 V-Strom 67 CV, 49 kw 2cil. WVB11111 L1 Bastidores: B11111 henceforth0146063-- 2011
