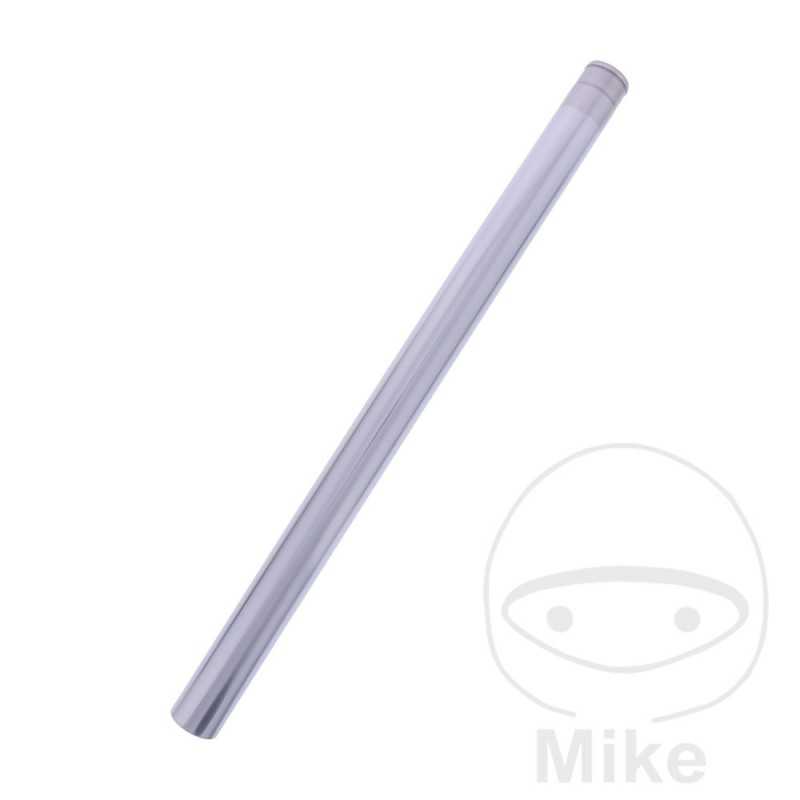

JMP Suspension fork tube 773.07.64

JMP fork tubes

- made with high quality raw material

- special chrome coating with low breaking torque

- each standpipe undergoes a quality inspection before delivery

- manufactured on the most modern CNC machines in Central Europe
INVERTED FORK (UPSIDE DOWN): NO
OUTER DIAMETER: 41MM
INSIDE DIAMETER: 36.3MM
LENGTH: 614MM
TOP CONNECTION: FEMALE FITTING
LOWER TERMINAL: WITHOUT THREAD
THREAD: 38 X 1.0


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Suzuki GSF 650 A Bandit ABS 78 CV, 57 kw 4cil. WVB51141 K5 Bastidores: B51411 henceforth0100001-B51141 henceforth0102288 2005
Suzuki GSF 650 A Bandit ABS 78 CV, 57 kw 4cil. WVB51141 K6 Bastidores: B51141 henceforth0102289-- 2006
Suzuki GSF 650 Bandit 78 CV, 57 kw 4cil. WVB51121 K5 Bastidores: B51121 henceforth0100001-B51121 henceforth0107993 2005
Suzuki GSF 650 Bandit 78 CV, 57 kw 4cil. WVB51121 K6 Bastidores: B51121 henceforth0107994-- 2006
Suzuki GSF 650 S Bandit 78 CV, 57 kw 4cil. WVB51111 K5 Bastidores: B51111 henceforth0100001-B51111 henceforth0105480 2005
Suzuki GSF 650 S Bandit 78 CV, 57 kw 4cil. WVB51111 K6 Bastidores: B51111 henceforth0105481-- 2006
Suzuki GSF 650 SA Bandit ABS 78 CV, 57 kw 4cil. WVB51131 K5 Bastidores: B51131 henceforth0100001-B51131 henceforth0104939 2005
Suzuki GSF 650 SA Bandit ABS 78 CV, 57 kw 4cil. WVB51131 K6 Bastidores: B51131 henceforth0104940-- 2006
Suzuki GSF 650 SU Bandit 34 CV, 25 kw 4cil. WVB52111 K5 Bastidores: B52111 henceforth0100001-B52111 henceforth0100013 2005
Suzuki GSF 650 SU Bandit 34 CV, 25 kw 4cil. WVB52111 K6 Bastidores: B52111 henceforth0100014-- 2006
Suzuki GSF 650 SUA Bandit ABS 34 CV, 25 kw 4cil. WVB52131 K5 Bastidores: B52131 henceforth0100001-B52131 henceforth0100040 2005
Suzuki GSF 650 SUA Bandit ABS 34 CV, 25 kw 4cil. WVB52131 K6 Bastidores: B52131 henceforth0100041-- 2006
Suzuki GSF 650 U Bandit 34 CV, 25 kw 4cil. WVB52121 K5 Bastidores: B52121 henceforth0100001-B52121 henceforth0100312 2005
Suzuki GSF 650 U Bandit 34 CV, 25 kw 4cil. WVB52121 K6 Bastidores: B52121 henceforth0100313-- 2006
Suzuki GSF 650 UA Bandit ABS 34 CV, 25 kw 4cil. WVB52141 K5 Bastidores: B52141 henceforth0100001-B52141 henceforth0100050 2005
Suzuki GSF 650 UA Bandit ABS 34 CV, 25 kw 4cil. WVB52141 K6 Bastidores: B52141 henceforth0100051-- 2006
