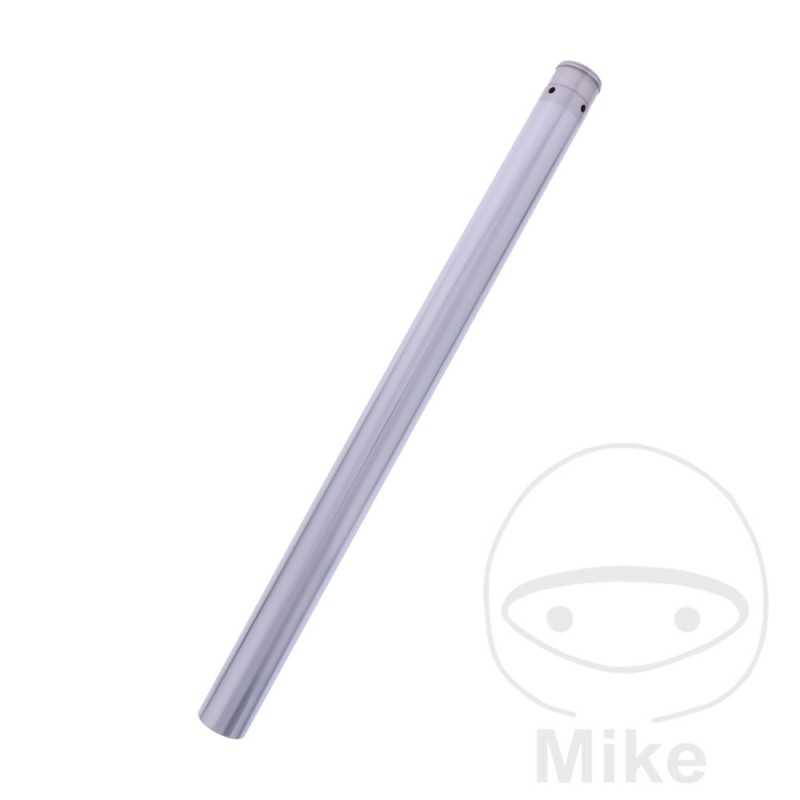

JMP Suspension fork tube 773.07.61

JMP fork tubes

- made with high quality raw material

- special chrome coating with low breaking torque

- each standpipe undergoes a quality inspection before delivery

- manufactured on the most modern CNC machines in Central Europe
INVERTED FORK (UPSIDE DOWN): NO
OUTER DIAMETER: 41MM
INSIDE DIAMETER: 36.3MM
LENGTH: 588MM
TOP CONNECTION: FEMALE FITTING
LOWER TERMINAL: WITHOUT THREAD
THREAD: 37 X 1.0


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Suzuki SV 650 72 CV, 53 kw 2cil. WVBY1111 K3 Bastidores: BY1111 henceforth0100001-BY1111 henceforth0106361 2003
Suzuki SV 650 72 CV, 53 kw 2cil. WVBY1111 K4 Bastidores: BY1111 henceforth0106362-BY1111 henceforth0108929 2004
Suzuki SV 650 72 CV, 53 kw 2cil. WVBY1111 K5 Bastidores: BY1111 henceforth0108930-BY1111 henceforth0110433 2005
Suzuki SV 650 72 CV, 53 kw 2cil. WVBY1111 K6 Bastidores: BY1111 henceforth0110434-BY1111 henceforth0111673 2006
Suzuki SV 650 72 CV, 53 kw 2cil. WVBY1111 K7 Bastidores: BY1111 henceforth0111674-BY1111 henceforth0112445 2007
Suzuki SV 650 72 CV, 53 kw 2cil. WVBY1111 K8 Bastidores: BY1111 henceforth0112446-BY1111 henceforth0113287 2008
Suzuki SV 650 72 CV, 53 kw 2cil. WVBY1111 K9 Bastidores: BY1111 henceforth0113288-- 2009
Suzuki SV 650 S 72 CV, 53 kw 2cil. WVBY1321 K3 Bastidores: BY1321 henceforth0100001-BY1321 henceforth0106875 2003
Suzuki SV 650 S 72 CV, 53 kw 2cil. WVBY1321 K4 Bastidores: BY1321 henceforth0106876-BY1321 henceforth0110275 2004
Suzuki SV 650 S 72 CV, 53 kw 2cil. WVBY1321 K5 Bastidores: BY1321 henceforth0110276-BY1321 henceforth0112390 2005
Suzuki SV 650 S 72 CV, 53 kw 2cil. WVBY1321 K6 Bastidores: BY1321 henceforth0112391-BY1321 henceforth0114477 2006
Suzuki SV 650 S 72 CV, 53 kw 2cil. WVBY1321 K7 Bastidores: BY1321 henceforth0114478-BY1321 henceforth0114922 2007
Suzuki SV 650 S 72 CV, 53 kw 2cil. WVBY1321 K8 Bastidores: BY1321 henceforth0114923-BY1321 henceforth0115496 2008
Suzuki SV 650 S 72 CV, 53 kw 2cil. WVBY1321 K9 Bastidores: BY1321 henceforth0115497-BY1321 henceforth0115790 2009
Suzuki SV 650 S 72 CV, 53 kw 2cil. WVBY1321 L0 Bastidores: BY1321 henceforth0115791-- 2010-2016
Suzuki SV 650 SU 34 CV, 25 kw 2cil. WVBY2221 K3 Bastidores: BY2221 henceforth0100001-BY2221 henceforth0102898 2003
Suzuki SV 650 SU 34 CV, 25 kw 2cil. WVBY2221 K4 Bastidores: BY2221 henceforth0102899-BY2221 henceforth0104300 2004
Suzuki SV 650 SU 34 CV, 25 kw 2cil. WVBY2221 K5 Bastidores: BY2221 henceforth0104301-BY2221 henceforth0106186 2005
Suzuki SV 650 SU 34 CV, 25 kw 2cil. WVBY2221 K6 Bastidores: BY2221 henceforth0106187-BY2221 henceforth0107332 2006
Suzuki SV 650 SU 34 CV, 25 kw 2cil. WVBY2221 K7 Bastidores: BY2221 henceforth0107333-BY2221 henceforth0108240 2007
Suzuki SV 650 SU 34 CV, 25 kw 2cil. WVBY2221 K8 Bastidores: BY2221 henceforth0108241-BY2221 henceforth0109065 2008
Suzuki SV 650 SU 34 CV, 25 kw 2cil. WVBY2221 K9 Bastidores: BY2221 henceforth0109066-BY2221 henceforth0109494 2009
Suzuki SV 650 SU 34 CV, 25 kw 2cil. WVBY2221 L0 Bastidores: BY2221 henceforth0109495-- 2010
Suzuki SV 650 U 34 CV, 25 kw 2cil. WVBY2111 K3 Bastidores: BY2111 henceforth0100001-BY2111 henceforth0100639 2003
Suzuki SV 650 U 34 CV, 25 kw 2cil. WVBY2111 K4 Bastidores: BY2111 henceforth0100640-BY2111 henceforth0101997 2004
Suzuki SV 650 U 34 CV, 25 kw 2cil. WVBY2111 K5 Bastidores: BY2111 henceforth0101996-BY2111 henceforth0103959 2005
Suzuki SV 650 U 34 CV, 25 kw 2cil. WVBY2111 K6 Bastidores: BY2111 henceforth0103960-BY2111 henceforth0105575 2006
Suzuki SV 650 U 34 CV, 25 kw 2cil. WVBY2111 K7 Bastidores: BY2111 henceforth0105576-BY2111 henceforth0106887 2007
Suzuki SV 650 U 34 CV, 25 kw 2cil. WVBY2111 K8 Bastidores: BY2111 henceforth0106888-BY2111 henceforth0107793 2008
Suzuki SV 650 U 34 CV, 25 kw 2cil. WVBY2111 K9 Bastidores: BY2111 henceforth0107794-- 2009
