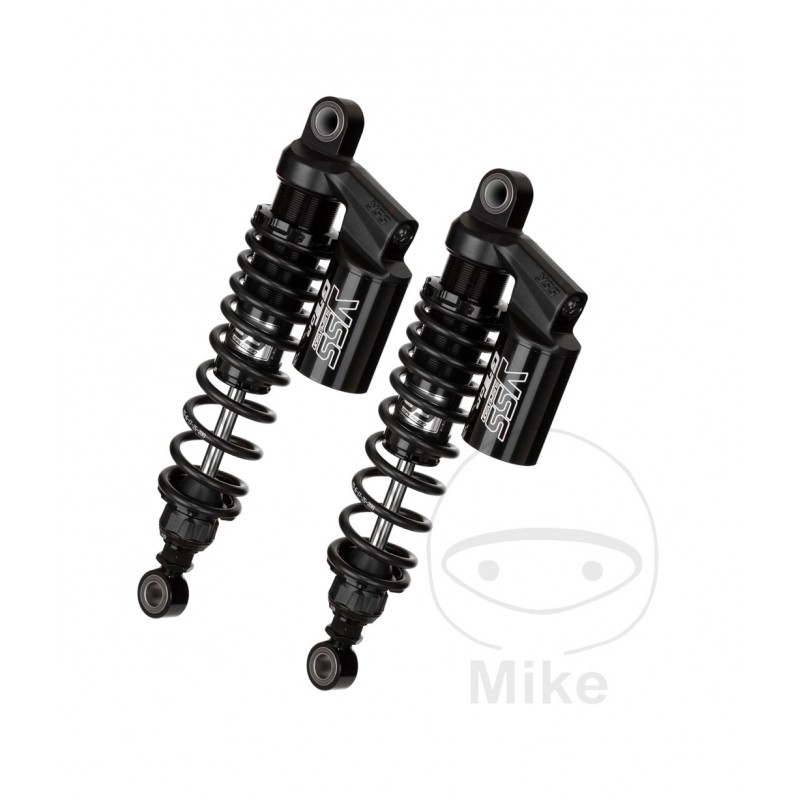

YSS SUSPENSION Adjustable Dual Shock Absorber 7894359

YSS Shock Absorbers - TOP LINE Series More ride comfort. More control. More quality.
The YSS TOP LINE series offers high-quality shock absorbers for all those who want to significantly improve their driving performance, whether for everyday use, long journeys, or sporty driving.
This series is synonymous with precise workmanship, modern technology and individual adjustment options - ideal for demanding riders and all those who value safety, comfort and style.
Product features: - High-quality gas pressure shock absorbers with fine-adjustable damping - Robust aluminum construction, CNC milled - Lightweight and durable - (depending on model) with external reservoir for consistent performance.
- Vehicle-specific design - easy assembly without additional adjustments
Areas of application: For scooters, motorcycles, and custom bikes – from city traffic to weekend twisties. TOP LINE shock absorbers get the best out of your suspension: noticeably more stable, more comfortable, and safer.
Note:
- The spring preload can be continuously adjusted (locked by a set screw).
- Bounce adjustment (30 clicks)
- Compression adjustment (30 clicks)
- The upper reservoir offers better temperature control, consistent damping performance, and higher working pressure.
- The shock absorber length can be adjusted by +-5mm
TYPE: GAS PRESSURE
UPPER FIXATION: EYE
INNER EYE DIAMETER: 14 MM
LENGTH: 335-345 MM
LOWER FIXATION: EYE
INNER EYE DIAMETER: 14 MM
ADJUSTMENTS: PRESSURE LEVEL, VARIABLE SPRING PRELOAD, LENGTH ADJUSTMENT +/- 5 MM, TENSILE LEVEL
SPRING CHARACTERISTIC: 20-30
SPRING LENGTH: 200 MM
SPRING DIAMETER: 46 MM
COMPENSATION DEPOSIT: YES
PISTON DIAMETER: 36 MM
PISTON ROD DIAMETER: 12 MM


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this item is compatible with the following makes, models and years:
COMPATIBLE WITH Moto Guzzi California 1000 III Llanta con radios 1987-1993
COMPATIBLE WITH Moto Guzzi California 1000 III llanta de fundición 1987-1993
COMPATIBLE WITH Moto Guzzi California 1000 III Carenato carenado 1988-1990
COMPATIBLE WITH Moto Guzzi California 1000 III Carenato Verkleidung Gussrad 1988-1990
COMPATIBLE WITH Moto Guzzi California 1000 III ie Llanta con radios 1990-1993
COMPATIBLE WITH Moto Guzzi California 1000 III ie llanta de fundición 1990-1993
COMPATIBLE WITH Moto Guzzi Le Mans 1000 Rueda delantera 18 pulgadas 1987-1988
COMPATIBLE WITH Moto Guzzi Le Mans 1000 1984-1986
COMPATIBLE WITH Moto Guzzi Le Mans 850 III 1981-1984
COMPATIBLE WITH Moto Guzzi Mille 1000 GT 1987-1994
COMPATIBLE WITH Moto Guzzi S 1000 1990-1993
COMPATIBLE WITH Moto Guzzi SP 1000 II 1984-1987
COMPATIBLE WITH Moto Guzzi SP 1000 III 1988-1996
