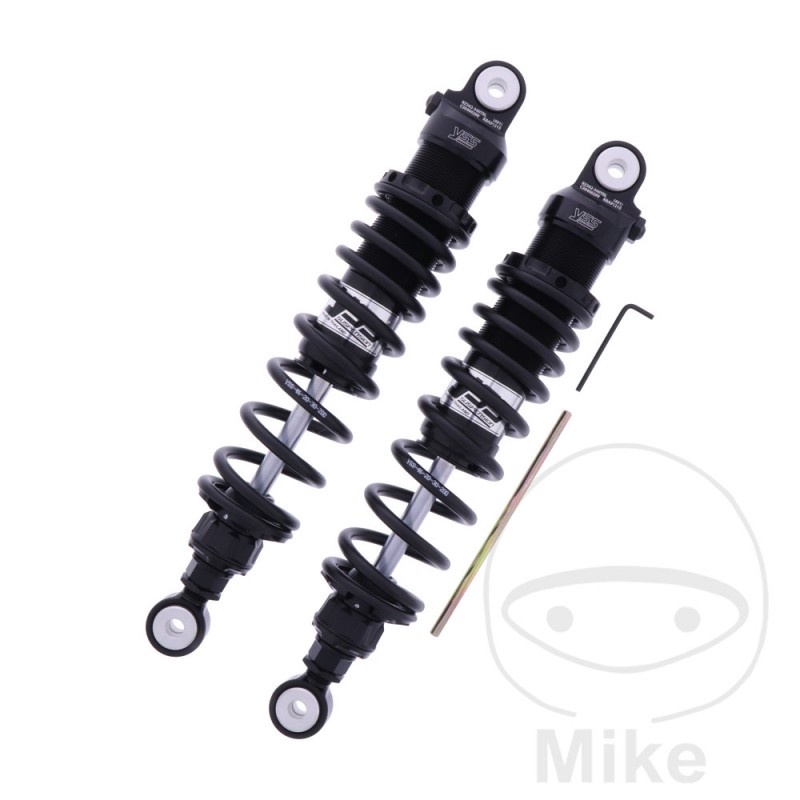

YSS SUSPENSION Rear double shock absorber adjustable 7893532

Milled aluminum body, adjustable spring preload and rebound shock (30 clicks).

The spring preload is locked by a set screw.

The length of the shock is adjustable by +-5 mm.

The adjustment tool is included in the scope of delivery.
TYPE: GAS PRESSURE
UPPER FIXATION: EYE
INNER EYE DIAMETER: 10 MM
LENGTH: 335
LOWER FIXATION: EYE
INNER EYE DIAMETER: 10 MM
ADJUSTMENTS: VARIABLE SPRING PRELOAD
SPRING FEATURE: 20
SPRING LENGTH: 200 MM
SPRING DIAMETER: 46 MM
COMPENSATION DEPOSIT: NO
PISTON DIAMETER: 36 MM
PISTON ROD DIAMETER: 12 MM


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
BMW R 100 /7 60 CV, 44 kw 2cil. 247 0323 Bastidores: 6 045 001-6 050 000 1977-1978
COMPATIBLE WITHBMW R 100 /7 60 CV, 44 kw 2cil. R100 0304 Bastidores: 6 040 001-6 045 000 1976
COMPATIBLE WITHBMW R 100 CS 70 CV, 51 kw 2cil. 247 0426 Bastidores: 6 135 001-6 140 000 1980-1984
COMPATIBLE WITHBMW R 100 RS 70 CV, 51 kw 2cil. 247 0325 Bastidores: 6 086 001-6 095 000 1978
COMPATIBLE WITHBMW R 100 RS 70 CV, 51 kw 2cil. 247 0377 Bastidores: 6 095 001-6 100 000 1979-1980
COMPATIBLE WITHBMW R 100 RS 70 CV, 51 kw 2cil. 247 0377 Bastidores: 6 223 001-6 224 000 1979-1980
COMPATIBLE WITHBMW R 100 RS 70 CV, 51 kw 2cil. 247 0427 Bastidores: 6 075 001-6 080 000 1981-1984
COMPATIBLE WITHBMW R 100 RS 70 CV, 51 kw 2cil. 247 0427 Bastidores: 6 390 001-6 397 000 1981-1984
COMPATIBLE WITHBMW R 100 RS 70 CV, 51 kw 2cil. R100 0306 Bastidores: 6 080 001-6 082 000 1976-1977
COMPATIBLE WITHBMW R 100 RS 70 CV, 51 kw 2cil. R100 0306 Bastidores: 6 082 501-6 086 000 1976-1977
COMPATIBLE WITHBMW R 100 RT 70 CV, 51 kw 2cil. 247 0386 Bastidores: 6 115 001-6 117 000 1978
COMPATIBLE WITHBMW R 100 RT 70 CV, 51 kw 2cil. 247 0386 Bastidores: 6 152 001-6 153 000 1979-1980
COMPATIBLE WITHBMW R 100 RT 70 CV, 51 kw 2cil. 247 0386 Bastidores: 6 155 001-6 160 000 1979-1980
COMPATIBLE WITHBMW R 100 RT 70 CV, 51 kw 2cil. 247 0386 Bastidores: 6 168 001-6 170 000 1979-1980
COMPATIBLE WITHBMW R 100 RT 70 CV, 51 kw 2cil. 247 0446 Bastidores: 6 230 001-6 240 000 1981-1984
COMPATIBLE WITHBMW R 100 S 65 CV, 48 kw 2cil. 247 0324 Bastidores: 6 065 001-6 070 000 1977-1978
COMPATIBLE WITHBMW R 100 S 65 CV, 48 kw 2cil. R100 0305 Bastidores: 6 060 001-6 065 000 1976
COMPATIBLE WITHBMW R 100 S 70 CV, 51 kw 2cil. 247 0376 Bastidores: 6 070 001-6 073 000 1979-1980
COMPATIBLE WITHBMW R 80 RT 50 CV, 37 kw 2cil. 247 0444 Bastidores: 6 420 001-6 425 000 1982-1984
COMPATIBLE WITHBMW R 90 S 67 CV, 49 kw 2cil. R90/S 0272 Bastidores: 4 070 001-4 080 000 1973-1974
COMPATIBLE WITHBMW R 90 S 67 CV, 49 kw 2cil. R90/S 0276 Bastidores: 4 080 001-4 090 000 1975
COMPATIBLE WITHBMW R 90 S 67 CV, 49 kw 2cil. R90/S 0284 Bastidores: 4 090 001-4 100 000 1976
