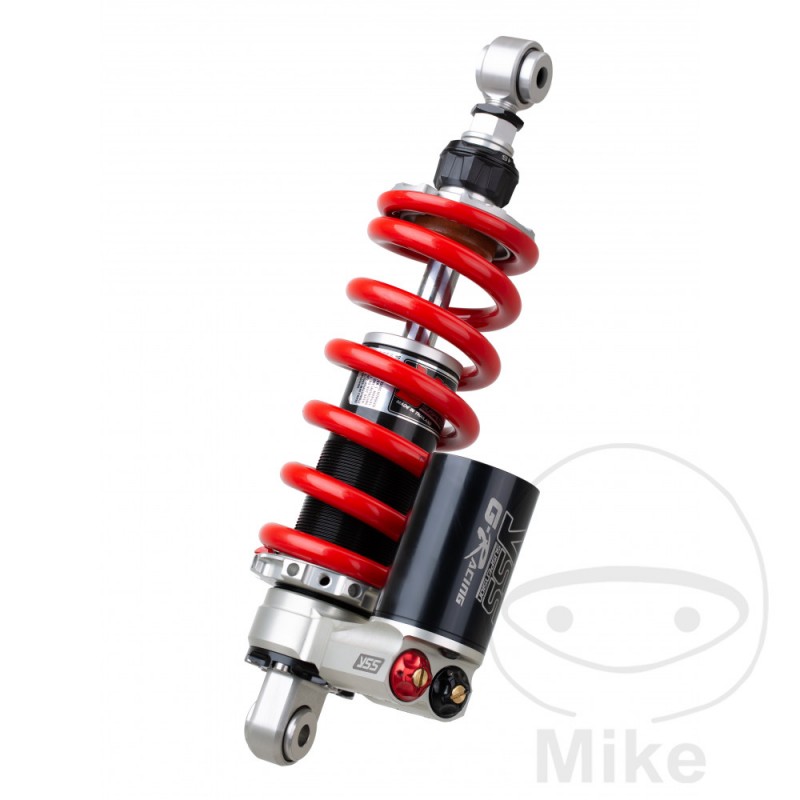

YSS SUSPENSION Adjustable mono shock absorber for motorcycle 7893559

Milled aluminum body, spring preload, rebound (30 clicks) and compression (high/low 30 clicks) adjustable.

The spring preload is locked by a set screw.

The length of the damper is adjustable by +-5mm.

The adjustment tool is included in the scope of delivery.
TYPE: GAS PRESSURE
UPPER FIXATION: EYE
INNER EYE DIAMETER: 10 MM
LENGTH: 325
LOWER FIXATION: EYE
INNER EYE DIAMETER: 10 MM
ADJUSTMENTS: PRESSURE LEVEL WITH HIGH / LOW ADJUSTMENT
SPRING CHARACTERISTIC: 100
SPRING LENGTH: 185 MM
SPRING DIAMETER: 56 MM
COMPENSATION DEPOSIT: NO
PISTON DIAMETER: 45 MM
PISTON ROD DIAMETER: 16 MM


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Yamaha MT09 900 MTN890 ABS 119 CV, 87,5 kw 3cil. RN691 B7N1 Bastidores: RN691 henceforth00301-- 2021
COMPATIBLE WITHYamaha MT09 900 MTN890 ABS 119 CV, 87,5 kw 3cil. RN691 B7NC Bastidores: --- 2022
COMPATIBLE WITHYamaha MT09 900 MTN890-U ABS 48 CV, 35 kw 3cil. RN831 BMR1 Bastidores: RN831 henceforth00304-- 2022
COMPATIBLE WITHYamaha MT09 900 MTN890-U ABS 95 CV, 70 kw 3cil. RN821 Bastidores: --- 2022
