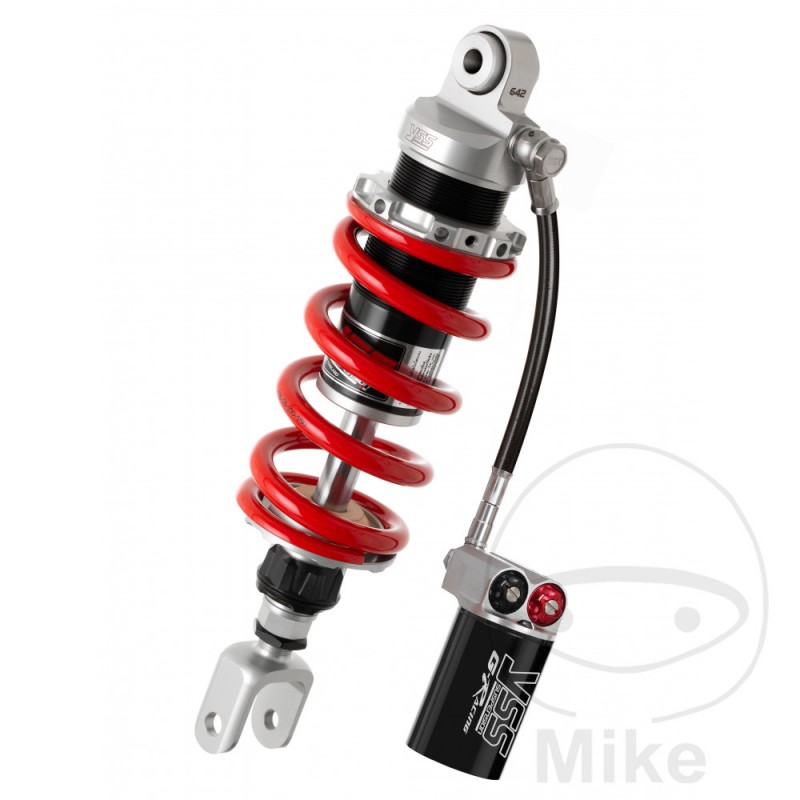

YSS SUSPENSION Adjustable mono shock absorber for motorcycle 7893548

Milled aluminum body, spring preload, rebound (30 clicks) and compression (high/low 30 clicks) adjustable.

The spring preload is locked by a set screw.

The length of the damper is adjustable by +-5mm.

The adjustment tool is included in the scope of delivery.
TYPE: GAS PRESSURE
UPPER FIXATION: EYE
INNER EYE DIAMETER: 10 MM
LENGTH: 305
LOWER FIXING: FORK
FORK WIDTH: 25 MM
ADJUSTMENTS: PRESSURE LEVEL WITH HIGH / LOW ADJUSTMENT
SPRING CHARACTERISTIC: 120
SPRING LENGTH: 150 MM
SPRING DIAMETER: 56 MM
COMPENSATION DEPOSIT: YES
PISTON DIAMETER: 45 MM
PISTON ROD DIAMETER: 16 MM


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Yamaha MT07 700 48 CV, 35 kw 2cil. RM047 1WS2 Bastidores: RM047 henceforth00301-- 2014
COMPATIBLE WITHYamaha MT07 700 48 CV, 35 kw 2cil. RM047 1WS8 Bastidores: RM047 henceforth00399-- 2014
COMPATIBLE WITHYamaha MT07 700 48 CV, 35 kw 2cil. RM047 1WS9 Bastidores: RM047 henceforth00321-- 2014
COMPATIBLE WITHYamaha MT07 700 48 CV, 35 kw 2cil. RM047 1WSC Bastidores: RM047 henceforth01568-- 2015
COMPATIBLE WITHYamaha MT07 700 48 CV, 35 kw 2cil. RM047 1WSJ Bastidores: RM047 henceforth01898-- 2016
COMPATIBLE WITHYamaha MT07 700 74,8 CV, 55 kw 2cil. RM041 1WS1 Bastidores: RM041 henceforth00301-- 2014
COMPATIBLE WITHYamaha MT07 700 74,8 CV, 55 kw 2cil. RM041 1WS6 Bastidores: RM041 henceforth00336-- 2014
COMPATIBLE WITHYamaha MT07 700 74,8 CV, 55 kw 2cil. RM041 1WS7 Bastidores: RM041 henceforth00406-- 2014
COMPATIBLE WITHYamaha MT07 700 74,8 CV, 55 kw 2cil. RM041 1WSB Bastidores: RM041 henceforth08736-- 2015
COMPATIBLE WITHYamaha MT07 700 74,8 CV, 55 kw 2cil. RM041 1WSH Bastidores: RM041 henceforth12729-- 2016
COMPATIBLE WITHYamaha MT07 700 A ABS 48 CV, 35 kw 2cil. RM048 1XB2 Bastidores: RM048 henceforth00301-- 2014
COMPATIBLE WITHYamaha MT07 700 A ABS 48 CV, 35 kw 2cil. RM048 1XB7 Bastidores: RM048 henceforth00401-- 2014
COMPATIBLE WITHYamaha MT07 700 A ABS 48 CV, 35 kw 2cil. RM048 1XB8 Bastidores: RM048 henceforth00371-- 2014
COMPATIBLE WITHYamaha MT07 700 A ABS 48 CV, 35 kw 2cil. RM048 1XBB Bastidores: RM048 henceforth02393-- 2015
COMPATIBLE WITHYamaha MT07 700 A ABS 48 CV, 35 kw 2cil. RM048 1XBJ Bastidores: RM048 henceforth03275-- 2016
COMPATIBLE WITHYamaha MT07 700 A ABS 74,8 CV, 55 kw 2cil. RM042 1XB1 Bastidores: RM042 henceforth00301-- 2014
COMPATIBLE WITHYamaha MT07 700 A ABS 74,8 CV, 55 kw 2cil. RM042 1XB5 Bastidores: RM042 henceforth00401-- 2014
COMPATIBLE WITHYamaha MT07 700 A ABS 74,8 CV, 55 kw 2cil. RM042 1XB6 Bastidores: RM042 henceforth00431-- 2014
COMPATIBLE WITHYamaha MT07 700 A ABS 74,8 CV, 55 kw 2cil. RM042 1XBA Bastidores: RM042 henceforth12174-- 2015
COMPATIBLE WITHYamaha MT07 700 A ABS 74,8 CV, 55 kw 2cil. RM042 1XBH Bastidores: RM042 henceforth21344-- 2016
COMPATIBLE WITHYamaha MT07 700 A Moto Cage ABS 48 CV, 35 kw 2cil. RM048 1XBE Bastidores: RM048 henceforth02376-- 2014-2017
COMPATIBLE WITHYamaha MT07 700 A Moto Cage ABS 74,8 CV, 55 kw 2cil. RM042 1XB9 Bastidores: --- 2014-2017
COMPATIBLE WITHYamaha MT07 700 Moto Cage 48 CV, 35 kw 2cil. - 1WSG Bastidores: --- 2014-2016
COMPATIBLE WITHYamaha MT07 700 Moto Cage 74,8 CV, 55 kw 2cil. RM041 1WSA Bastidores: RM041 henceforth07386-- 2014-2016
