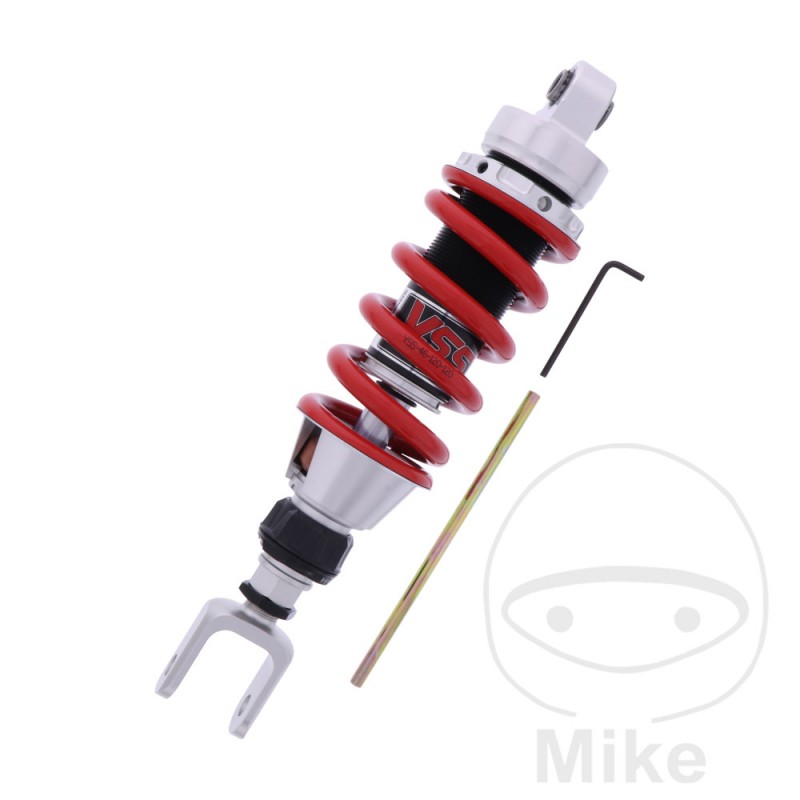

YSS SUSPENSION Adjustable mono shock absorber for motorcycle 7893531

Milled aluminum body, adjustable spring preload and rebound shock (30 clicks).

The spring preload is locked by a set screw.

The shock length is adjustable by +/-5mm.

The adjustment tool is included in the scope of delivery.
TYPE: GAS PRESSURE
UPPER FIXATION: EYE
INNER EYE DIAMETER: 10 MM
LENGTH: 280
LOWER FIXING: FORK
FORK WIDTH: 30 MM
ADJUSTMENTS: VARIABLE SPRING PRELOAD
SPRING CHARACTERISTIC: 120
SPRING LENGTH: 120 MM
SPRING DIAMETER: 46 MM
COMPENSATION DEPOSIT: NO
PISTON DIAMETER: 36 MM
PISTON ROD DIAMETER: 16 MM


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
SUZUKI GSX-R 125 A ABS 15 CV, 11 KW 1CIL. DL33AZ M0 BASTIDORES: DL33AZ-LJ100001-DL33AZ-LJ999999 2020
COMPATIBLE WITHSUZUKI GSX-R 125 RL ABS 15 CV, 11 KW 1CIL. DL33AZ L8 BASTIDORES: DL33AZ-JJ100001-DL33AZ-JJ199999 2017-2018
COMPATIBLE WITHSUZUKI GSX-R 125 RLX ABS 15 CV, 11 KW 1CIL. DL33AZ L8 BASTIDORES: DL33AZ-JJ100001-DL33AZ-JJ199999 2017-2018
COMPATIBLE WITHSUZUKI GSX-R 125 RLX ABS 15 CV, 11 KW 1CIL. DL33EZ M3 BASTIDORES: DL32EZPJ-100001-DL32EZPJ-999999 2022-2023
COMPATIBLE WITHSUZUKI GSX-R 125 RLZ ABS 15 CV, 11 KW 1CIL. DL33AZ M1 BASTIDORES: DL33AZ-MJ100001-DL33AZ-MJ999999 2021
COMPATIBLE WITHSUZUKI GSX-R 125 XA ABS 15 CV, 11 KW 1CIL. DL33AZ L9 BASTIDORES: DL33AZ-KJ100001-DL33AZ-KJ199999 2019
COMPATIBLE WITHSUZUKI GSX-R 125 XA ABS 15 CV, 11 KW 1CIL. DL33AZ M1 BASTIDORES: DL33AZ-MJ100001-DL33AZ-MJ999999 2021
COMPATIBLE WITHSUZUKI GSX-S 125 ML ABS 15 CV, 11 KW 1CIL. DL32AZ L8 BASTIDORES: DL32AZ-JJ100001-DL32AZ-JJ199999 2017-2018
COMPATIBLE WITHSUZUKI GSX-S 125 MLX ABS 15 CV, 11 KW 1CIL. DL32AZ L8 BASTIDORES: DL32AZ-JJ100001-DL32AZ-JJ199999 2017-2018
COMPATIBLE WITHSUZUKI GSX-S 125 RLX ABS 15 CV, 11 KW 1CIL. DL31EZ M3 BASTIDORES: DL32EZPJ1 henceforth0001-DL32EZPJ-999999 2022-2023
COMPATIBLE WITHSUZUKI GSX-S 125 XA ABS 15 CV, 11 KW 1CIL. DL32AZ L9 BASTIDORES: DL32AZ-KJ100001-DL32AZ-KJ999999 2019
COMPATIBLE WITHSUZUKI GSX-S 125 XA ABS 15 CV, 11 KW 1CIL. DL32AZ M0 BASTIDORES: DL32AZ-LJ100001-DL32AZ-LJ999999 2020
COMPATIBLE WITHSUZUKI GSX-S 125 XA ABS 15 CV, 11 KW 1CIL. DL32AZ M1 BASTIDORES: DL33AZMJ-100001-DL33AZMJ-999999 2021
