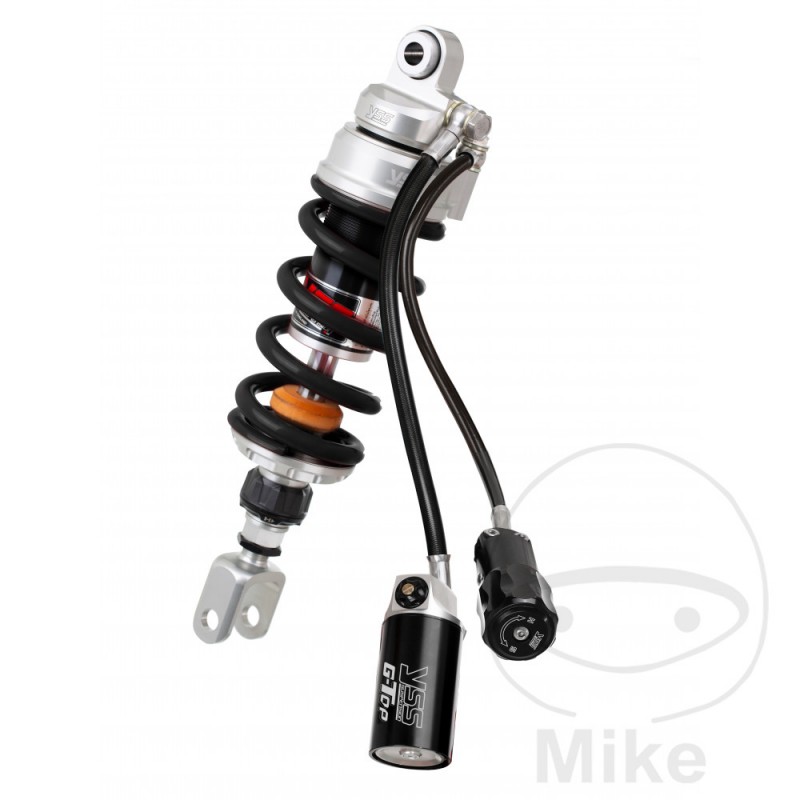

YSS SUSPENSION Adjustable mono shock absorber for motorcycle 7893516

Milled aluminum body, hydraulically adjustable shock absorber for spring preload, rebound (30 clicks) and compression (30 clicks).

The spring preload adjustment is connected to the shock via an easy-access hose.

The length of the damper is adjustable by +-5mm.
TYPE: GAS PRESSURE
UPPER FIXATION: EYE
INNER EYE DIAMETER: 12 MM
LENGTH: 325
LOWER FIXING: FORK
FORK WIDTH: 30 MM
SETTINGS: PRESSURE LEVEL
SPRING CHARACTERISTIC: 100
SPRING LENGTH: 150 MM
SPRING DIAMETER: 56 MM
COMPENSATION DEPOSIT: YES
PISTON DIAMETER: 45 MM
PISTON ROD DIAMETER: 16 MM


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Yamaha XP 530 SX TMax ABS 46 CV, 33,8 kw 2cil. SJ142 BX31 Bastidores: SJ142 henceforth00301-- 2017
COMPATIBLE WITHYamaha XP 530 SX TMax ABS 46 CV, 33,8 kw 2cil. SJ142 BX38 Bastidores: SJ142 henceforth07425-- 2018
COMPATIBLE WITHYamaha XP 530 SX TMax ABS 46 CV, 33,8 kw 2cil. SJ142 BX3D Bastidores: SJ142 henceforth09818-- 2019
COMPATIBLE WITHYamaha XP 530 SX TMax Sport Edition ABS 46 CV, 33,8 kw 2cil. - Bastidores: --- 2019-2020
COMPATIBLE WITHYamaha XP 560 Tmax ABS 48 CV, 35 kw 2cil. - Bastidores: --- 2023
COMPATIBLE WITHYamaha XP 560 Tmax ABS 48 CV, 35 kw 2cil. SJ181 B3T1 Bastidores: SJ181 henceforth00301-- 2020
COMPATIBLE WITHYamaha XP 560 Tmax ABS 48 CV, 35 kw 2cil. SJ18F BBV1 Bastidores: ASJ18F henceforth00329-- 2022
COMPATIBLE WITHYamaha XP 560 Tmax XP560D-A-ABS 48 CV, 35 kw 2cil. SJ18D B7ME Bastidores: SJ18D henceforth00301-- 2021
