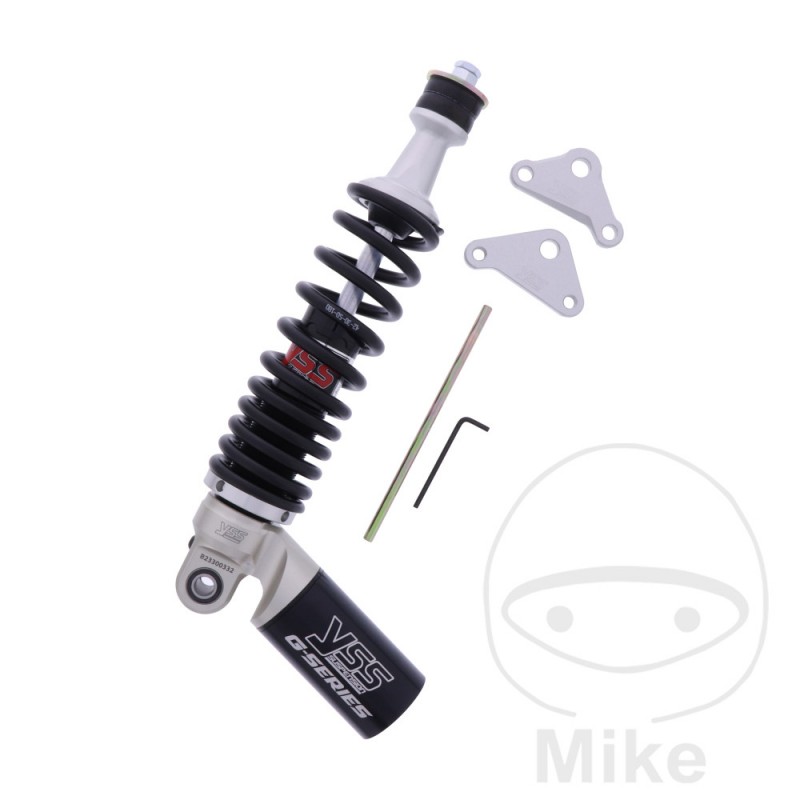

YSS SUSPENSION Adjustable mono shock absorber for motorcycle 7893508

Milled aluminum body, adjustable spring preload.

The spring preload is locked by a set screw.

The adjustment tool is included in the scope of delivery.
TYPE: GAS PRESSURE
UPPER FIXING: BOLT
BOLT DIAMETER: 10 MM
LENGTH: 275MM
LOWER FIXATION: EYE
INNER EYE DIAMETER: 10 MM
ADJUSTMENTS: VARIABLE SPRING PRELOAD
SPRING FEATURE: 30
SPRING LENGTH: 180 MM
SPRING DIAMETER: 42 MM
COMPENSATION DEPOSIT: YES
PISTON DIAMETER: 30 MM
PISTON ROD DIAMETER: 12 MM


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
VESPA ET4 125 LEADER 11 CV, 8 KW 1CIL. M19000 BASTIDORES: ZAPM19000--- 2000-2005
COMPATIBLE WITHVESPA LX 125 10,3 CV, 7,6 KW 1CIL. M44100 BASTIDORES: ZAPM44100 henceforth0001001-ZAPM44100 henceforth0031637 2005-2007
COMPATIBLE WITHVESPA LX 125 10,3 CV, 7,6 KW 1CIL. M44300 BASTIDORES: ZAPM44300 henceforth0001001-- 2008-2009
COMPATIBLE WITHVESPA LX 125 2V IE 10,7 CV, 7,9 KW 1CIL. M68100 BASTIDORES: ZAPM68100 henceforth0001001-- 2010-2013
COMPATIBLE WITHVESPA LX 125 2V IE TOURING 10,7 CV, 7,9 KW 1CIL. M68100 BASTIDORES: ZAPM68100 henceforth0001001-- 2010-2013
COMPATIBLE WITHVESPA LX 125 3V IE 10,7 CV, 7,9 KW 1CIL. M68300 BASTIDORES: ZAPM68300 henceforth0001001-- 2012-2014
COMPATIBLE WITHVESPA LX 125 3V IE TOURING 10,7 CV, 7,9 KW 1CIL. M68300 BASTIDORES: ZAPM68300 henceforth0001001-- 2012-2014
COMPATIBLE WITHVESPA LX 150 11,7 CV, 8,6 KW 1CIL. M44200 BASTIDORES: ZAPM44200 henceforth0001001-- 2005-2006
COMPATIBLE WITHVESPA LX 150 11,7 CV, 8,6 KW 1CIL. M44400 BASTIDORES: ZAPM44400 henceforth0001001-ZAPM44400 henceforth0022621 2006-2008
COMPATIBLE WITHVESPA LX 150 2V IE 12,1 CV, 8,9 KW 1CIL. M68200 BASTIDORES: ZAPM68200 henceforth0001001-- 2009-2012
COMPATIBLE WITHVESPA LX 150 2V IE TOURING 12,1 CV, 8,9 KW 1CIL. M68100 BASTIDORES: ZAPM68100 henceforth0001001-- 2010-2012
COMPATIBLE WITHVESPA LXV 125 10,4 CV, 7,65 KW 1CIL. M44301 BASTIDORES: ZAPM44301 henceforth0001001-- 2007-2009
COMPATIBLE WITHVESPA LXV 125 IE 10,7 CV, 7,9 KW 1CIL. M68102 BASTIDORES: ZAPM68102 henceforth0001001-- 2010-2013
COMPATIBLE WITHVESPA LXV 125 IE VIE DELLA MODA 10,7 CV, 7,9 KW 1CIL. M68102 BASTIDORES: ZAPM68102 henceforth0001001-- 2012-2013
COMPATIBLE WITHVESPA S 125 10,4 CV, 7,7 KW 1CIL. M44302 BASTIDORES: ZAPM44302 henceforth0001001-- 2007-2009
COMPATIBLE WITHVESPA S 125 2V IE /COLLEGE 10,7 CV, 7,9 KW 1CIL. M68101 BASTIDORES: ZAPM68101 henceforth0001001-- 2010-2014
COMPATIBLE WITHVESPA S 125 3V IE 11,6 CV, 8,5 KW 1CIL. M68301 BASTIDORES: ZAPM68301 henceforth0001001-- 2012-2014
