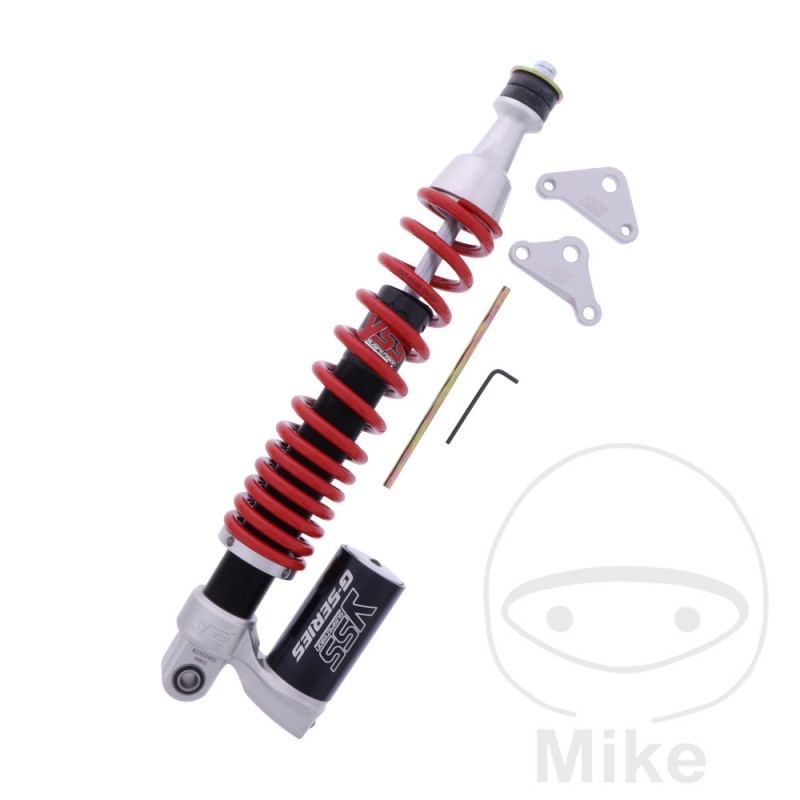

YSS SUSPENSION Adjustable mono shock absorber for motorcycle 7893500

Milled aluminum body, adjustable spring preload.

The spring preload is locked by a set screw.

The adjustment tool is included in the scope of delivery.
TYPE: GAS PRESSURE
UPPER FIXING: BOLT
BOLT DIAMETER: 10 MM
LENGTH: 400MM
LOWER FIXATION: EYE
INNER EYE DIAMETER: 10 MM
ADJUSTMENTS: VARIABLE SPRING PRELOAD
SPRING FEATURE: 30
SPRING LENGTH: 250 MM
SPRING DIAMETER: 42 MM
COMPENSATION DEPOSIT: YES
PISTON DIAMETER: 30 MM
PISTON ROD DIAMETER: 12 MM


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
VESPA PRIMAVERA 125 3V IE IGET ABS 10,7 CV, 7,9 KW 1CIL. MA1100 BASTIDORES: ZAPMA1100 henceforth0001001-- 2016-2019
COMPATIBLE WITHVESPA PRIMAVERA 125 3V IE IGET ANNIVERSARIO ABS 10,7 CV, 7,9 KW 1CIL. MA1100 BASTIDORES: ZAPMA1100 henceforth0001001-- 2018-2019
COMPATIBLE WITHVESPA PRIMAVERA 125 3V IE IGET TOURING ABS 10,7 CV, 7,9 KW 1CIL. MA1100 BASTIDORES: ZAPMA1100 henceforth0001001-- 2016-2019
COMPATIBLE WITHVESPA PRIMAVERA 125 3V IE IGET YACHT CLUB ABS 10,7 CV, 7,9 KW 1CIL. MA1100 BASTIDORES: ZAPMA1100 henceforth0001001-- 2018-2019
COMPATIBLE WITHVESPA PRIMAVERA 125 S 3V IE IGET ABS 10,7 CV, 7,9 KW 1CIL. MA1100 BASTIDORES: ZAPMA1100 henceforth0001001-- 2019
COMPATIBLE WITHVESPA SPRINT 125 3V IE IGET ABS 10,7 CV, 7,9 KW 1CIL. MA1300 BASTIDORES: ZAPMA1300 henceforth0001001-- 2017-2019
COMPATIBLE WITHVESPA SPRINT 125 3V IE IGET NOTTE ABS 10,7 CV, 7,9 KW 1CIL. MA1300 BASTIDORES: ZAPMA1300 henceforth0001001-- 2017-2019
COMPATIBLE WITHVESPA SPRINT 125 S 3V IE IGET ABS 10,7 CV, 7,9 KW 1CIL. MA1300 BASTIDORES: ZAPMA1300 henceforth0001001-- 2017-2019
COMPATIBLE WITHVESPA SPRINT 150 IE 3V S IGET ABS 12,9 CV, 9,5 KW 1CIL. MA1400 BASTIDORES: --- 2017-2020
