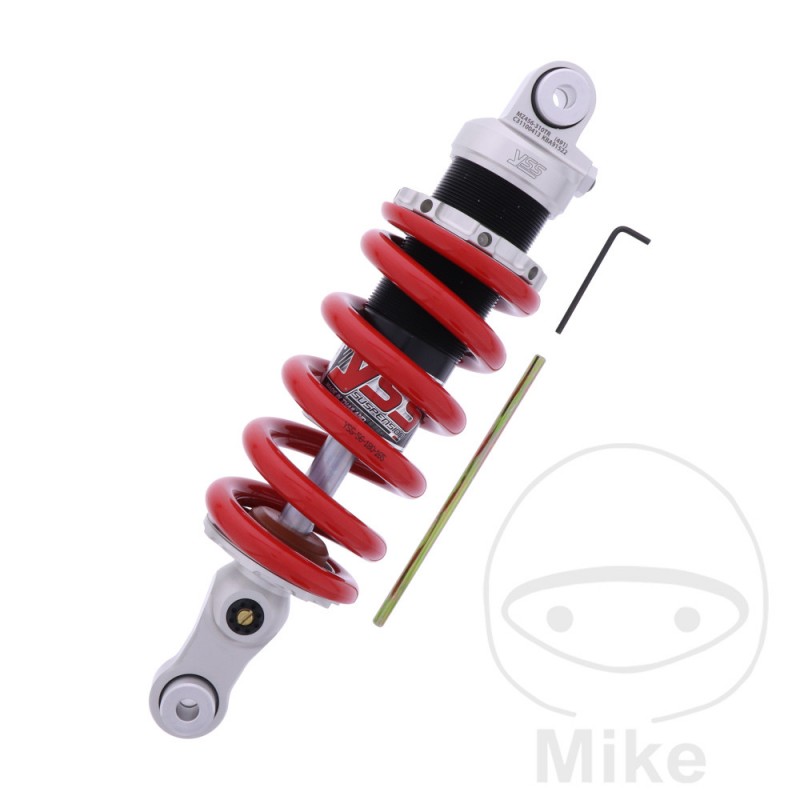

YSS SUSPENSION Adjustable mono shock absorber for motorcycle 7891929

Milled aluminum body, adjustable spring preload and rebound suspension strut (30 clicks).

The spring preload is locked by a threaded pin.

The length of the damper is adjustable by + -5 mm.

The adjustment tool is included in the scope of delivery.
TYPE: GAS PRESSURE
UPPER FIXATION: EYE
INNER EYE DIAMETER: 10 MM
LENGTH: 310MM
LOWER FIXATION: EYE
INNER EYE DIAMETER: 10 MM
ADJUSTMENTS: VARIABLE SPRING PRELOAD
SPRING FEATURE: 180
SPRING LENGTH: 165 MM
SPRING DIAMETER: 56 MM
COMPENSATION DEPOSIT: NO
PISTON DIAMETER: 45 MM
PISTON ROD DIAMETER: 16 MM


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
HONDA NC 750 XA ABS 48 CV, 35 KW 2CIL. RC90C J BASTIDORES: JH2 RC90C-JK000001-- 2018
COMPATIBLE WITHHONDA NC 750 XA ABS 55 CV, 40,3 KW 2CIL. RC72B E BASTIDORES: JH2 RC72B-EK000001-- 2014-2015
COMPATIBLE WITHHONDA NC 750 XA ABS 55 CV, 40,3 KW 2CIL. RC90A G BASTIDORES: JH2 RC90A-GK000001-JH2 RC90A-GK099999 2016
COMPATIBLE WITHHONDA NC 750 XA ABS 55 CV, 40,3 KW 2CIL. RC90A H BASTIDORES: JH2 RC90A-HK100001-JH2 RC90A-HK199999 2017
COMPATIBLE WITHHONDA NC 750 XA ABS 55 CV, 40,5 KW 2CIL. RC90A J BASTIDORES: JH2 RC90A-JK200001-- 2018
COMPATIBLE WITHHONDA NC 750 XD DCT ABS 48 CV, 35 KW 2CIL. RC90D J BASTIDORES: JH2 RC90D-JK000001-- 2018
COMPATIBLE WITHHONDA NC 750 XD DCT ABS 55 CV, 40,3 KW 2CIL. RC72C E BASTIDORES: JH2 RC72C-EK000001-- 2014-2015
COMPATIBLE WITHHONDA NC 750 XD DCT ABS 55 CV, 40,3 KW 2CIL. RC72D E BASTIDORES: JH2 RC72D-EK000001-- 2014-2015
COMPATIBLE WITHHONDA NC 750 XD DCT ABS 55 CV, 40,3 KW 2CIL. RC90B G BASTIDORES: JH2 RC90B-GK000001-JH2 RC90B-GK099999 2016
COMPATIBLE WITHHONDA NC 750 XD DCT ABS 55 CV, 40,3 KW 2CIL. RC90B H BASTIDORES: JH2 RC90B-HK100001-JH2 RC90B-HK199999 2017
COMPATIBLE WITHHONDA NC 750 XD DCT ABS 55 CV, 40,5 KW 2CIL. RC90B J BASTIDORES: JH2 RC90B-JK200001-- 2018
