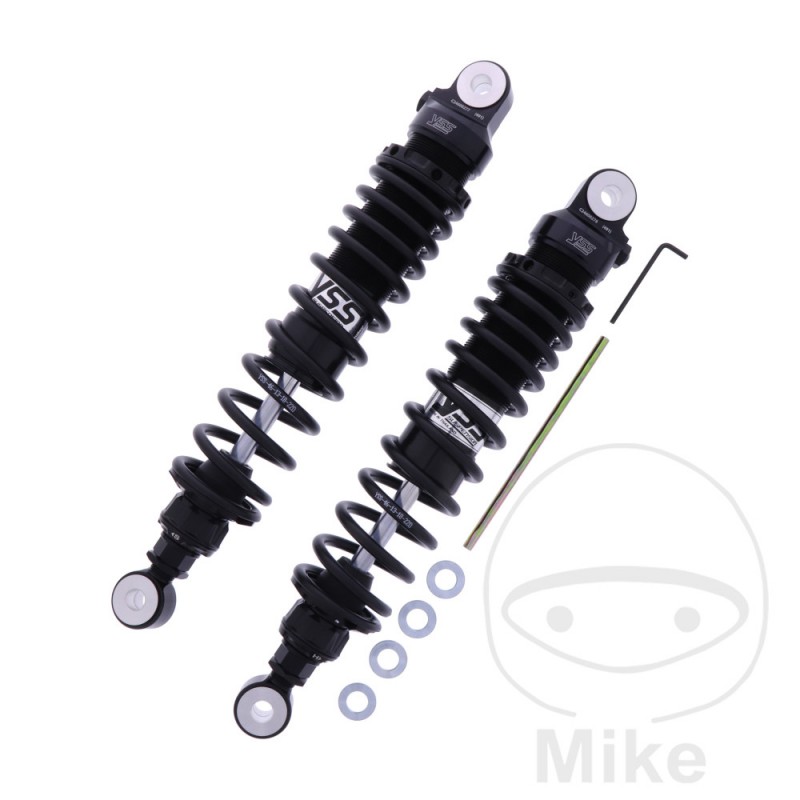

YSS SUSPENSION Rear double shock absorber adjustable 789.35.14

Milled aluminum body, adjustable spring preload and rebound shock (30 clicks).

The spring preload is locked by a set screw.

The length of the shock is adjustable by +-5 mm.

The adjustment tool is included in the scope of delivery.
TYPE: GAS PRESSURE
UPPER FIXATION: EYE
INNER EYE DIAMETER: 12 MM
LENGTH: 345
LOWER FIXATION: EYE
INNER EYE DIAMETER: 12 MM
ADJUSTMENTS: VARIABLE SPRING PRELOAD
SPRING CHARACTERISTICS: 13
SPRING LENGTH: 220 MM
SPRING DIAMETER: 46 MM
COMPENSATION DEPOSIT: NO
PISTON DIAMETER: 36 MM
PISTON ROD DIAMETER: 12 MM


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Moto Guzzi V7 750 III ie Carbon ABS 48 CV, 35 kw 2cil. LDG00 Bastidores: --- 2018-2020
Moto Guzzi V7 750 III ie Carbon ABS 52 CV, 38 kw 2cil. LDG00 Bastidores: --- 2018-2020
Moto Guzzi V7 750 III ie Limited ABS 48 CV, 35 kw 2cil. LDH00 Bastidores: --- 2018-2020
Moto Guzzi V7 750 III ie Limited ABS 52 CV, 38 kw 2cil. LDH00 Bastidores: --- 2018-2020
Moto Guzzi V7 750 III ie Milano ABS 48 CV, 35 kw 2cil. LDM00 Bastidores: --- 2018-2019
Moto Guzzi V7 750 III ie Milano ABS 52 CV, 38 kw 2cil. LDM00 Bastidores: --- 2018-2019
Moto Guzzi V7 750 III ie Rough ABS 48 CV, 35 kw 2cil. LDM00 Bastidores: --- 2018-2020
Moto Guzzi V7 750 III ie Rough ABS 52 CV, 38 kw 2cil. LDM00 Bastidores: --- 2018-2020
Moto Guzzi V7 750 III ie Stone ABS 48 CV, 35 kw 2cil. LD000 Bastidores: --- 2017-2018
Moto Guzzi V7 750 III ie Stone ABS 48 CV, 35 kw 2cil. LD000/KV001 Bastidores: --- 2019
Moto Guzzi V7 750 III ie Stone ABS 52 CV, 38 kw 2cil. LD000 Bastidores: --- 2017-2018
Moto Guzzi V7 750 III ie Stone ABS 52 CV, 38 kw 2cil. LD000/KV001 Bastidores: --- 2019
Moto Guzzi V7 750 III ie Stone Night Pack ABS 48 CV, 35 kw 2cil. LDK00/KVK Bastidores: --- 2019-2020
Moto Guzzi V7 750 III ie Stone Night Pack ABS 52 CV, 38 kw 2cil. LDK00/KVK Bastidores: --- 2019-2020
Moto Guzzi V7 750 Spezial 45 CV, 33 kw 2cil. VM Bastidores: VM 00 AA-VM 25 EP 1969-1971
Moto Guzzi V9 850 ie Bobber ABS 48 CV, 35 kw 2cil. LHE00 Bastidores: --- 2017
Moto Guzzi V9 850 ie Bobber ABS 48 CV, 35 kw 2cil. LHH00 Bastidores: --- 2018-2019
Moto Guzzi V9 850 ie Bobber ABS 55 CV, 40 kw 2cil. LHA00 Bastidores: --- 2016
Moto Guzzi V9 850 ie Bobber ABS 55 CV, 40 kw 2cil. LHE00 Bastidores: --- 2017
Moto Guzzi V9 850 ie Bobber ABS 55 CV, 40 kw 2cil. LHH00 Bastidores: --- 2018-2019
Moto Guzzi V9 850 ie Roamer ABS 48 CV, 35 kw 2cil. LHB00 Bastidores: --- 2017
Moto Guzzi V9 850 ie Roamer ABS 55 CV, 40 kw 2cil. LHB00 Bastidores: --- 2017
